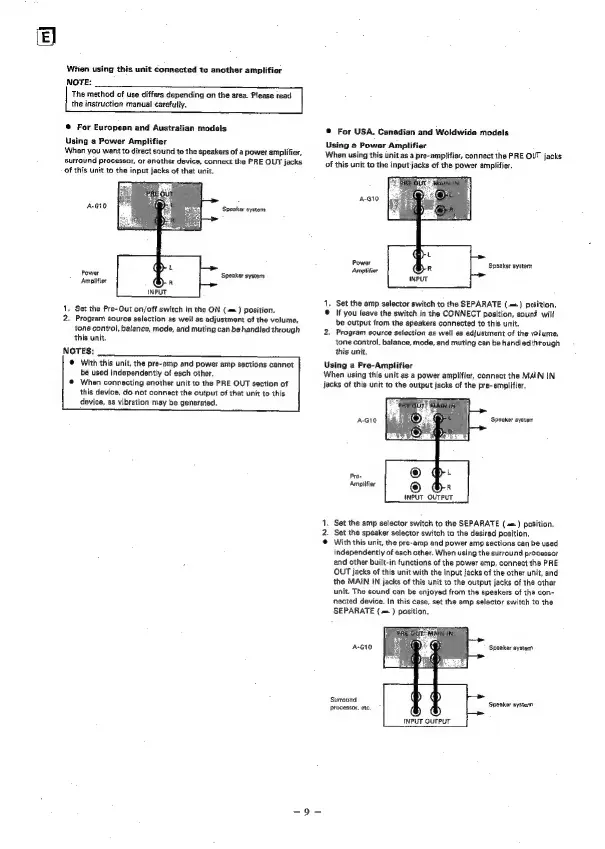

When
using
this
unit
connected
to
another
amy
NOTE:
The
method
of
use
differs
depending
on
the
area.
Please
read
the
instruction
manual
carefully.
©
For
European
and
Australian
models
Using
a
Power
Amplifier
When
you
want
to
direct
sound
to
the
speakers
of
a
power
amplifier,
surround
processor,
ar
another
device,
connect
the
PRE
OUT
jacks
of
this
unit
to
the
input
jacks
of
that
unit.
AG10
Power
‘Speaker
system
Amplifier
1,
Set
the
Pre-Out
on/off
switch
in
the
ON
(==)
position.
2,
Program
source
selection
as
weil
as
adjustment
of
the
volume,
tone
control,
balance,
mode,
and
muting
can
be
handled
through
this
unit.
NOTES:
©
With
this
unit,
the
pre-amp
and
power
amp
sections
cannot
be
used
independently
of
each
other.
@
When
connecting
another
unit
to
the
PRE
OUT
section
of
this
device,
do
not
connect
the
output
of
that
unit
to
this
device,
as
vibration
may
be
generated.
®@
For
USA,
Canadian
and
Woldwide
models
Using
a
Power
Amplifier
When
using
this
unit
as
a
pre-amplifier,
connect
the
PRE
OUT
jacks
of
this
unit
to
the
input
jacks
of
the
power
amplifier.
AG10
Speaker
system
»
Set
the
amp
selector
switch
to
the
SEPARATE
(=)
position,
©
If
you
leave
the
switch
in
the
CONNECT
position,
sound
will
‘be
output
from
the
speakers
connected
to
this
unit.
2.
Program
source
selection
as
well
as
adjustment
of
the
volume,
tone
control,
balance,
mode,
and
muting
can
be
handled
through
this
uniz,
Using
a
Pre-Amplifier
When
using
this
unit
as
a
power
amplifier,
connect
the
MAIN
IN
jacks
of
this
unit
to
the
output
jacks
of
the
pre-amplifier.
‘Speakor
system
Pro-
Ampiifior
tweuT_OUTPUT
1.
Set
the
amp
selector
switch
to
the
SEPARATE
(==)
position.
2.
Set
the
speaker
selector
switch
to
the
desired
position,
®@
With
this
unit,
the
pre-amp
and
power
amp
sections
can
he
used
independently
of
each
other.
When
using
the
surround
processor
and
other
built-in
functions
of
the
power
amp,
connect
the
PRE
QUT
jacks
of
this unit
with
the
input jacks
of
the
other
unit,
and
the
MAIN
IN
jacks
of
this
unit
to
the
output
jacks
of
the
other
unit.
The
sound
can
be
enjoyed
from
the
speakers
of
the
con-
nected
device.
In
this
case,
set
the
amp
selector
switch
to
the
SEPARATE
(=
)
position.
A-GI0
Speaker
syste
Surround
0,
ae:
Speaker
system
>»
INPUT
QUTPUT
