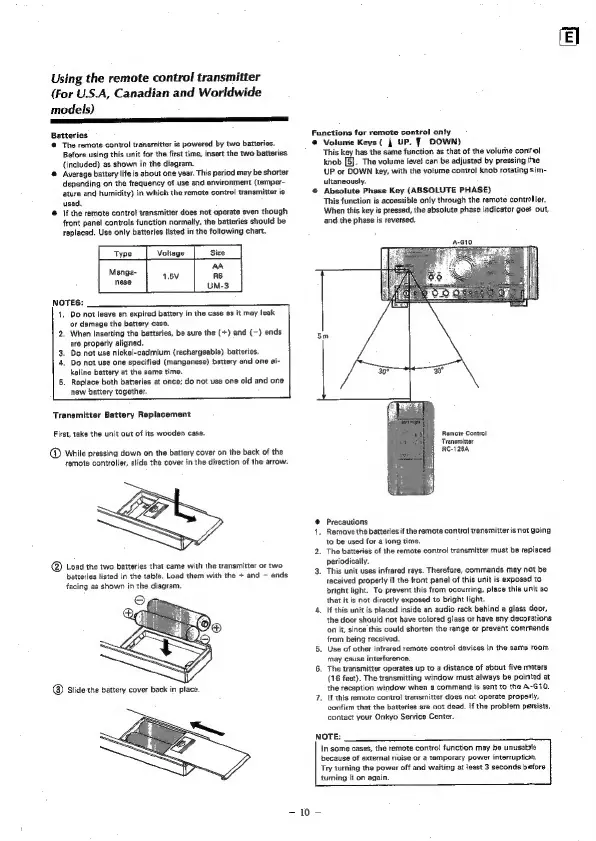

Using the remote control transmitter
(For U.S.A, Canadian and Worldwide
models)
a fhe A A iE SEE
Batteries
© The remote control transmitter is powered by two batteries.
Before using this unit for the first time, insert the two batteries
(included) as shown in the diagram.
® Average battery life is about one year. This period may be shorter
depending on the frequency of use and environment (temper-
ature and humidity) in which the remote control transmitter is
used.
@ if the remote control transmitter does not operate even though
front panel controls function normally, the batteries should be
replaced. Use only batteries listed in the following chart.
Vottage | Siz _ |
nese
NOTES:
1. Do not leave an expired battery in the case as it may leak
or damage the battery case.
2. When inserting the batteries, be sure the (+) and (—) ends
are property aligned.
3. Do not use nickel-cadmium (rechargeable) batteries.
4, Do not use one specified (manganese) battery and one al-
kaline battery at the same time.
6. Replace both batteries at once; do not use one old and one
new battery together.
Transmitter Battery Replacement
First, take the unit aut of its wooden case.
@ While pressing down on the battery cover on the back of the
remote controller, slide the cover in the direction of the arrow.
® Load the two batteries that came with the transmitter or two
batteries listed in the table. Load them with the + and - ends
facing as shown in the diagram.
Functions for remote control only
@ Volume Keys ( 4 UP, f DOWN)
This key has the same function as that of the volume contol
knob [5]. The volume fevel can be adjusted by pressing the
UP or DOWN key, with the volume control knob rotating Sim-
ultaneously.
© Absolute Phase Key (ABSOLUTE PHASE)
This function is accessible only through the remote controller.
When this key is pressed, the absolute phase indicator gos out,
and the phase is reversed.
Remote Control
Transmitter
RC-1264
@ Precautions
. Remove the batteries if the remote control transmitter is not going
to be used for a long time.
2. The batteries of the remote contro! transmitter must be replaced
periodically.
3. This unit uses infrared rays. Therefore, commands may nat be
received properly if the front panel of this unit is exposed to
bright light. To prevent this from occurring, place this unit so
that it is not directly exposed to bright light.
4, If this unit is placed inside an audio rack behind a glass door,
the door should not have colored glass or have any decorations
on it, since this could shorten the range or prevent commands
from being received.
5. Use of other infrared remote contro! devices in the same room
may cause interference.
6. The transmitter operates up to a distance of about five meters
(16 feet). The transmitting window must always be pointed at
the reception window when a command is sent to the A-G10.
7. Mf this remote contra! transmitter does not operate properly,
confirm that the batteries are not dead. if the problem persists,
contact your Onkyo Service Center.
NOTE:
In some cases, the remote control function may be unusata!e
because of external noise or a temporary power interruption.
Try turning the power off and waiting at teast 3 seconds before
turning it on again.
-10-

Onkyo Grand Integra Specifications

Power Amplifier Section

impedance (phono MC)	110 1V/100 ohms
power output	1435 watts per channel
total harmonic distortion	0.008%

Dynamic Power

dynamic power at 4 ohms	240 watts
dynamic power at 2 ohms	155 watts
dynamic power at 8 ohms	310 watts

Frequency and Signal

frequency response CO, Tuner	2 Hz-50 kHz
signal to noise ratio (source direct)	104 dB
signal to noise ratio (phono MM)	89 dB

Weight and Dimensions

weight	30 kg, 66.1 lbs
dimensions (W x H x D)	477 mm x 183 mm x 453 mm
