Using remote controller
Controlling an Onkyo DVD player
Make sure that you point the remote controller toward the remote
control sensor of the DVD player. If it does not operate properly,
change the code to 02 (refer to page 32).
When the DVD player is connected with z connecter of the
HT-R490, change the code to 01 and point the remote controller
toward the HT-R490 (refer to page 32).
1. Press the DVD MODE button.
2. Press the STANDBY/ON button to turn on the
Onkyo DVD player.
3. Press the desired operation button.
DVD operation buttons
s : Starts playback of DVD.
e : Stops playback.
f : Searches the disc in the forward direction.
d : Searches the disc in the reverse direction.
2/8 : Lets playback pause temporarily or advances the disc
frame by frame.
w : Starts playback from the beginning of the next
chapter/track.
q : Starts playback from the beginning of the current
chapter/track.
DISC : This button is valid when the DVD changer is used
and selects the disc to be played.
OSD operation buttons
TOP MENU : Displays the top menu of each DVD disc.
MENU : Displays a menu recorded in the DVD disc.
RETURN : Returns to the previous menu.
SETUP : Displays the setup menu.
5/∞/2/3 : Selects an item in a menu.
ENTER : Enters the selection in memory.
INPUT SELECTOR
SLEEP DIMMER DISPLAY
CD TAPE TUNER
D V D VIDEO 1 VIDEO 2
SUR MODE SW MODE AUDIO SEL
TUNER
PRESET
STANDBY/ ON
DISC MUTING
VOLUME
TOP MENU MENU
CH SEL
RETURN SETUP
TEST TONE LEVEL
ENTER
DVD MODE
STANDBY/ON
R
C
-
4
4
6
M
R
E
M
O
T
E
C
O
N
T
R
O
L
L
E
R
MODE
TV CABLE SATELLITE
VCR
STANDBY/ ON DVD CD TAPE
CH
TV/VCR
CH TV VOL
TV VOL

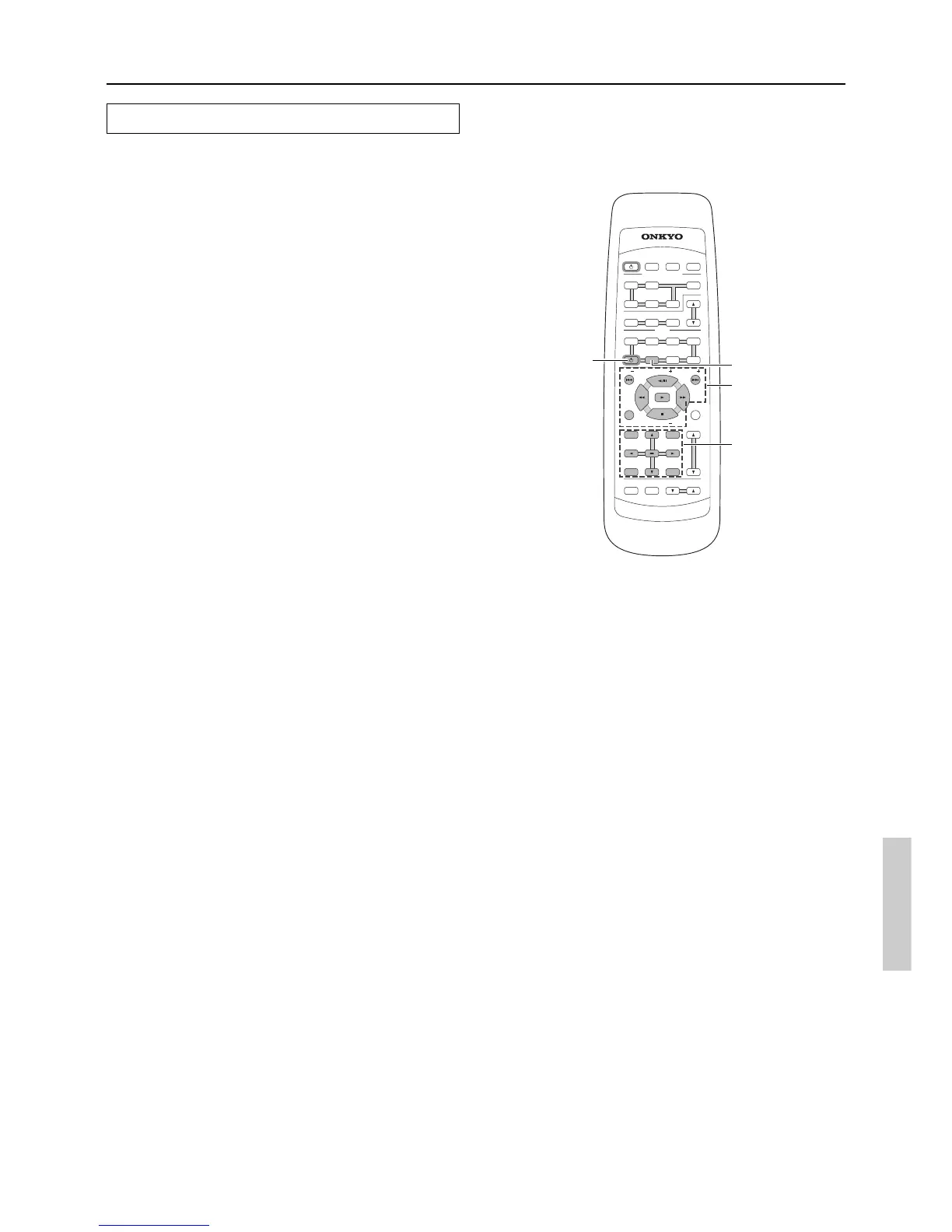

DVD operation
buttons
OSD operation
buttons

Onkyo HT-R490 Specifications

Amplifier Section

continuous average power output (FTC) - 8 ohms	55 watts per channel min. RMS
continuous average power output (FTC) - 6 ohms	70 watts min. RMS
continuous power output (DIN)	75 watts × 5 at 6 ohms
maximum power output (EIAJ)	100 watts × 5 at 6 ohms
total harmonic distortion	0.08% at rated power (Front)
IM distortion	0.08% at rated power (Front)
damping factor	60 at 8 ohms (Front)
input sensitivity and impedance - LINE	200 mV, 50 kohms
input sensitivity and impedance - MULTICHANNEL INPUT (FRONT L/R, SURROUND L/R, CENTER)	200 mV, 50 kohms
input sensitivity and impedance - MULTICHANNEL INPUT (SUBWOOFER)	36 mV, 50 kohms
input sensitivity and impedance - DIGITAL 2 (COAXIAL)	0.5 Vp-p, 75 ohms
output level and impedance - Rec out (TAPE, VIDEO 2)	200 mV, 2.2 kohms
output level and impedance - Pre out (SUBWOOFER)	1 V, 2.2 kohms
frequency response	20 Hz to 100 kHz, +1/–3 dB
RIAA deviation	20 Hz to 20 kHz, ±0.8 dB
tone control - Bass	±10 dB at 50 Hz
tone control - Treble	±10 dB at 10 kHz
signal-to-noise ratio - CD/Tape	100 dB (IHF-A)

Tuner Section

FM tuning range	87.5-108.0 MHz (50 kHz steps)
FM usable sensitivity - Mono	11.2 dBf, 1.0 µV (75 ohms)
FM usable sensitivity - Stereo	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB quieting sensitivity - Mono	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB quieting sensitivity - Stereo	37.2 dBf, 2.0 µV (75 ohms)
FM capture ratio	2.0 dB
FM image rejection ratio	40 dB
FM IF rejection ratio	90 dB
FM signal-to-noise ratio - Mono	76 dB
FM signal-to-noise ratio - Stereo	70 dB
FM alternate channel attenuation	55 dB
FM selectivity	50 dB (DIN)
FM AM suppression ratio	50 dB
FM total harmonic distortion - Mono	0.2%
FM total harmonic distortion - Stereo	0.3%
FM frequency response	30 Hz-15 kHz, ±1.0 dB
FM stereo separation	45 dB at 1 kHz
AM tuning range	530-1, 710 kHz (10 kHz steps)
AM usable sensitivity	30 µV
AM image rejection ratio	40 dB
AM IF rejection ratio	40 dB
AM signal-to-noise ratio	40 dB
AM total harmonic distortion	0.7%

General

power supply	AC 120 V, 60 Hz
power consumption	3.4 A
dimensions (W × H × D)	435 × 150 × 339 mm
weight	9.7 kg, 21.4 lbs.
