En-14

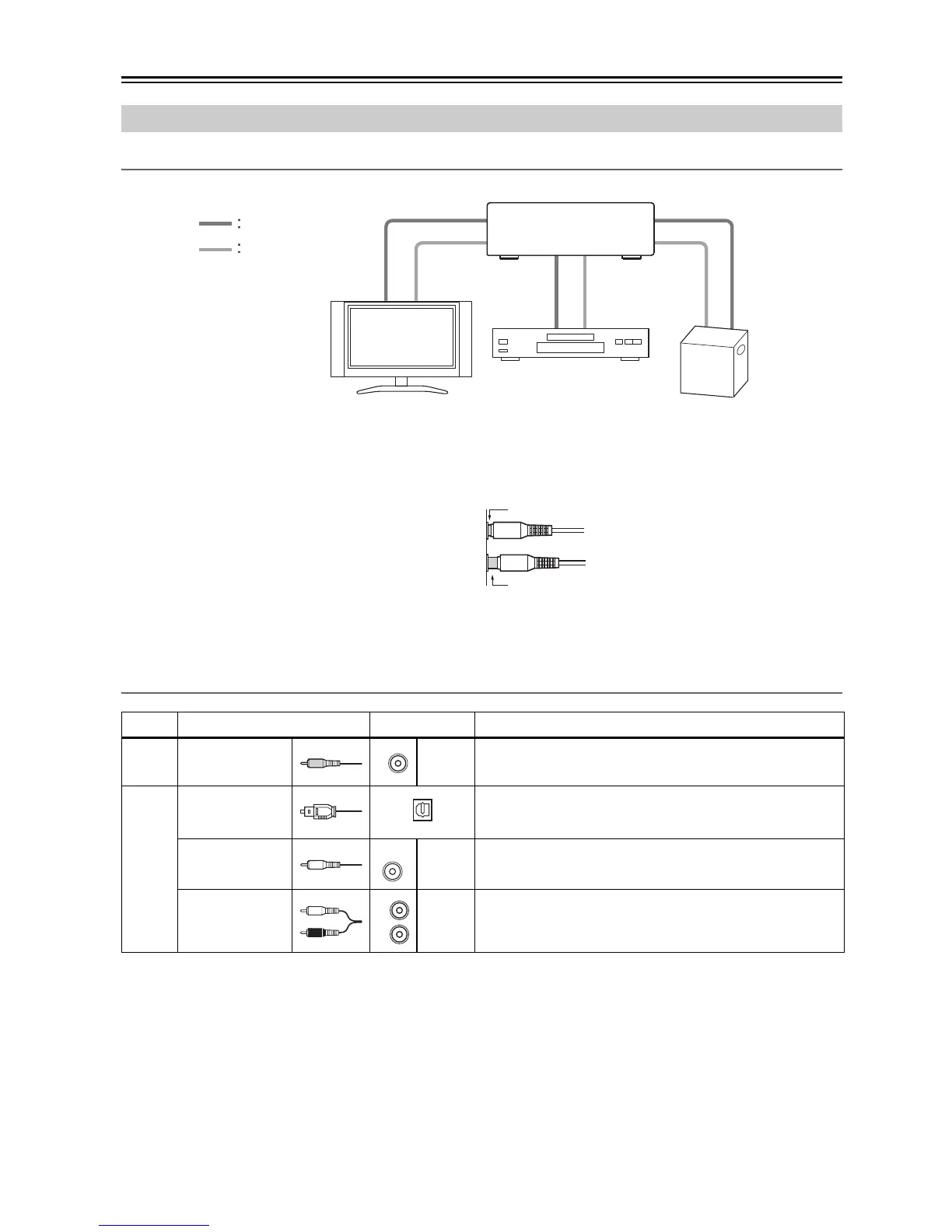

Connecting Your Components
Connecting AV components
• Before making any AV connections, read the manuals supplied with your AV components.
• Don’t connect the power cord until you’ve completed and double-checked all AV connections.
• Push plugs in all the way to make good connections
(loose connections can cause noise or malfunctions).
• To prevent interference, keep audio and video cables away from power cords and speaker cables.
AV Cables and Jacks
Notes:
• The receiver does not support SCART plugs.
• The receiver does not support multichannel audio input. The PCM signal can be input only to digital input terminals.
Make sure that PCM is selected on the playback component.
• The receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when
it’s removed. Push plugs in all the way.
Caution:
To prevent shutter damage, hold the optical plug straight when inserting and removing.
About AV Connections
Signal Cable Jack Description
Video Composite video
Ye l l o w
Composite video is commonly used on TVs, VCRs, and
other video equipment.
Audio Optical digital
audio
Optical digital connections allow you to enjoy digital sound.
The audio quality is the same as coaxial.
Coaxial digital
audio
Orange Coaxial digital connections allow you to enjoy digital sound .
The audio quality is the same as optical.
Analog audio
(RCA)
White
Red
Analog audio connections (RCA) carry analog audio.
To Next Page
