Names and functions of parts
10

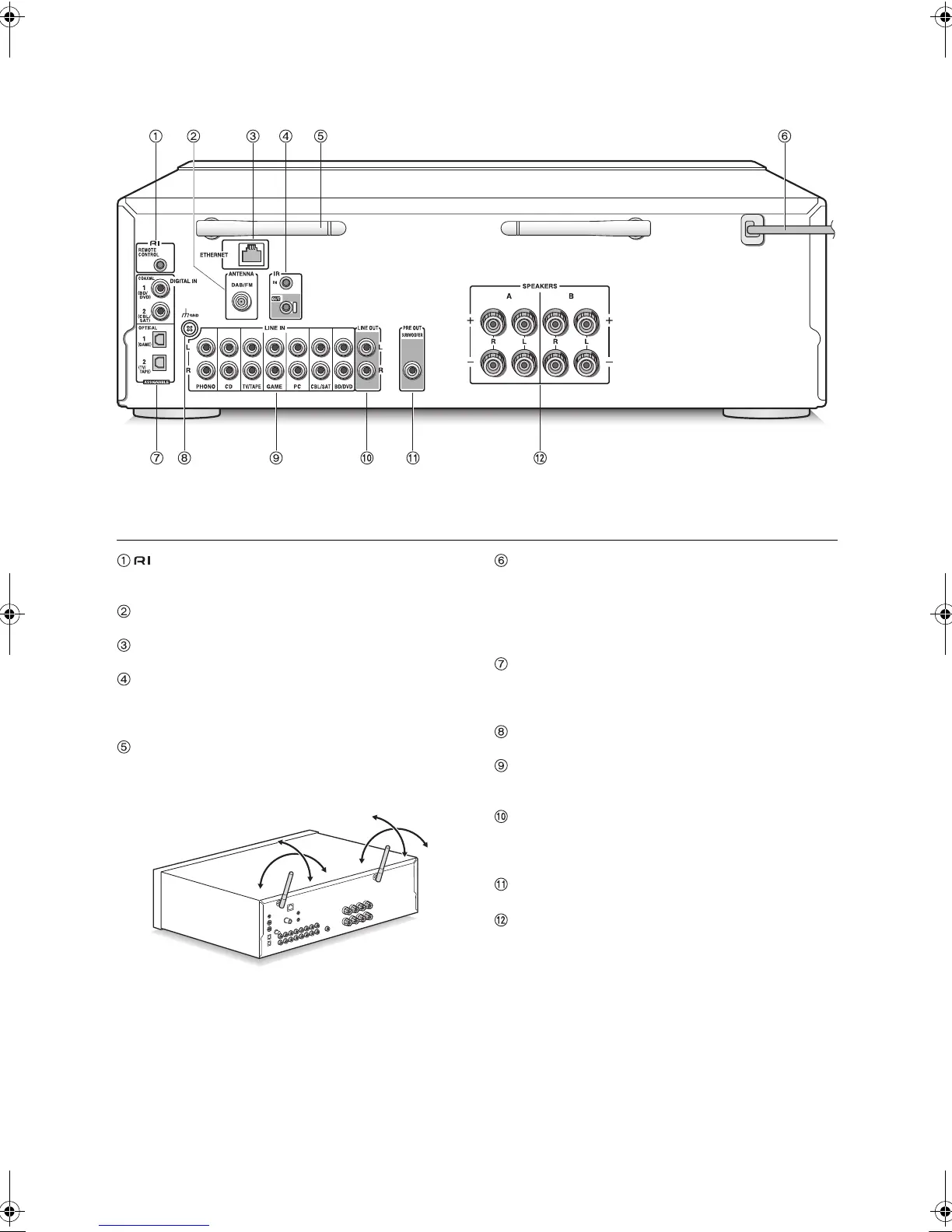

Rear
REMOTE CONTROL jack:
An Onkyo product with
RI jack can be connected and synchronized with this
unit.
DAB/FM ANTENNA terminal:
The supplied antenna
is connected.
ETHERNET port:
Connect to the router with an
Ethernet cable.
IR IN/OUT terminals:
Connected to the multi-room
remote control kit. Special devices or cables are
necessary. For more information about preparation,
contact the specialized stores.
Wireless antenna:
Used for Wi-Fi connection or when
using a
Bluetooth
enabled device. Adjust their angles
according to the connection status.
Power cord:
Connect the power cord to an AC outlet.
Disconnect the power cord only after putting the unit
into standby mode.
*
Turning on the unit may cause a momentary power surge that
might interfere with other electrical equipment on the same
circuit. If this is a problem, plug the unit into a different branch
circuit.
DIGITAL IN OPTICAL/COAXIAL terminals:
Connected to players. Use a digital optical cable or
digital coaxial cable for connection with the digital
audio output jack of a player.
GND terminal:
Connect if the record player has a
ground wire.
LINE IN terminals:
Connected to players. Use an
RCA cable for connection with the LINE OUT terminal
of a player.
LINE OUT terminals:
Use when connecting recording
devices, such as a cassette tape deck. Use an RCA
cable to connect to the LINE IN terminal on a recording
device.
SUBWOOFER PRE OUT jack:
Connect a subwoofer
with a built-in amplifier to amplify bass output.
SPEAKERS A/B terminals:
You can connect a set of
left and right speakers to each of the A/B terminals.
