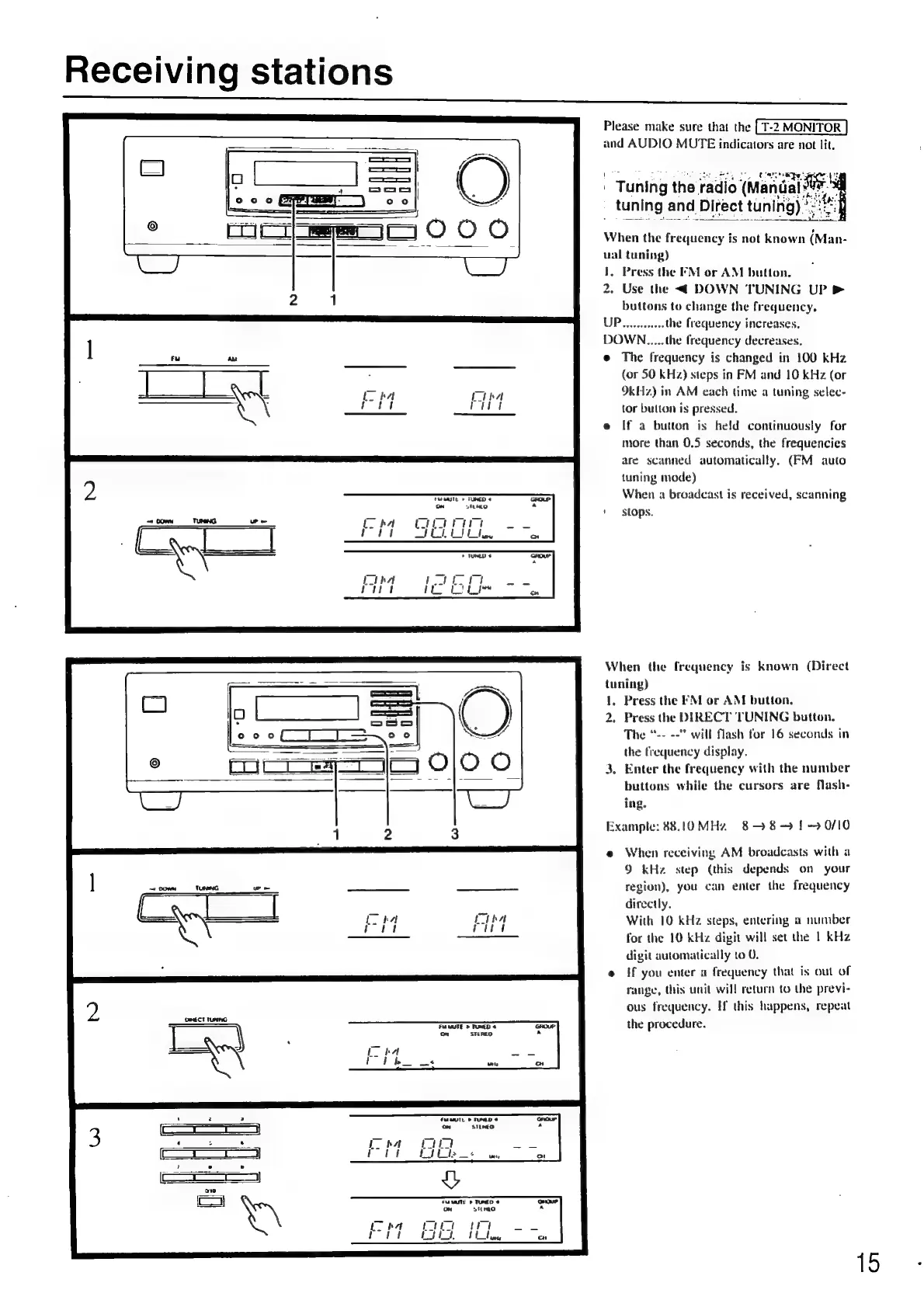

Receiving stations
euamte >
Fate
on
Carn
!
Pt te +
vu nate
ON
cacti
ttt
TUNED
onmaDe
SILO
kate
>Tumoe
pare, Co)
wd
Phiten
Please make sure that the | T-2 MONITOR
and AUDIO MUTE indicators are not lit.
Tuning
the
radio
(Mandal
-¥*
tuning
and
Direct
tuning)
*:"
When the frequency is not known (Man-
ual tuning)
I. Press the FM or AM button,
2. Use the < DOWN TUNING UP »
buttons to change the frequency.
UP............the frequency increases.
DOWN.....the frequency decreases.
e The frequency is changed in 100 kHz
(or 50 kHz) steps in FM and 10 kHz (or
9kHz) in AM each time a tuning selec-
tor button is pressed.
e [If a button is held continuously for
more than 0.5 seconds, the frequencies
are scanned automatically. (FM auto
tuning mode)
When a broadcast is received, scanning
stops.
When the frequency is known (Direct
tuning)
1, Press the FM or AM button.
2. Press the DIRECT TUNING button.
The “-- --"" will flash for 16 seconds in
the frequency display.
3. Enter the frequency with the number
buttons while the cursors are flash-
ing.
Example: 88.10 MHz 83 8— 1 - 0/10
e@ When receiving AM broadcasts with a
9 kHz step (this depends on your
region), you can enter the frequency
directly.
With 10 kHz steps, entering a number
for the 10 kHz digit will set the | kHz
digit automatically to 0.
e ff you enter a frequency that is out of
range, this unit will return to the previ-
ous frequency. Hf this happens, repeat
the procedure.
15
