Onkyo TX-8211 - Microprocessor Connection Diagram

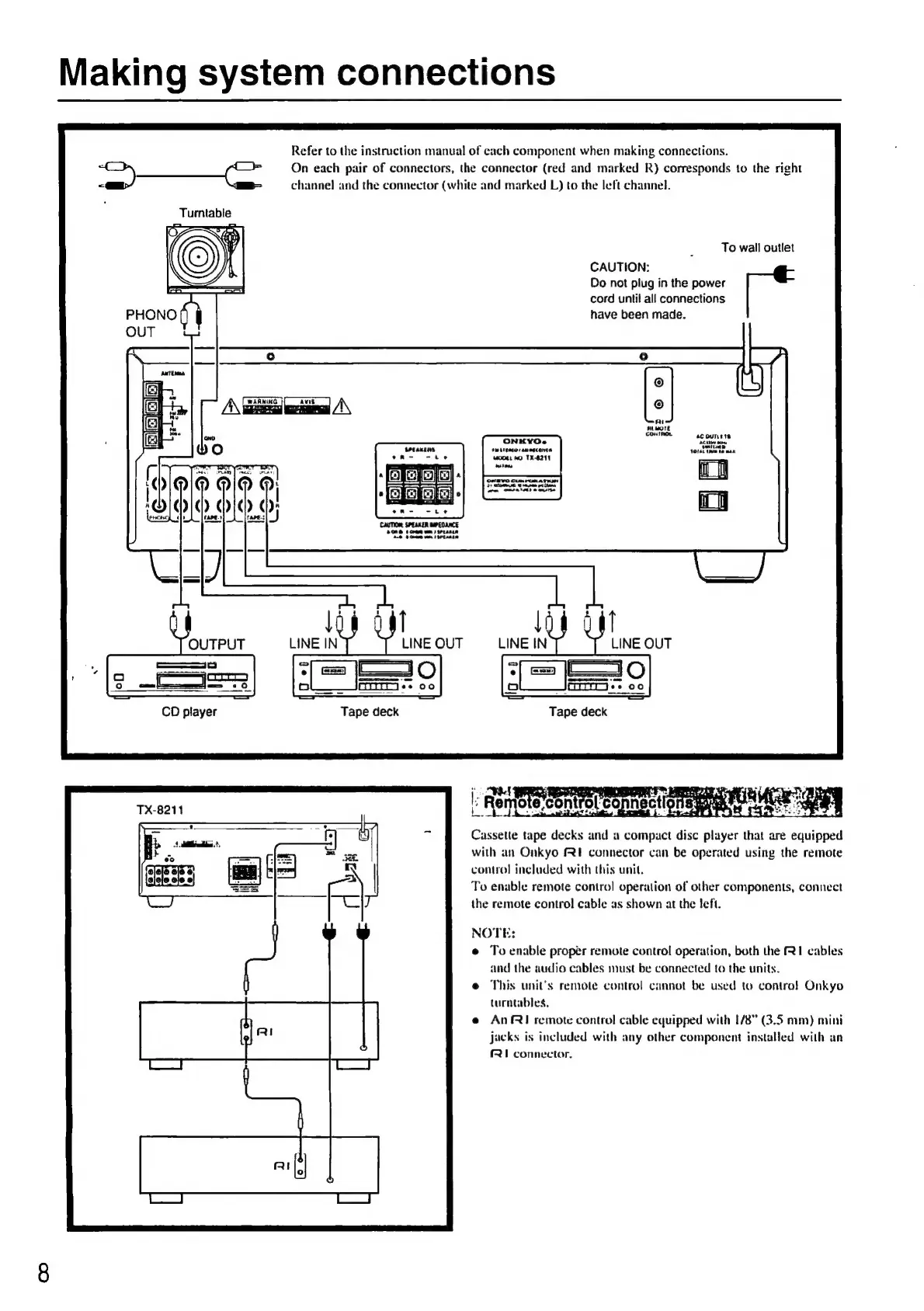

Making system connections
Refer to the instruction manual of cach component when making connections.
pant . On each pair of connectors, the connector (red and marked R) corresponds to the right
< channel and the connector (white and marked L) to the left channel.
Turntable
To wall outlet
CAUTION:
Do not plug in the power
cord until all connections
have been made.
ONHYOs ac Ounete
ACL om,
sa brengor am necarves yore tive en man
AA00EL WO TX-8211
lon Tm
a
. : ——
{i
CO player Tape deck Tape deck
| RR Sreremamones ea
TX-8211 Mh al tothe rasa tl AL
ae
Cassette tape decks and a compact disc player that are equipped
with an Onkyo RE connector can be operated using the remote
control included with this unit.
To enable remote control operation of other components, connect
the remote control cable as shown at the left.
NOTE:
e To enable propér remote control operation, both the RI cables
and the audio cables must be connected to the units.
e This unit’s remote control cannot be used to contra! Onkyo
turntables.
e AnRlI remote control cable equipped with 1/8” (3.5 mm) mini
jacks is included with any other component installed with an
RI connector,
