17
Connecting Speakers
—Continued

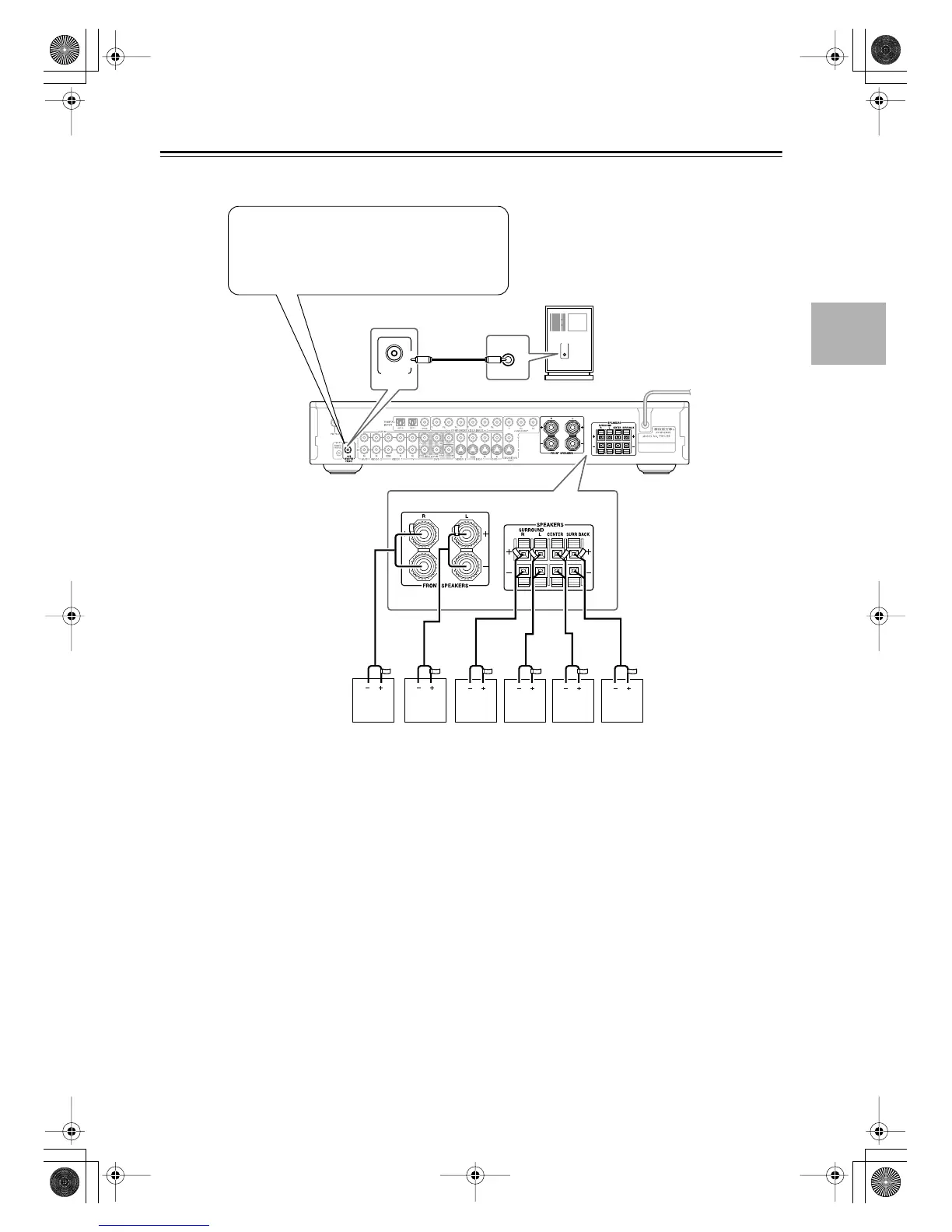

The following illustration shows which speakers should be connected to which terminals.
LINE INPUT
LINE
INPUT
Surround
left
speaker
Surround
right
speaker
Center
speaker
Surround
back
speaker
SUB
WOOFER
PRE OUT
Powered
subwoofer
The SUBWOOFER PRE OUT should be connected to the
input on your powered subwoofer. If your subwoofer
doesn’t have an amp built-in, you’ll need to use an external
amp. See the manual supplied with your subwoofer for
more information.
Front
left
speaker
Front
right
speaker
