Speaker Configuration
This section explains how to specify which speakers are
connected and their sizes.
For speakers with a cone diameter
larger than 6-1/2 inches (16 cm),
specify Lrg. For those with a smaller
diameter, specify Sml.
S
ett
i
ngs
i
n t
hi
s c
h
apter cannot
b
e set w
hil
e t
h
e
DVD
mu
l
t
i
c
h
anne
l
i
nput
is selected or a
p
air of head
p
hones is connected to the PHONES
j
ack.

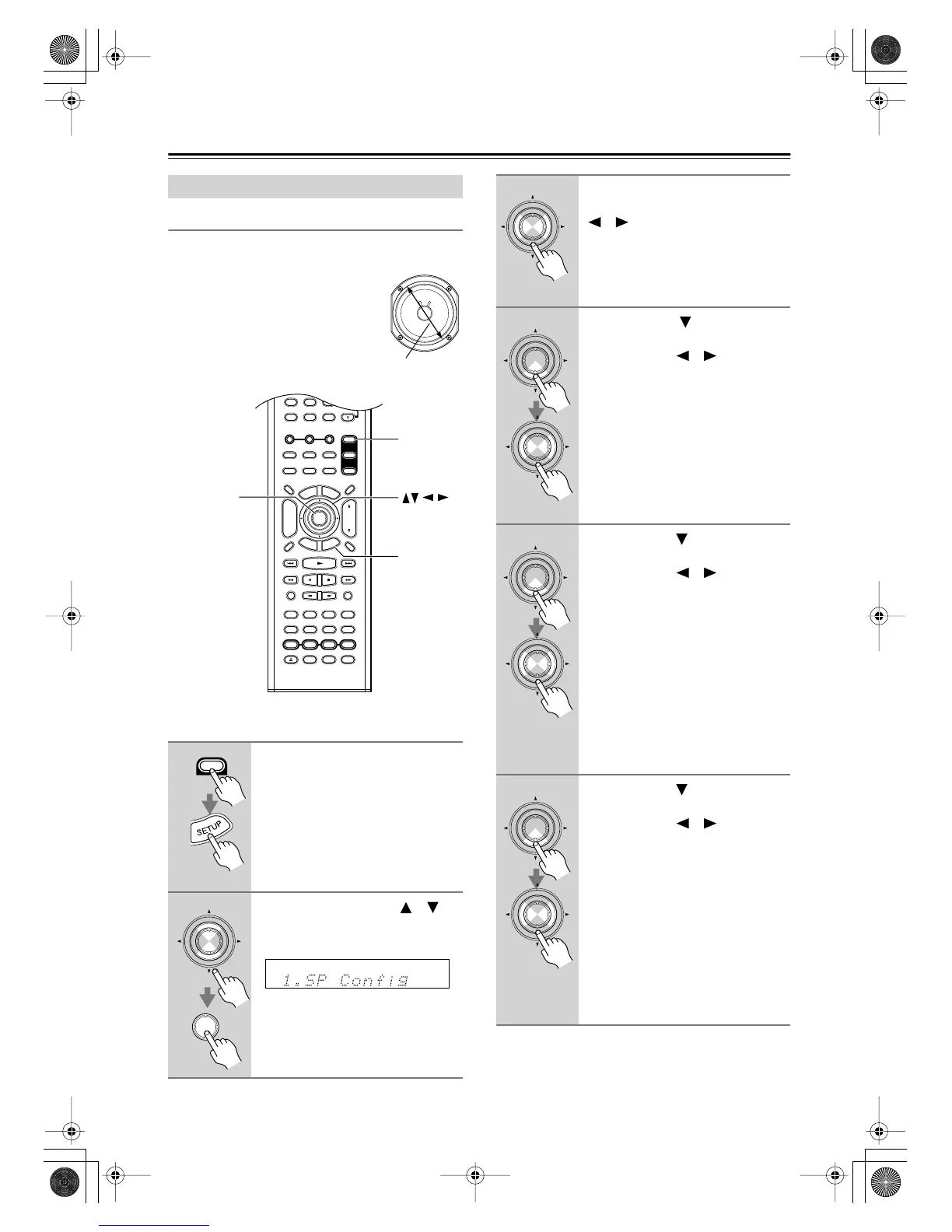

Speaker Setup (Advanced)
1
Press the REMOTE MODE [AMP]
button followed by the [SETUP]
button.
2
Use the Up and Down [ ]/[ ]
buttons to select “1. SP Config,”
and then press [ENTER].
Cone diameter
+
10 0
CLEAR
123
456
789
--/---
+
-
ENTER
S
E
T
U
P
R
E
T
U
R
N
CINE FLTR
CH SEL TEST TONE
P MEM
TUN
+ TUN -
DSP
STEREO SURR DIRECT
L.NIGHT
T
O
P
M
E
N
U
M
E
N
U
VOL
+
-
DVD
TV
AMP
TV AUX TUN
DVD V1
INPUT SELECTOR
V2
DISC
CH
TONE
REMOTE
MODE
TUNER
DISPLAY
TV
INPUT
PREV
CH
DIMMER SLEEP
RANDOM
SP A SP B
MUTING
EXIT GUIDE
ANGLE
SEARCH
SUBTITLEAUDIO
MEMORYA
-
BREPEAT
TV CH
T
V VOL
RC
-
577S
LAST M
OPEN
/
CLOSE
TUN M
VIDEO OFF
LEVEL LEVEL
+
_
+
-
PLAY MODE
AMP
SETUP
ENTER
AMP
TUNER
ENTER
ENTER
3
While the Subwoofer setting is
selected, use the Left and Right
[ ]/[ ] buttons to select:
Yes: Select if a subwoofer is con-
nected.
No: Select if no subwoofer is con-
nected.
4
Use the Down [ ] button to
select “Front,” and then use the
Left and Right [ ]/[ ] buttons to
select:
Sml: Select if the front speakers are
small.
Lrg: Select if the front speakers are
large.
Note:
• If the Subwoofer setting in step 3 is
set to No, this setting is fixed at Lrg
and cannot be changed.
5
Use the Down[ ] button to
select “Center,” and then use the
Left and Right [ ]/[ ] buttons to
select:
Sml: Select if the center speaker is
small.
Lrg: Select if the center speaker is
large.
Non: Select if no center speaker is
connected.
Note:
• If the Front setting in step 4 is set to
Sml, the Lrg option cannot be
selected.
6
Use the Down[ ] button to
select “Surr,” and then use the
Left and Right [ ]/[ ] buttons to
select:
Sml: Select if the surround left and
right speakers are small.
Lrg: Select if the surround left and
right speakers are large.
Non: Select if no surround left and
right speakers are connected.
Note:
• If the Front setting in step 4 is set to
Sml, the Lrg option cannot be
selected.
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
