Onkyo TX-NR1000

26
Connecting Speakers —Continued
Use the SUBWOOFER PRE OUT A/B jack to connect
a subwoofer with a built-in power amplifier. If your
subwoofer does not have a built-in amplifier, connect an
amplifier to the SUBWOOFER PRE OUT A/B jack and
the subwoofer to the amplifier.
You can connect two subwoofers for different speaker
systems. You have to assign a subwoofer to the room in
which it will be used (See pages 88, 89).
These jacks are for connecting an auxiliary power
amplifier. The PRE OUT terminals on the TX-NR1000/
TX-NR5000E use the mode settings for speaker system
[A].
You can use an auxiliary power amplifier to listen at
louder volumes than you can with the TX-NR1000/
TX-NR5000E alone. When using a power amplifier,
connect each speaker to the power amplifier.

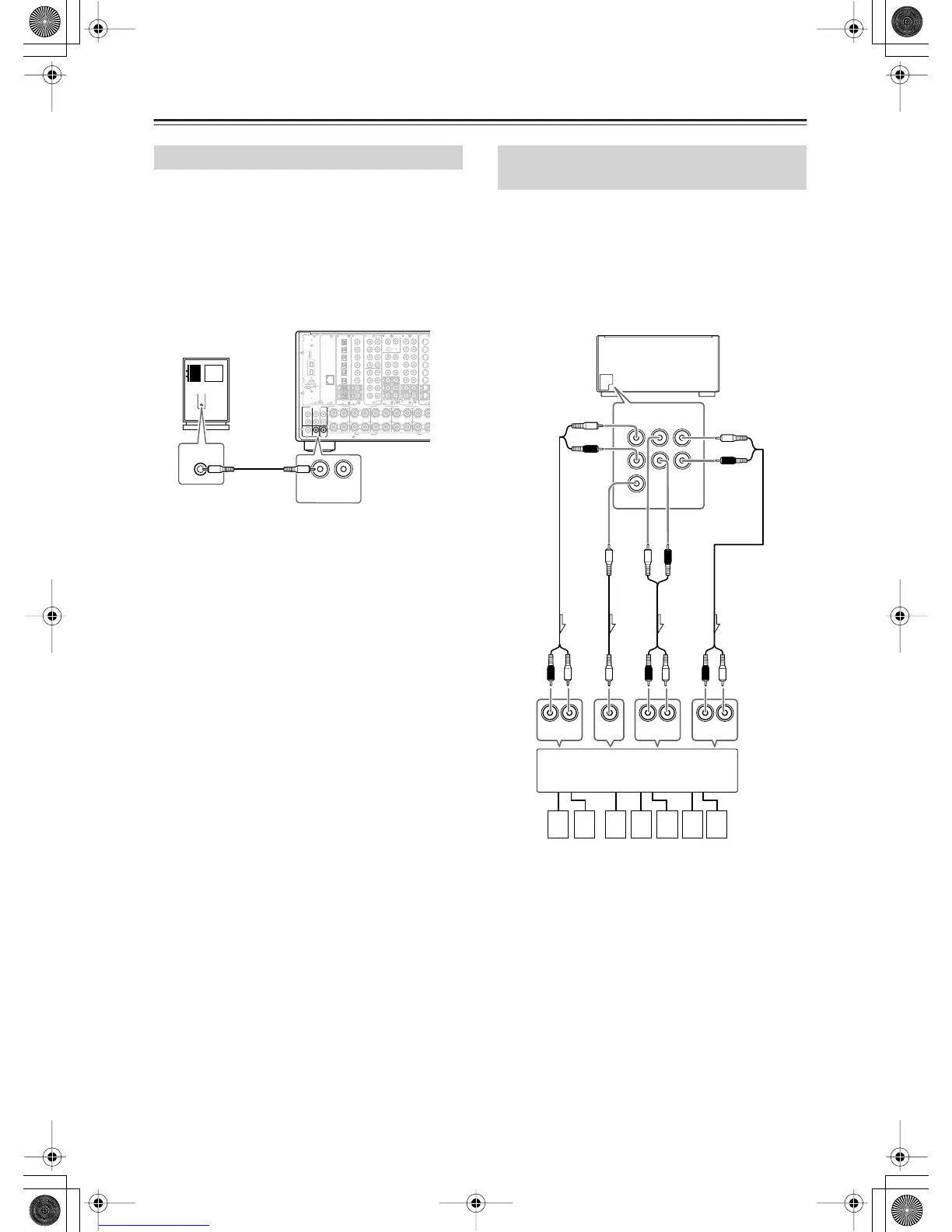

Connecting a Subwoofer
LINE INPUT
A
B
L
R
FRONT SURR SURR
BACK
CENTER
SUB
WOOFER
SUB
WOOFER
FRONT L CENTERFRONT R SURR BACK R
(
ASSIGNABLE
)
SURR R
FRONT R
(
BTL
)
FRONT L
A B C D F
G
H
PRE OUT A
PRE
OUT B
“Net
-
Tune”
is a trademark of
Onkyo Corporation.
ETHERNET
(
Net
-
Tune
)
22
11
66
55
44
33
22
11
C D
DIGITAL IN DIGITAL IN
OPTICAL COAXIAL
OUT
SBR SBL
SR SL
SUB C
FR FL
SBR SBL
SR SL
SUB C
FR
FL
E
MULTI
-
CH
IN 1
MULTI
-
CH
IN 2
AUDIO IN
1
3
2
1
PH
2
3
9
8
7
6
5
4
4
5
LRRL
OUT
LR
LR
R L
F
G
S VIDEO
IN
3
2
1
H
6
5
4
2
1
S VIDEO
O
U
GND
LINE INPUT
SUB
WOOFER
SUB
WOOFER
PRE
OUT B
PRE
OUT A
Connecting Auxiliary Power Amplifier
(For Speaker System [A] only)
RL
INPUT
RL
INPUT
RL
INPUTINPUT
L
R
FRONT SURR SURR
BACK
CENTER
PRE OUT A
R
L
R
L
R
L
R
L
R
L
R
L
7654321
Front Surround back
to White
to Red
to Blue
to Green
to Gray
SurroundCenter
Power amplifier
1. Front left speaker
2. Front right speaker
3. Center speaker
4. Surround left
speaker
5. Surround right
speaker
6. Surround back left
speaker
7. Surround back right
speaker
to Brown
to Tan
TX-NR1000/
TX-NR5000E
