Connecting AV Components —Continued
• This section describes the connections for displaying the video source or the operating information of the
TX-NR1000/TX-NR5000E on a monitor device such as a TV or projector. Before making a connection, check the
terminal types on the monitor device and acquire the necessary cables by referring to page 31.
• The TX-NR1000/TX-NR5000E incorporates a video converter, which allows you to enjoy the video source even
when the connections between the playback device and the TX-NR1000/TX-NR5000E and between the
TX-NR1000/TX-NR5000E and the monitors are different. When your TV or monitor has various types of input ter-
minals, use the connection with which you can get the best video quality (For a model with no HDMI terminal, note
that the input signal from the COMPONENT terminal will be output only to the COMPONENT terminal).
• The VIDEO OUT 4 and S VIDEO OUT 4 terminals can be used only for Main room A.
• When you enjoy the video source in the remote zone (Zone 2 or Zone 3), the TV or monitor should be connected to
the VIDEO 1, VIDEO 2, or VIDEO 3 terminal.
*For more information on the HDMI interface, see page 43.

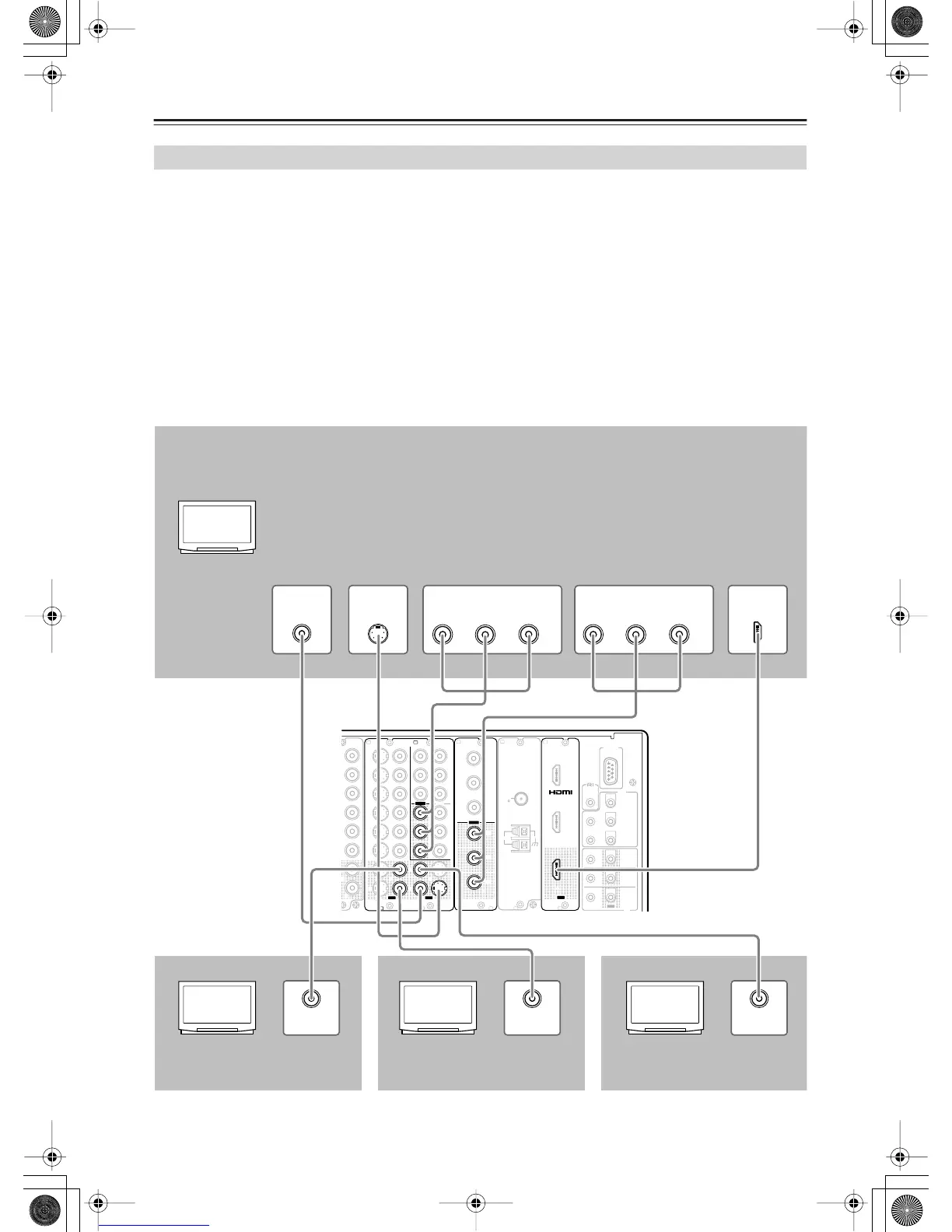

Connecting Monitors such as TV or Projector
REMOTE
CONTROL
MAIN
ZONE 3
ZONE 2
OUT
IN
IR
12V
TRIGGER
OUT
RS 232
H I J K L
A
C
B
D
E
200mA MAX.
100mA MAX.
100mA MAX.
100mA MAX.
100mA MAX.
L
L
L
IN 1
IN 2
OUT
HDMI
S VIDEO VIDEO
IN IN
IN
1
IN 2
3
2
1
Y
P
B
PR
COMPONENT
VIDEO
IN 3
I
6
5
4
Y
P
B
PR
2
1
4
3
S VIDEOS VIDEO VIDEOVIDEO
OUT OUT
OUT 1
J
Y
P
B
PR
Y
P
B
PR
COMPONENT VIDEO
IN 4
OUT 2
K
ANTENNA
FM
75
AM
H
VIDEO
IN
VIDEO
IN
VIDEO
IN
VIDEO
IN
S VIDEO
IN
HDMI
IN
Y
P
B
PR
Y
P
B
PR
COMPONENT
VIDEO (RCA)
IN
COMPONENT
VIDEO (BNC)
IN
Make a connection using any of the terminals below.
*1 When connecting to the other S VIDEO OUT terminal, configure the video output
settings accordingly using the Video Output Assign sub-menu (See page 92).
*2 When connecting to the other VIDEO OUT terminal, configure the video output
settings accordingly using the Video Output Assign sub-menu (See page 92).
*3 European and Asian models only.
Monitor device such as TV
for Main room B
Monitor device such as TV
for Zone 2
Monitor device such as TV
for Zone 3
Monitor device
such as TV and
projector for
Main room A
*2
*2
*2
*2
*1
*3
