Onkyo TX-RZ50

14

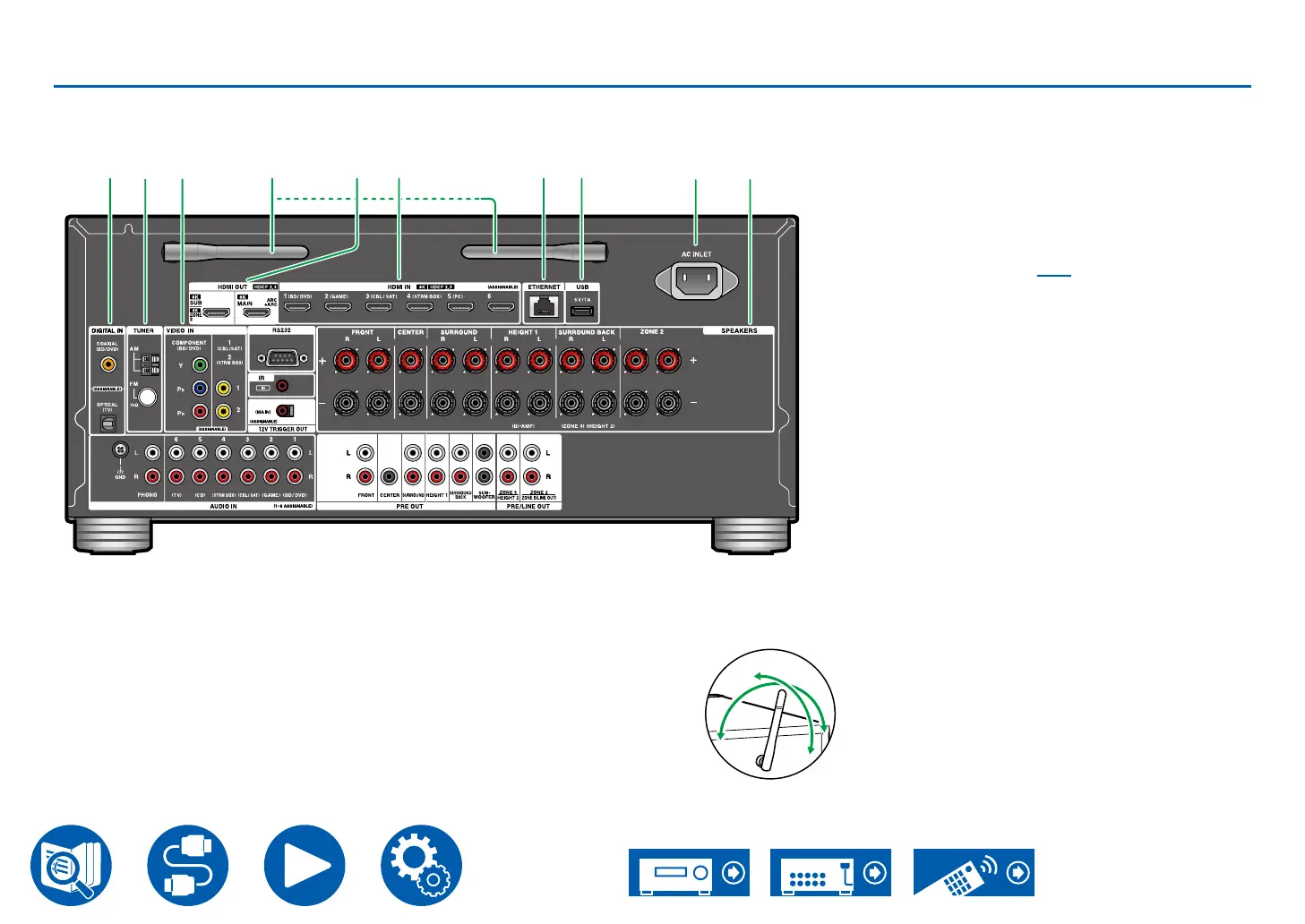

Rear Panel (North American models)
ABCD 6 7 HIJE
A DIGITAL IN OPTICAL/COAXIAL jacks: Input
TV or AV component digital audio signals with a
digital optical cable or digital coaxial cable.
B TUNER AM/FM terminal: Connect the supplied
antennas.
C COMPONENT VIDEO IN jacks: Input AV
component video signals with a component
video cable. (Compatible only with 480i or 576i
resolution.)
VIDEO IN jacks: Input AV component video
signals with an analog video cable.
D Wireless antenna: Used for WI-Fi connection or
when using a BLUETOOTH
enabled device. Adjust the
angles according to the
connection status.
E HDMI OUT jacks: Transmit video signals and
audio signals with an HDMI cable connected to a
monitor such as a TV or projector.
F HDMI IN jacks: Transmit video signals and audio
signals with an HDMI cable connected to an AV
component.
G ETHERNET port: Connect to the network with
an Ethernet cable.
H USB port: Connect a USB storage device to
play music les ( →p114). You can also supply
power (5 V/1 A) to USB devices with a USB
cable.
I AC INLET: Connect the supplied power cord.
J SPEAKERS terminals: Connect speakers with
speaker cables. Support banana plugs. Use a
plug 4 mm in diameter. Y plug connection is not
supported.
180°
90°
