Onkyo TX-RZ50

7.1.2ch
7.1ch
5.1. 2ch
5.1.4ch
7.1.4ch
5.1c h
57
Speaker Connections

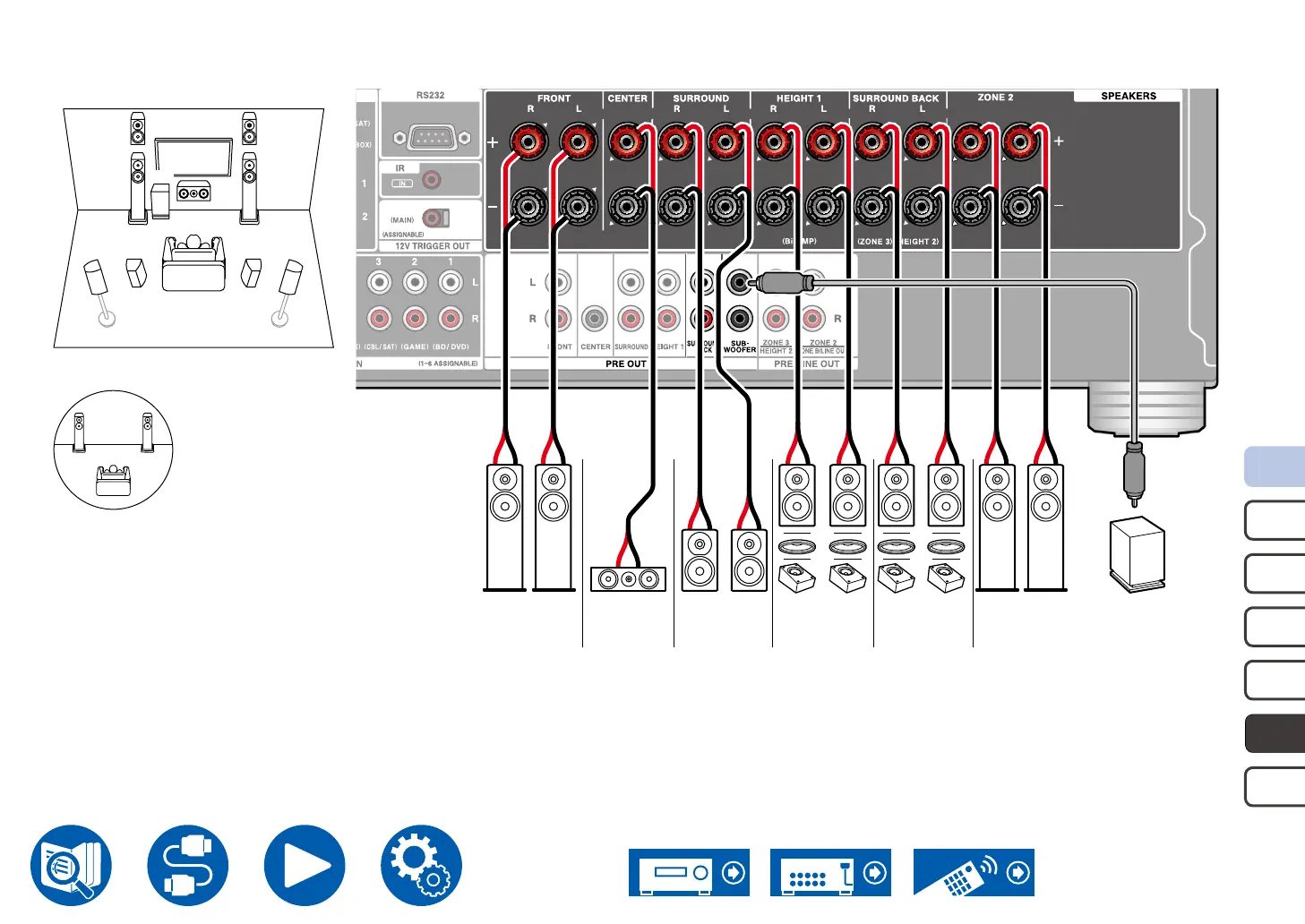

 5.1.4 Channel System + ZONE SPEAKER (North American models only)
SL SR
FL FR
C
SW
HL1 HR1
HR2HL2
FR
(
Z2
) (
Z2
)
FL
C
SR SLFR FL HR2 HL2HR1 HL1
SW
ZONE 2
FL(Z2)FR(Z2)
MAIN ROOM
• While ZONE 2 playback is being performed, Height 1 speakers installed in the main room cannot play audio.
*1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers (Front)).
*2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers (Surround)).
*1 *2
