Connections
12V TRIGGER OUT jack
When connecting a device equipped with a TRIGGER IN jack such as a BD/
DVD player to this unit, the device can be turned on or set to standby by
interlocking the operation on this unit. When any input is selected, this unit
outputs a maximum of 12 V/100 mA control signal from the 12V TRIGGER OUT
jack, and controls the power link operation of the external device.
• For connection, use a monaural mini plug cable (ø1/8″/3.5 mm) without
resistance. Do not use a stereo mini plug cable.
Setup
• Settings are required to output control signals from the 12 V TRIGGER OUT
jack. Press the button on the remote controller, select the input desired for
"5.Hardware" - "12V Trigger" ( →p151), and set the output destination for
the control signal.
a
BD/DVD

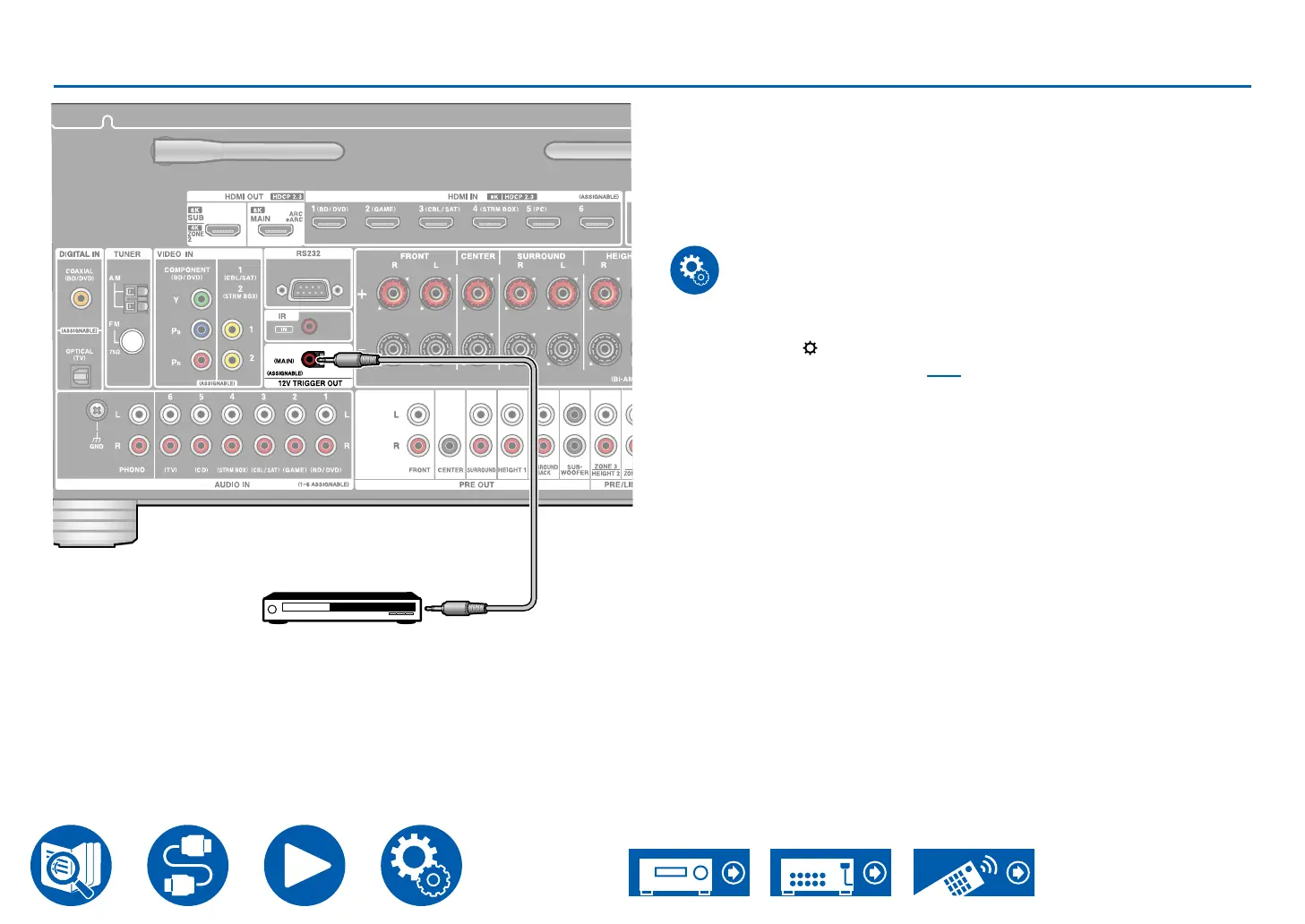

a Monaural mini plug cable (ø1/8″/3.5 mm)
