Onkyo TX-RZ50 User Manual

77
Connections

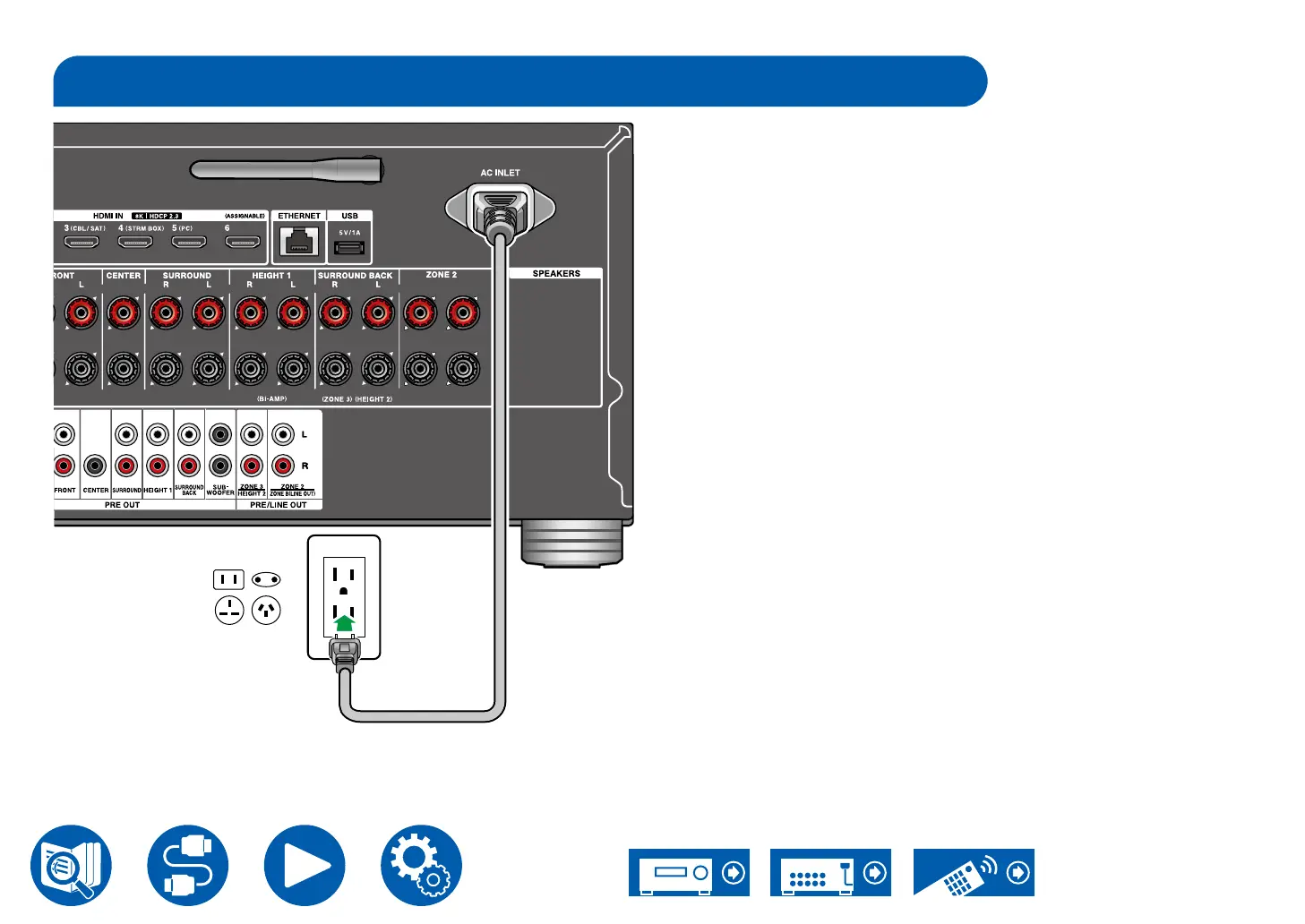

Connecting the Power Cord
Connect the power cord after all the connections are completed.
• This model includes a removable power cord. Be sure to connect the power
cord to the AC INLET of the unit rst, and then connect it to the outlet. Always
disconnect the outlet side rst when disconnecting the power cord.
a Power cord
a

Onkyo TX-RZ50 Specifications

General

Impedance	16 Ω
Receiver type	Surround
Frequency range	5 - 100000 Hz
Input sensitivity	200 mV
4Ω speaker support	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (20-20KHz@8 Ohm)	250 W
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	850 W
HDMI in	6
USB ports quantity	1
Digital audio optical in	2
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Wi-Fi	No
AirPlay	-
Display	LCD
Product color	Black
Audio decoders	DTS:X, Dolby Atmos
THX-certified	THX
Cables included	AC

Weight and Dimensions

Depth	201.5 mm
Width	435 mm
Height	398 mm
Weight	14000 g
