Onkyo TX-RZ50

5.1.4ch
7.1.2ch
7.1ch
5.1. 2ch
7.1.4ch
5.1c h
58
Speaker Connections

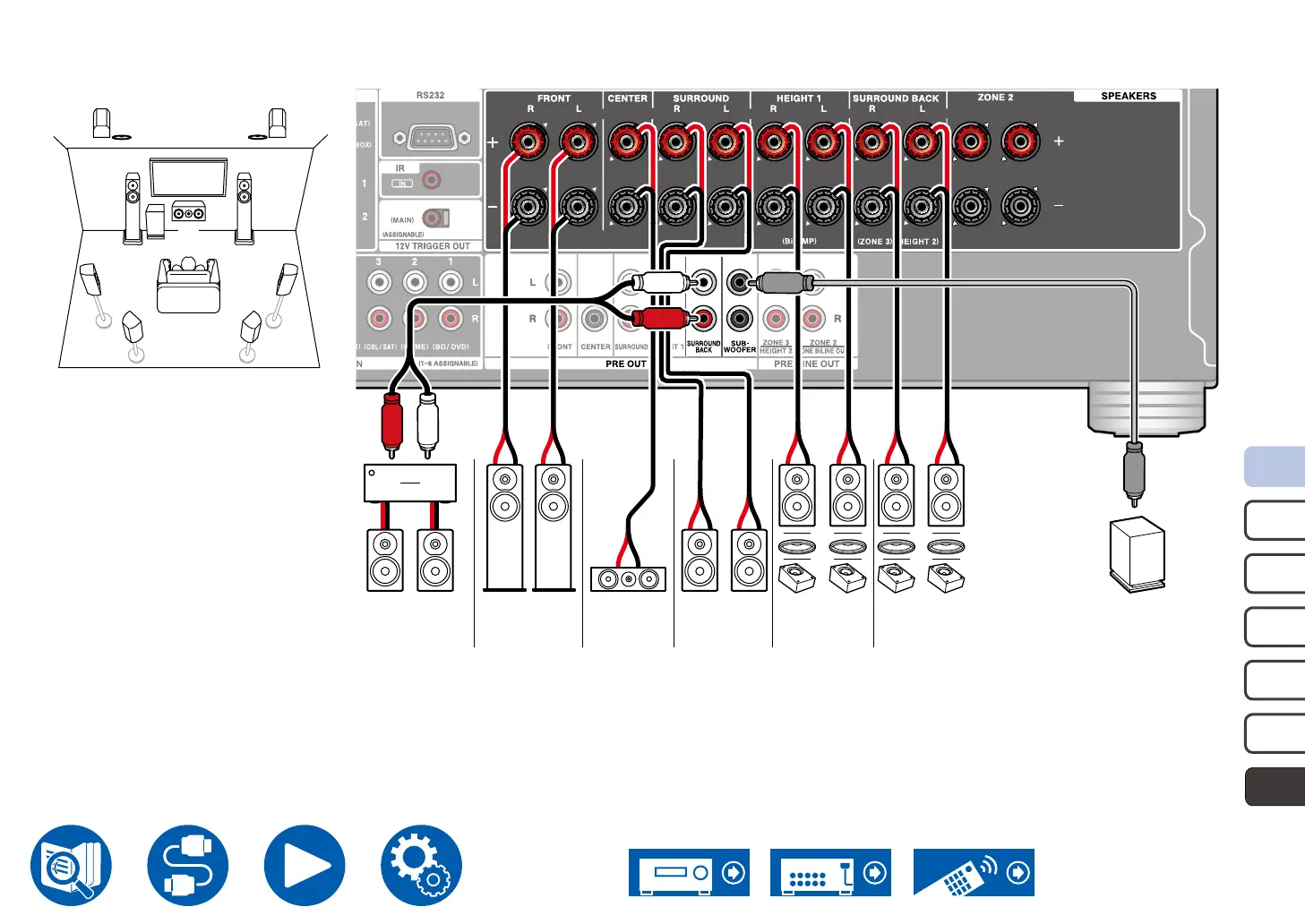

 7.1.4 Channel System
FL
FR
SL
SR
SBL SBR
SW
RHR
TMR
RHL
TML
C
FR FL HR2 HL2HR1 HL1SR SLSBR SBL
C
SW
MAIN ROOM
*1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers (Front)).
*2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers (Surround)).
*1 *2
