Onkyo TX-RZ50

201
Appendix
(European, Australian and Asian models)

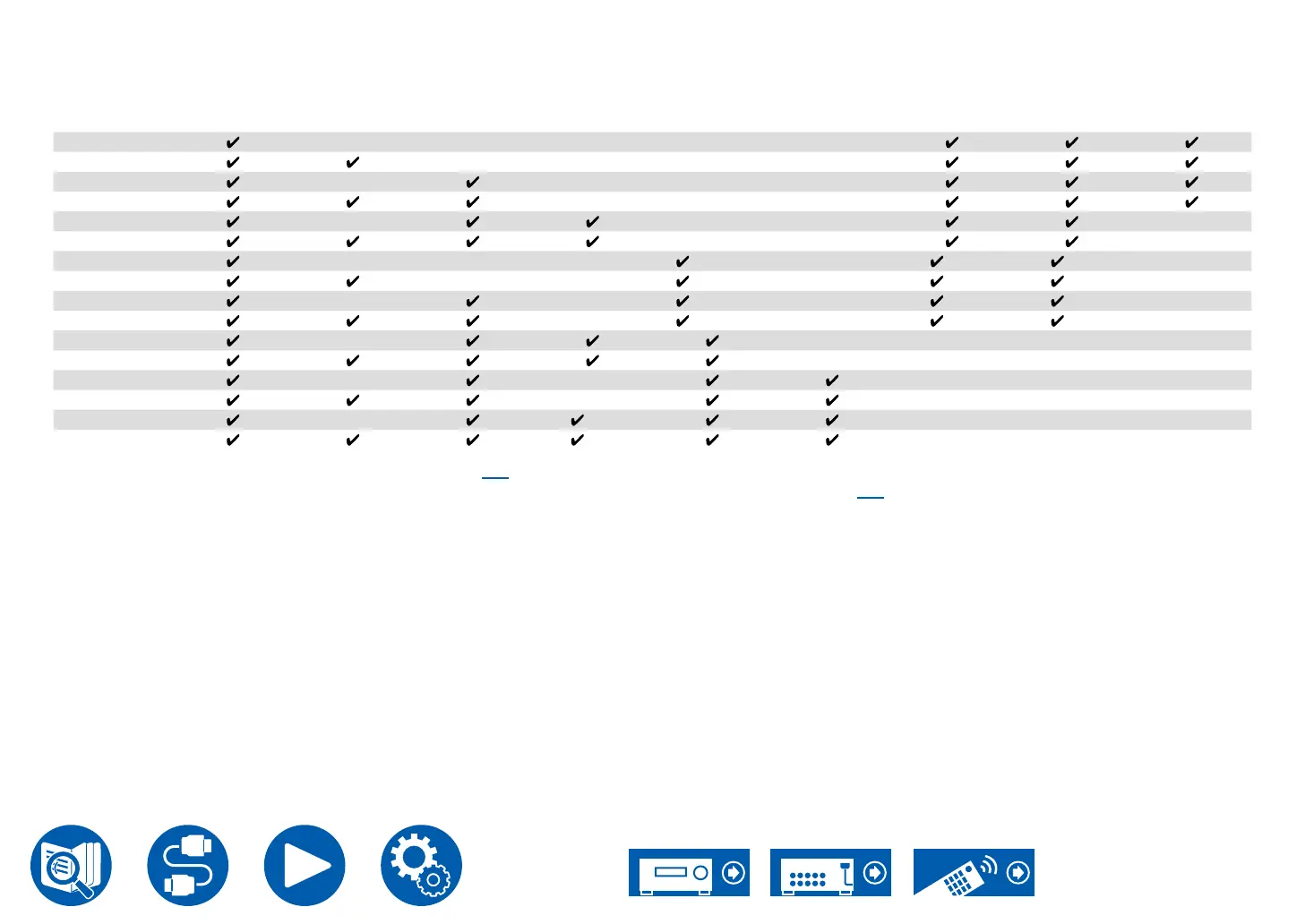

Speaker
Channels
FRONT CENTER SURROUND
SURROUND
BACK
HEIGHT 1 HEIGHT 2 Bi-AMP (*3)
ZONE 2 (*3)
(ZONE SPEAKER)
ZONE 3 (*3)
(ZONE SPEAKER)
2.1 c h
3.1 c h
4.1 ch
5.1 c h
6.1 ch (*1)
7.1 ch (*1)
2.1.2 ch (*2)
(*4) (*5) (*5) (*4)
3.1.2 ch (*2)
(*4) (*5) (*5) (*4)
4.1.2 ch (*2)
(*4) (*5) (*5) (*4)
5.1.2 ch (*2)
(*4) (*5) (*5) (*4)
6.1.2 ch (*1)
7.1.2 ch (*1)
4.1.4 ch (*1)
5.1.4 ch (*1)
6.1.4 ch (*1)
(*6)
7.1.4 ch (*1)
(*6)
(*1) The "Connecting an Integrated Amplier (ZONE 3)" ( →p72) function cannot be used.
(*2) When using Bi-AMP or ZONE 2 (ZONE SPEAKER), the "Connecting an Integrated Amplier (ZONE 3)" ( →p72) function cannot be used.
(*3) The Bi-AMP and ZONE speakers cannot be used simultaneously.
(*4) When using the ZONE 2 speakers, it is necessary to connect the height speakers to the SURROUND BACK terminal.
(*5) When using the Bi-AMP speakers, it is necessary to connect the Bi-AMP speakers to the HEIGHT 1 terminals, and the height speaker to the SURROUND BACK
terminals.
(*6) Use an analog audio cable to connect the power amplier to the PRE OUT SURROUND BACK jacks, then connect the surround back speakers to the power
amplier.
About the HEIGHT 1/HEIGHT 2
When connecting 2 sets of the height speakers, the combination of the height speakers that can be selected is as follows.
– Height 1 Speaker: Top Middle, Height 2 Speaker: Rear High
–
Height 1 Speaker: Front High, Height 2 Speaker: One of Rear High/Top Middle/Top Rear/Dolby Enabled Speaker (Surround)/Dolby Enabled Speaker (Surround
Back)
– Height 1 Speaker: Top Front or Dolby Enabled Speaker (Front), Height 2 Speaker: One of Rear High/Top Rear/Dolby Enabled Speaker (Surround)/Dolby Enabled
Speaker (Surround Back)
When only 1 set of the height speakers is connected, 1 from the height speakers types can be selected.
