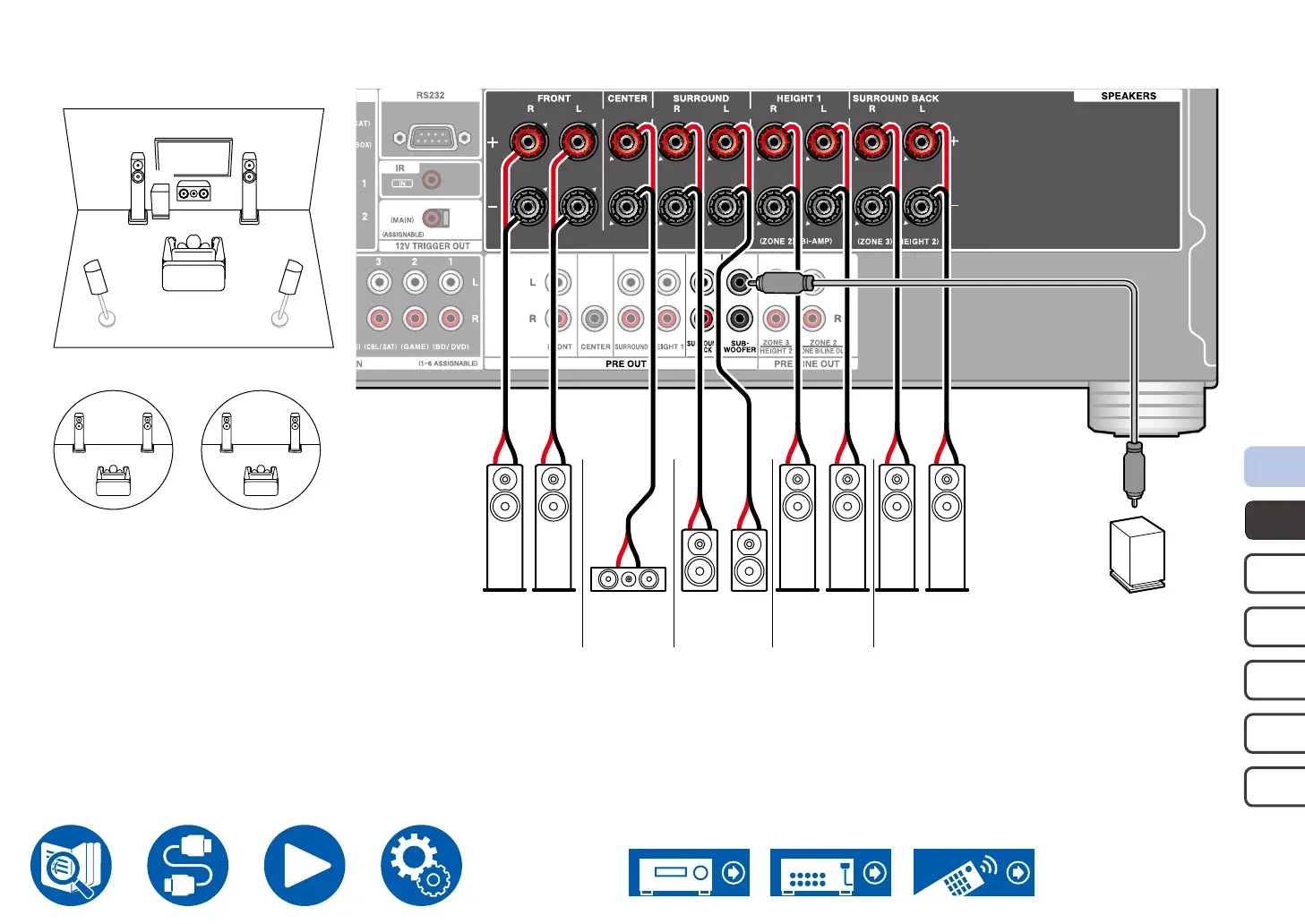

Speaker Connections
 5.1 Channel System + ZONE SPEAKER (European, Australian and Asian models)
FL(Z3)FR(Z3)
FL FR
SL SR
C
SW
FR FL
(
Z3
) (
Z3
)
FR
(
Z2
) (
Z2
)
FL
C
SR SLFR FL SR
SW
ZONE 2
FL(Z2)FR(Z2)
MAIN ROOM
ZONE 3
To output audio from an externally connected AV component to ZONE 3, use an analog audio cable for connection. Note that ZONE 3 output is not possible with the
connection using a HDMI cable, digital coaxial cable, or digital optical cable.
