4
1:
6
Chapter
30
6
Controls and displays

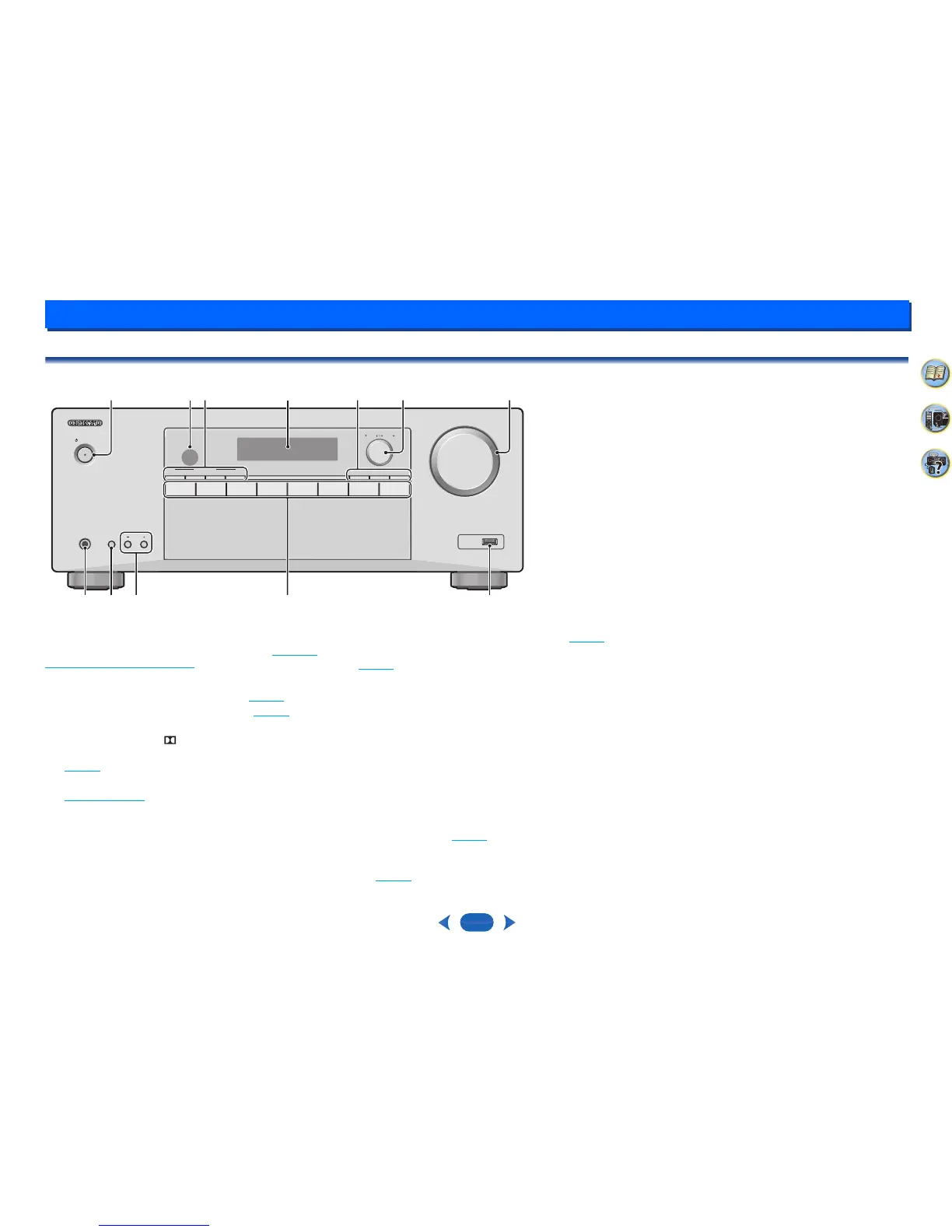

Front panel
1
ON/STANDBY
2
Remote sensor
Receives the signals from the remote control (see Operating
range of remote control on page 9).
3
Listening mode buttons
DIRECT
– Switches to the DIRECT mode (page 23).
STEREO
– Switches to the STEREO mode (page 23).
SURROUND
– Press for standard decoding and to switch
between the modes of Pro Logic II and NEO:6.
DSP
– Switches between the various surround modes
(page 23
).
4
Character display
See Display on page 7.
5
HOME
/
ENTER
/
RETURN
buttons
HOME
– Use to access the Home Menu.
ENTER
– Press to confirm the specified settings.
RETURN
– Press to confirm and exit the current menu
screen.
6
Tuner control dial
TUNING
– Used to find radio frequencies (page 21).
PRESET
– Use to select preset radio stations
(page 21
).
7
MASTER VOLUME
dial
8
PHONES jack
Use to connect headphones. When the headphones are
connected, there is no sound output from the speakers.
9
TONE
Switches the display between Bass settings and Treble
settings.
10
TONE –/+
Press to change the settings while the Bass or Treble
settings are displayed.
11
INPUT SELECTOR
buttons
Selects an input source (page 18).
12
USB terminal
Use to connect your USB mass storage device as an audio
source (page 17
).
C
D
TUNER
T
V
B
D
SAT/CBL
DVD GAME USB
SURROUNDSTEREODIRECT
LISTENING MODE
HOME ENTER RETURN
TUNING PRESET
DSP
TONE
AV RECEIVER
TX
-
SR25
2
PHONES
ON
/
STANDBY
MASTER VOLUME
USB
5V
/
0.5A
34
1
5726
8 91110 12
