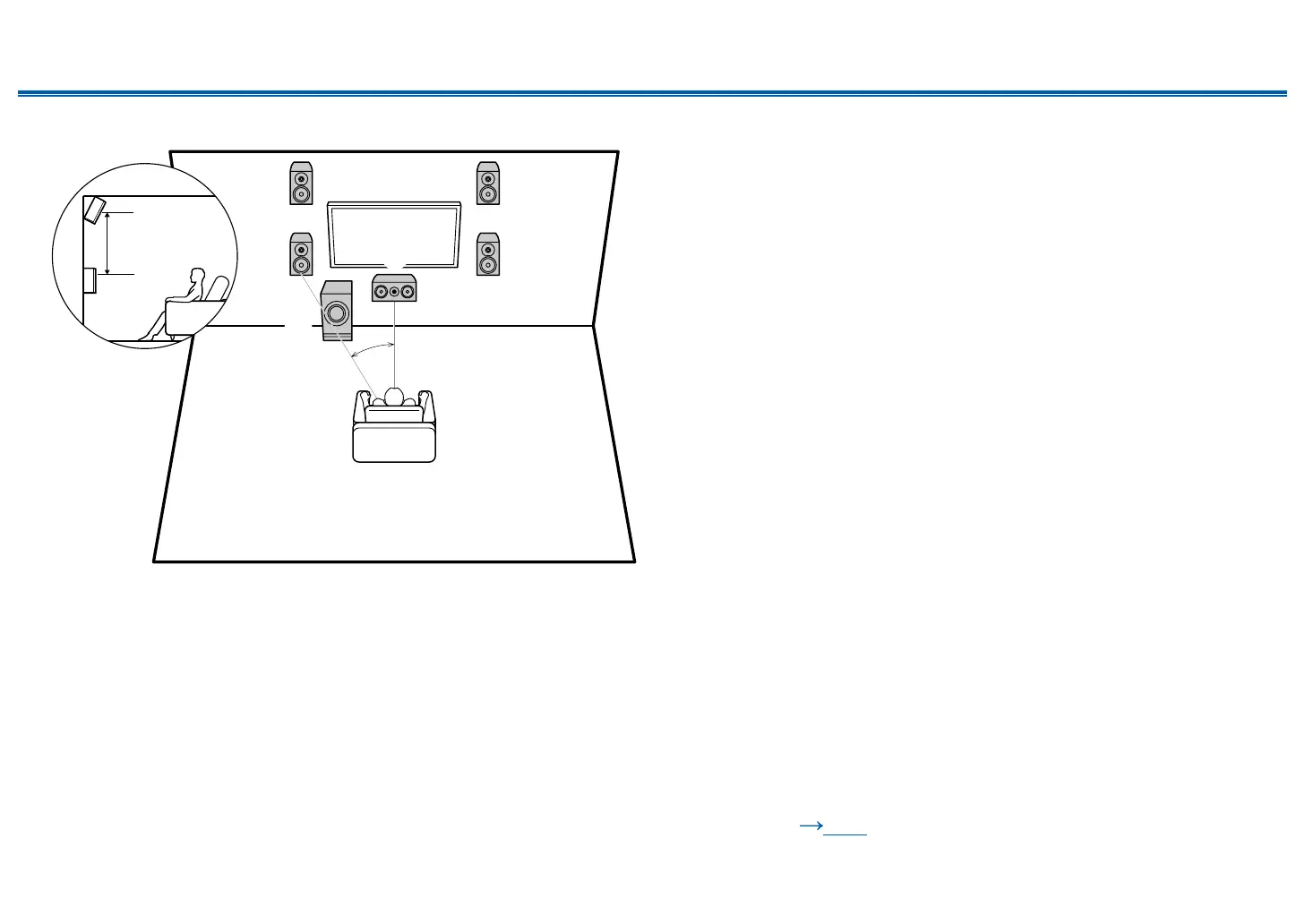

❏ Front High Speakers Installation Example
a
3
12
45
6
a: 22° to 30°
3´ (0.9 m)
or more
This is a 3.1-channel system consisting of front speakers, a center speaker, and
a powered subwoofer, with the addition of front high speakers, a type of height
speaker. Installing the height speakers will enrich the sound eld feeling in the
upper space. Front high speakers should be situated at least 3'/0.9 m higher than
the front speakers.
They should also be put directly above the front speakers, angled to face the
listening position.
1,2 Front Speakers
3 Center Speaker
4,5 Front High Speakers
6 Powered Subwoofer
❏ Speaker Layouts and Selectable Listening
Modes ( p48)
