Onkyo TX-SR574

33
First Time Setup
To enjoy Dolby Digital and DTS, you must connect your
DVD player to the AV receiver digitally (coaxial or opti-
cal).
Here are the default assignments.
With this function, you can change the digital inputs
assign. If, for example, you connect your DVD player to
the DIGITAL IN OPTICAL 1 input (OPT1), you’ll need
to assign it to the DVD input source, as follows.
Note:
Make sure that components connected digitally are con-
figured to output digital audio. Refer to the relevant man-
uals.
If you connect an -capable Onkyo MiniDisc
recorder, CD recorder or next generation HDD-compat-
ible component to the TAPE IN/OUT or VIDEO 2 IN
jacks, for to work properly, you must change this
setting.
This setting can only be changed on the AV receiver.
Note:
HDD can be selected for the TAPE input selector or
VIDEO 2 input selector, but not both at the same time.

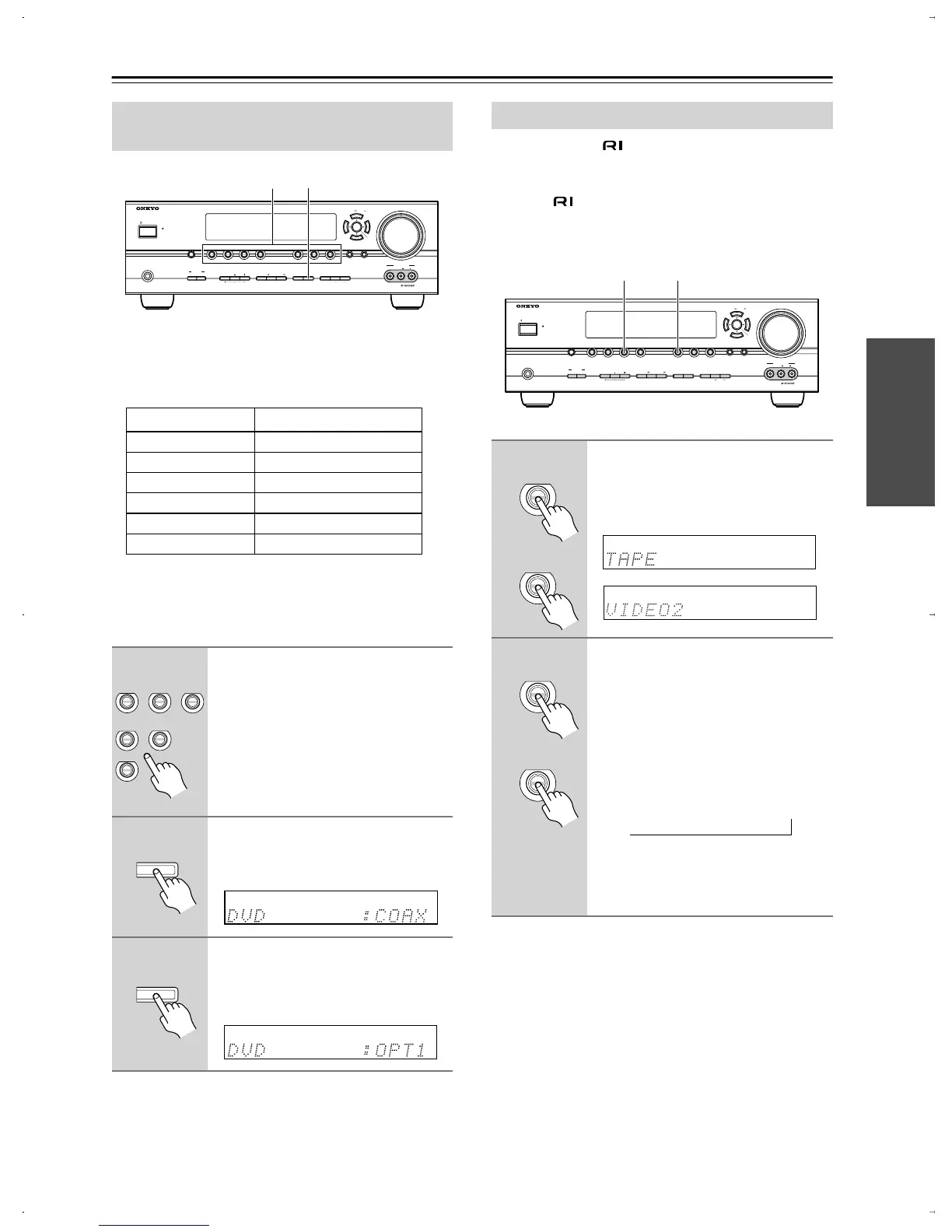

Assigning Digital Inputs to Input
Sources
Input selector
Default assignment
DVD COAX
VIDEO 1 OPT 1
VIDEO 2 OPT 2
VIDEO 3 - - - -
TAPE - - - -
CD OPT 3
1
Press the input selector button
for the input source that you want
to assign.
(Digital inputs cannot be assigned to
the TUNER input source.)
2
Press the [DIGITAL INPUT]
button.
The current assignment appears.
3
Press the [DIGITAL INPUT] but-
ton repeatedly to select COAX,
OPT1, OPT2, OPT3, or “– – – –”
(analog).
MASTER VOLUME
VIDEO
STANDBY
TONE
DISPLAYSTEREO DIMMER MEMORY
DIGITAL
INPUT
TUNING
MODEAB
SPEAKERS
TUNERTAPE
VIDEO
3VIDEO 2VIDEO 1
VCR
DVDMULTI CH C
D
SETUPRETURN
CLEAR
LISTENING MODE
AUDIOLR
VIDEO 3 INPUT
STANDBY/ON
PHONES
TUNING PRESET
ENTER
1 2, 3
TAPE
C D
VIDEO 3
DVD
VIDEO 1
VCR
VIDEO 2
DIGITAL
INPUT
DIGITAL
INPUT
Changing the Input Display
1
Press the [TAPE] or [VIDEO 2]
input selector button so that
“TAPE” or “VIDEO2” appears on
the display.
2
Press and hold down the [TAPE]
or [VIDEO 2] input selector but-
ton (about 3 seconds) to change
the setting.
Repeat this step to select MD, CDR, or
HDD.
For the TAPE input selector, the setting
changes in this order:
TAPE
→
MD
→
CDR
→
HDD
For the VIDEO 2 input selector, the set-
ting changes in this order:
VIDEO 2
↔
HDD
MASTER VOLUME
VIDEO
STANDBY
TONE
DISPLAYSTEREO DIMMER MEMORY
DIGITAL
INPUT
TUNING
MODE
AB
SPEAKERS
TUNERTAPE
VIDEO
3VIDEO 2VIDEO 1
VCR
DVDMULTI CH C
D
SETUPRETURN
CLEAR
LISTENING MODE
AUDIOLR
VIDEO 3 INPUT
STANDBY/ON
PHONES
TUNING PRESET
ENTER
1, 21, 2
TAPE
VIDEO 2
or
TAPE
VIDEO 2
or
→
