7
En

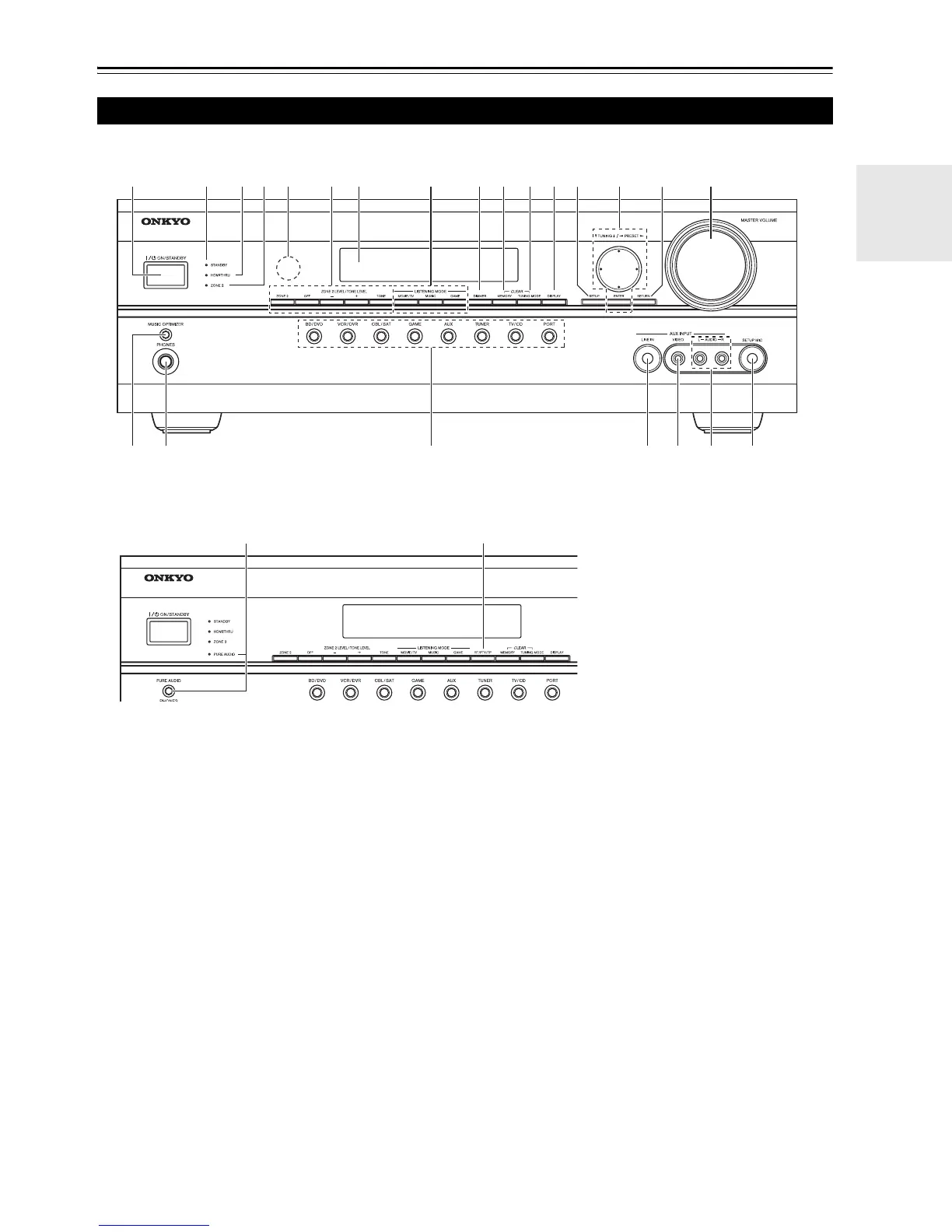

Front & Rear Panels
North American and Taiwan models
European, Australian and Asian models
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a ON/STANDBY button (➔ 19)
b STANDBY indicator (➔ 19)
c HDMI THRU indicator (➔ 46)
d ZONE 2 indicator (➔ 50)
e Remote control sensor (➔ 4)
f ZONE 2, OFF, ZONE 2 LEVEL/TONE LEVEL
and TONE buttons (➔ 48, 50 to 51)
g Display (➔ 8)
h LISTENING MODE buttons (➔ 29)
i DIMMER button (North American and Taiwan
models) (➔ 20)
j MEMORY button (➔ 26)
k TUNING MODE button (➔ 25)
l DISPLAY button (➔ 20)
m SETUP button (➔ 34)
n TUNING, PRESET (➔ 25 to 26), arrow and
ENTER buttons
o RETURN button
p MASTER VOLUME control (➔ 20)
q MUSIC OPTIMIZER button (North American
models) (➔ 47)
r PHONES jack (➔ 22)
s Input selector buttons (➔ 20)
t AUX INPUT LINE IN jack (➔ 16)
u AUX INPUT VIDEO jack (➔ 16)
v AUX INPUT AUDIO jacks (➔ 16)
w SETUP MIC jack (➔ 23)
x PURE AUDIO button and indicator (European,
Australian and Asian models) (➔ 29)
y RT/PTY/TP button (European, Australian and
Asian models) (➔ 26)
Front Panel
a
stuwv
bcde fhg ijklmno p
r
q
x y
