Onkyo TX-SR578

8
En

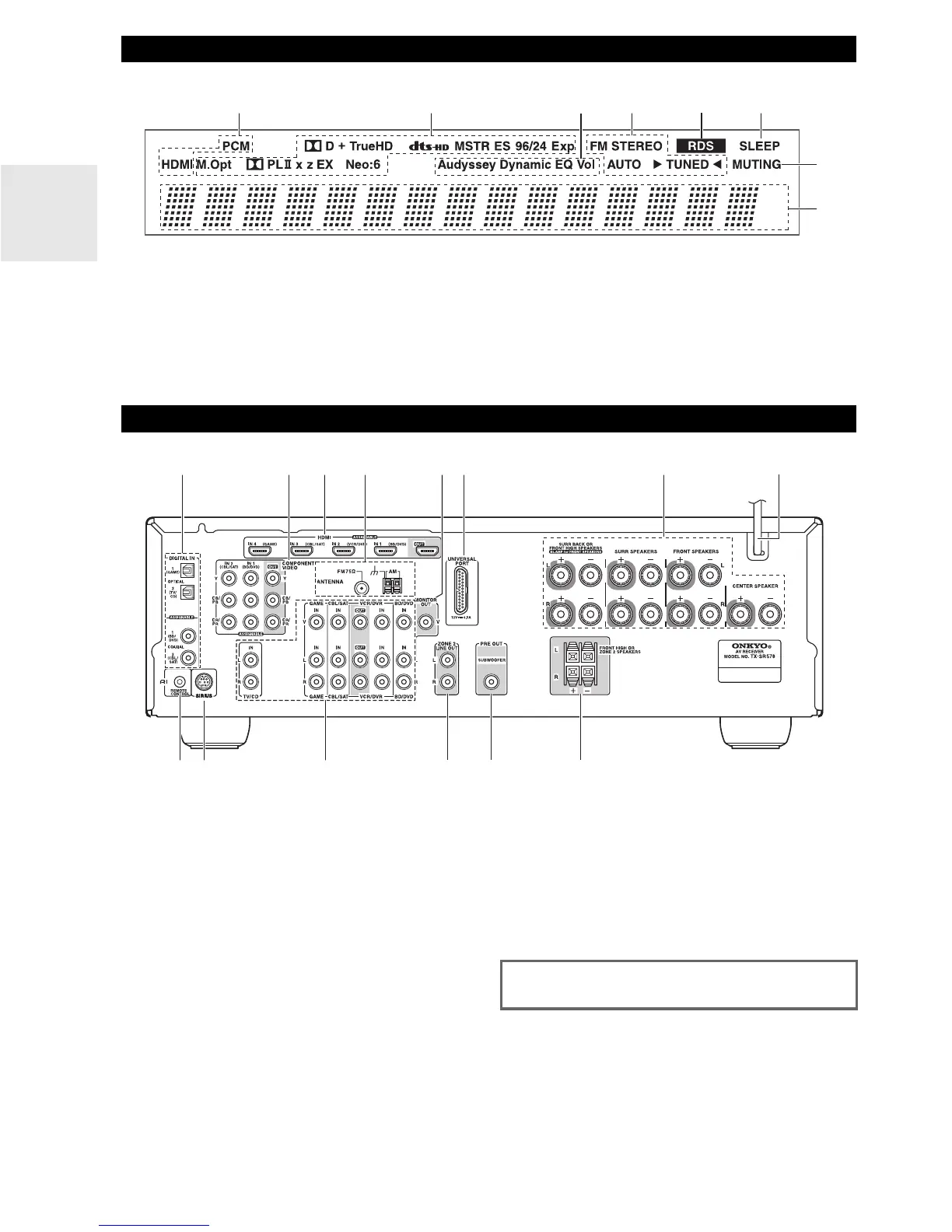

For detailed information, see the pages in parentheses.
a Audio input indicators
b Listening mode and format indicators (➔ 29, 47)
c Audyssey indicators (➔ 22, 40)
d Tuning indicators (➔ 25)
e RDS indicator (excluding North American models)
(➔ 26)
f SLEEP indicator (➔ 21)
g MUTING indicator (➔ 21)
h Message area
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e MONITOR OUT V jack
f UNIVERSAL PORT jack
g SPEAKERS terminals
(CENTER, FRONT, SURR, SURR BACK OR
FRONT HIGH)
h Power cord
i u REMOTE CONTROL jack
j SIRIUS antenna jack (North American models)
k Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, TV/CD IN)
l ZONE 2 LINE OUT jacks
m SUBWOOFER PRE OUT jacks
n FRONT HIGH OR ZONE 2 SPEAKERS terminals
Display
ab ef
h
g
cd
Rear Panel
acb
d
h
ef
g
ij
klm
n
See “Connecting the AV Receiver” for connection infor-
mation (➔ 11 to 18).
