IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -50
Q8501 : SiI9033 (HDMI Receiver)
SiI9030
HDMI Connector
HDMI Connector Port 1
HDMI Connector Port 0
EDID
SiI9033
EDID
Micro-
controller
Audio DSP
Audio DAC
TMDS
DDC
Digital Video
I2S
SPDIF
MCLK
I2C
DDC
DDC
TMDS
TMDS
DDC
DDC
Other Au
dio Sources
Amplifier

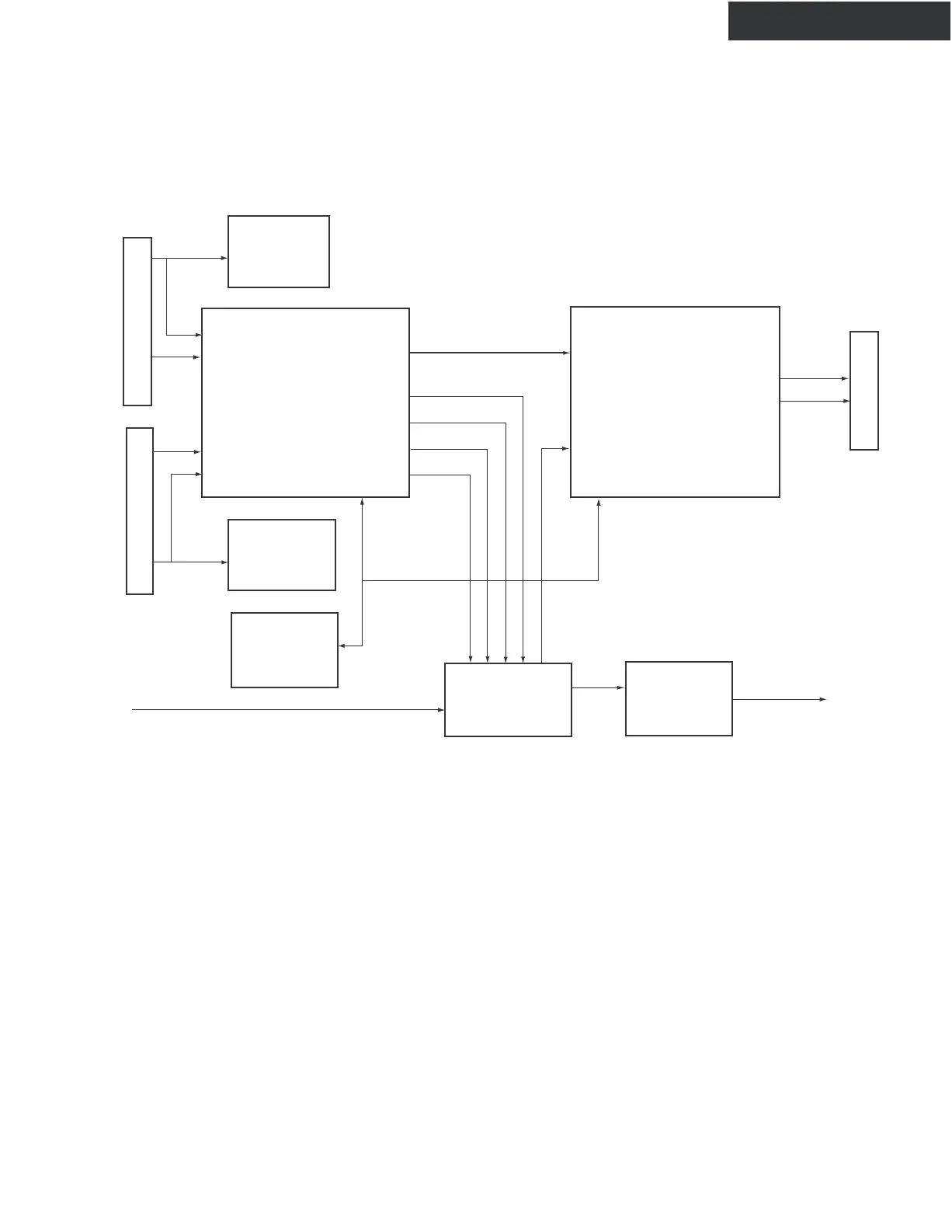

SYSTEM APPLICATION
HDMI
RECEIVER
HDMI
TRANSMITTER
0
1
I2S
I2S
DSD
