Onn 100043839 - Wall Mounting Installation; Drilling and Bracket Installation

8
WARNING: Before attempting to t the Sound Bar to the wall, if you are in
any way unsure about how or where to t the Sound Bar you should employ
a qualied person to install your Sound Bar.
IMPORTANT: The ttings supplied with your Sound Bar may not be suitable
for all types of wall. Please consult a professional for advice before drilling any
holes if you are in any doubt.
IMPORTANT: Mark the position on the wall that you want the Sound Bar to be
tted to and check that they align with the holes in the brackets before drilling
any holes.

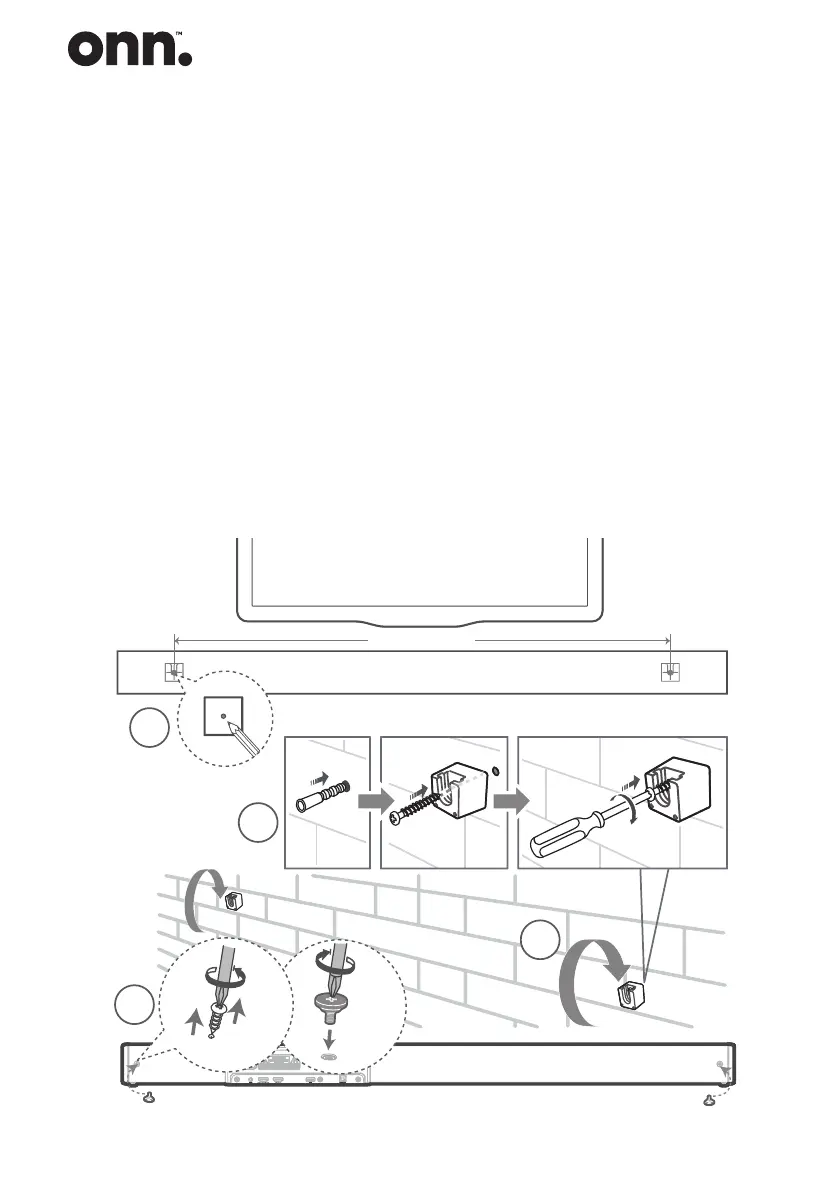

Fitting the wall brackets
1. Drill 2 parallel holes (Ø 5.5-6 mm each according to wall type) in the wall.
The distance between the holes should be 905 mm (35.6”).
2. Insert the supplied wall anchors into 2 screw holes on the wall. Insert the
supplied wall bracket screws through the wall brackets into the wall anchors.
Fix and tighten the screws on the wall.
1
4
3
2
905 mm (35.6”)
