ALT connector:
4: Black (A+)： 1A
3: Green (A-)： 1B
2: Blue (B-): 2B
1: Red (B+)： 2A
AZM connector:
1: Black (A+)： 1A
2: Green (A-)： 1B
3: Blue (B-): 2B
4: Red (B+)： 2A

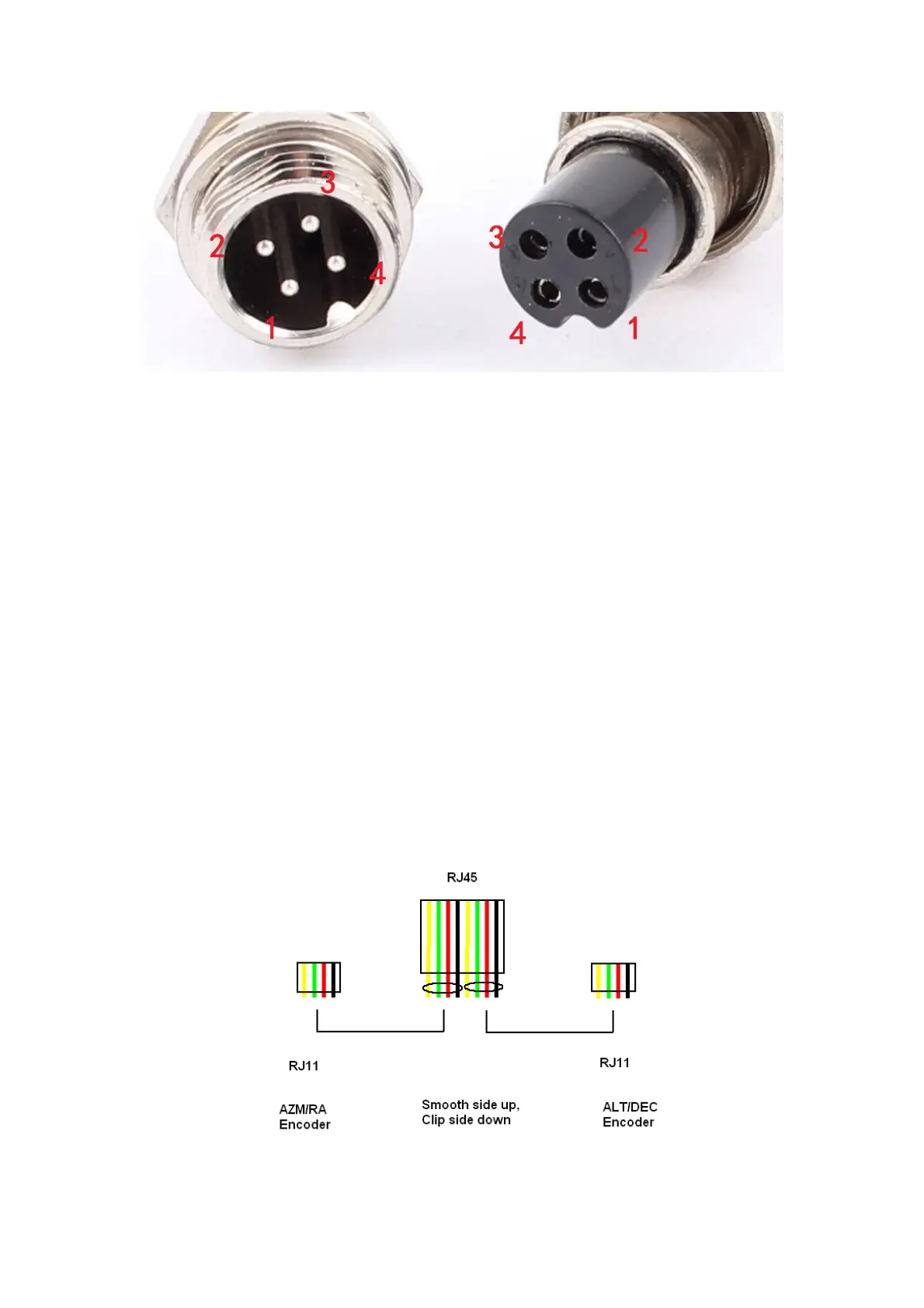

Figure 1:Mount and Motor Encoder Connections
G: Black, Ground
