4. Locking Toggle Power Switch: This switch features a safety mechanism to
prevent accidental toggling. To change the switch positions, the toggle actuator
must first be pulled upward (or outward) in a "pull-to-unlock" motion. Only then
can the switch's position be altered.
5. Auxiliary Port (For limit switches)
6. Optional Rotator Motor Port
7. Optional Focuser Motor Port
8. Power Supply Socket (21.-2.5mm, center positive)
9. ALT Axis Motor Port
10. AZM Axis Motor Port

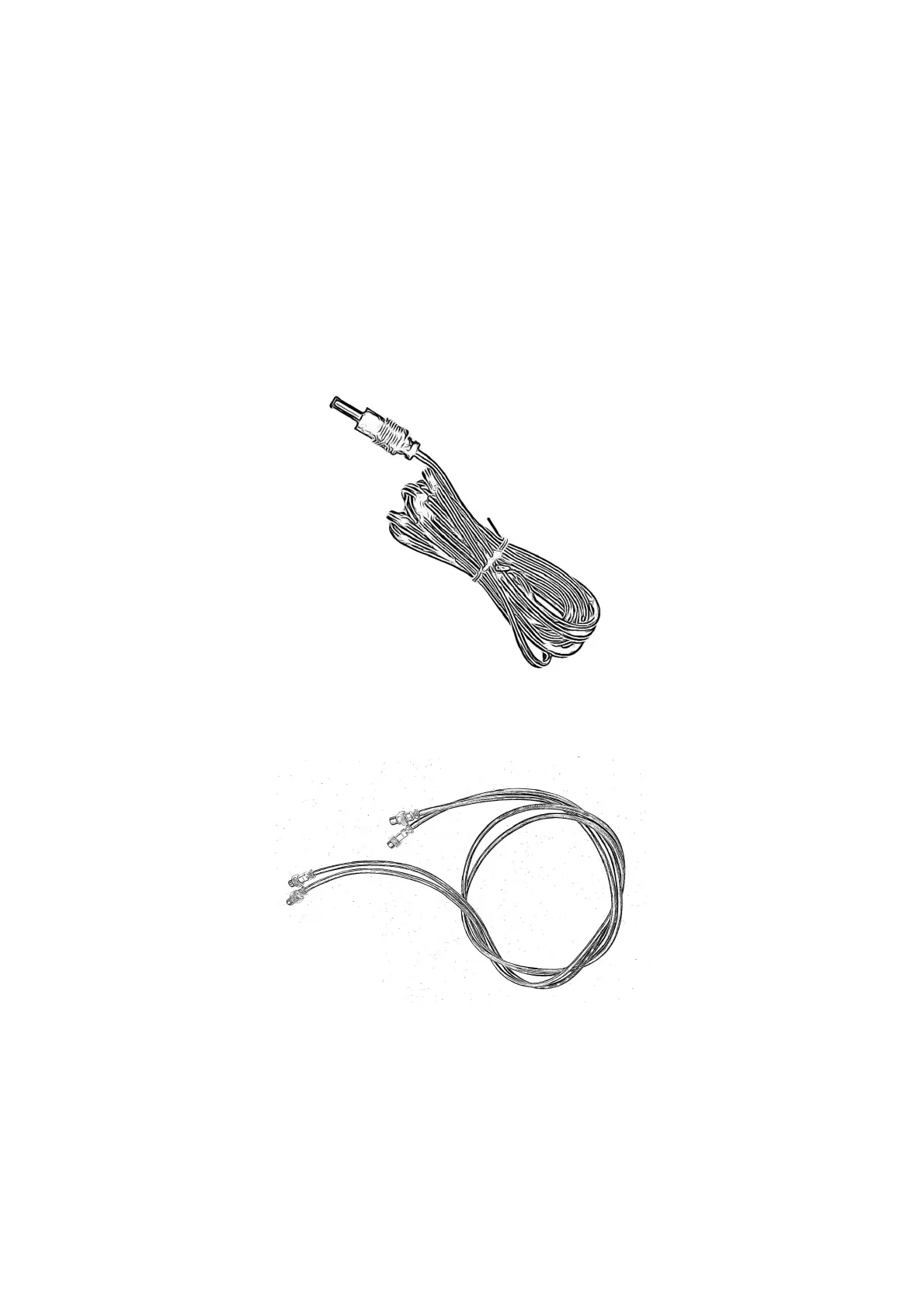

Power Cable
Motor Cables
7
