STANDARD CONFIGURATIONS 
WIRING THE CORE SERIES 24V 4-DOOR SMART HUB 
The Core Series 24V 4-Door Smart Hub (4ENT-SYS-24V) uses an FPV4 to power the 
Core and 4-Port Board. 



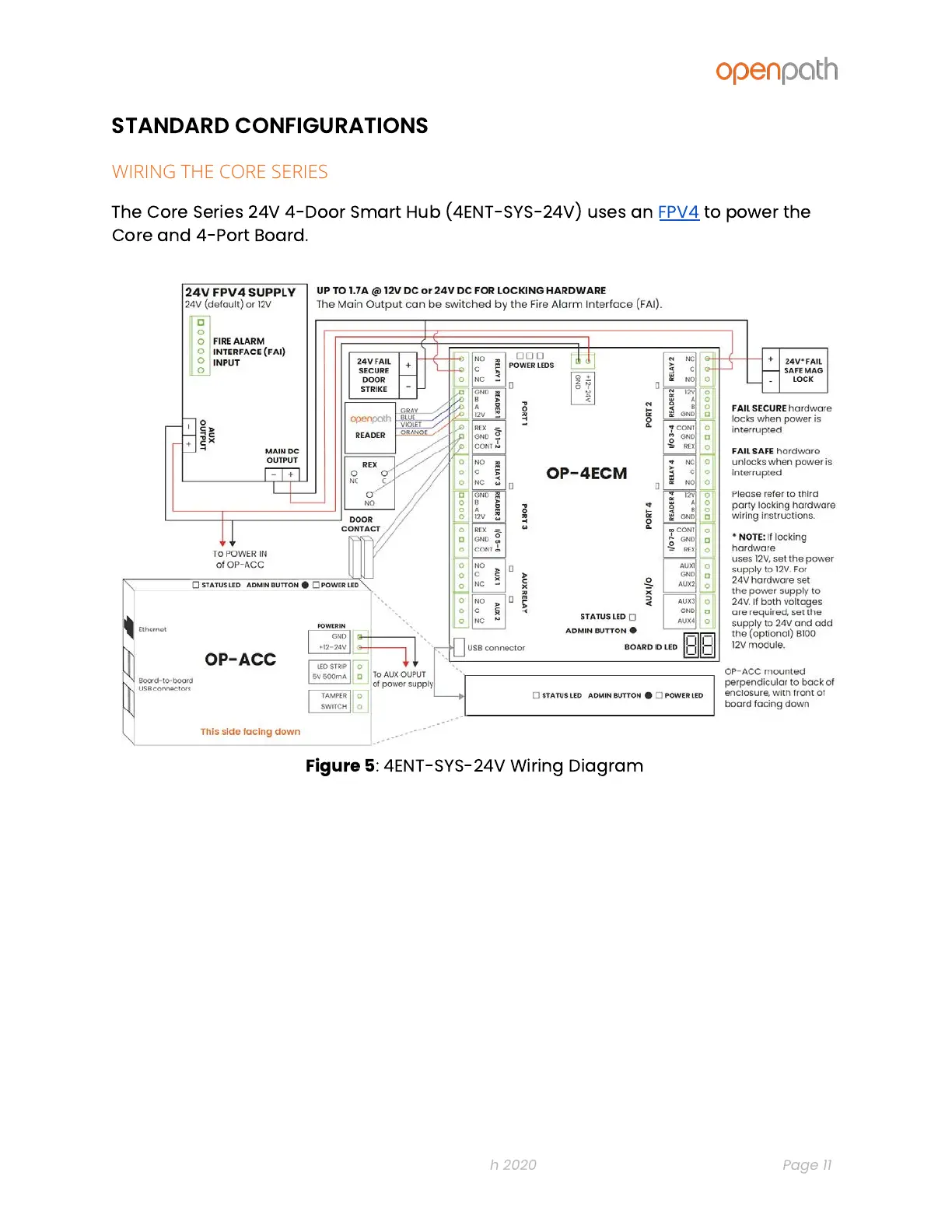

Figure 5 : 4ENT-SYS-24V Wiring Diagram 
 

