WIRING THE REX WITH THE ELECTROMAGNETIC LOCK 
For safety-related applications, you must wire the REX directly to the electromagnetic 
lock. You can wire additional REX switches and sensors to the REX inputs on the ACU, 
as shown in figure 10 . 


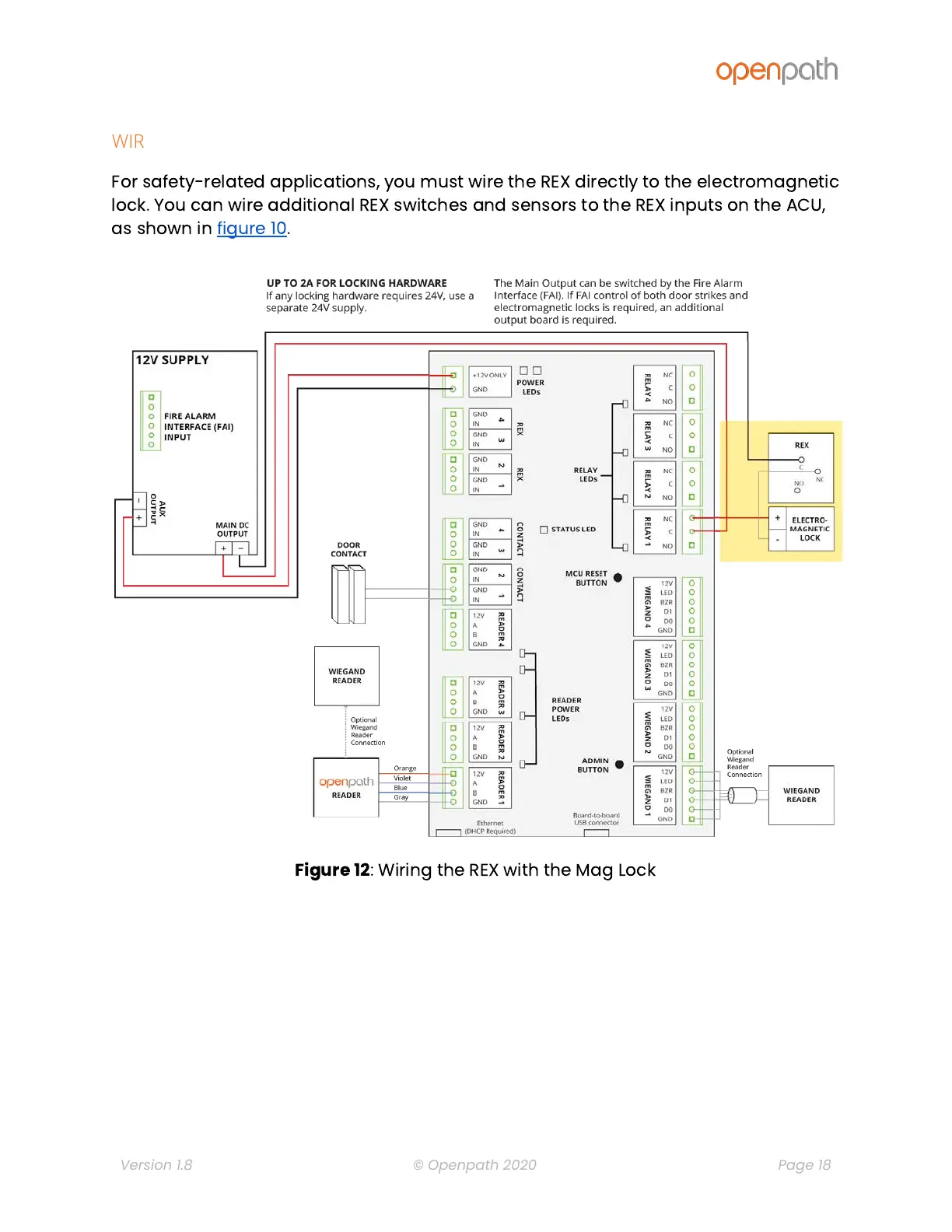

Figure 12 : Wiring the REX with the Mag Lock 
 

