WIRING THE CORE SERIES 12/24V 4-DOOR SMART HUB 
The Core Series 12/24V 4-Door Smart Hub (4ENT-SYS-1224V) uses an FPV4 to power 
the Core and 4-Port Board, a B100 secondary power supply, and a C4 Control Module 
to power 12-24V locking hardware. 



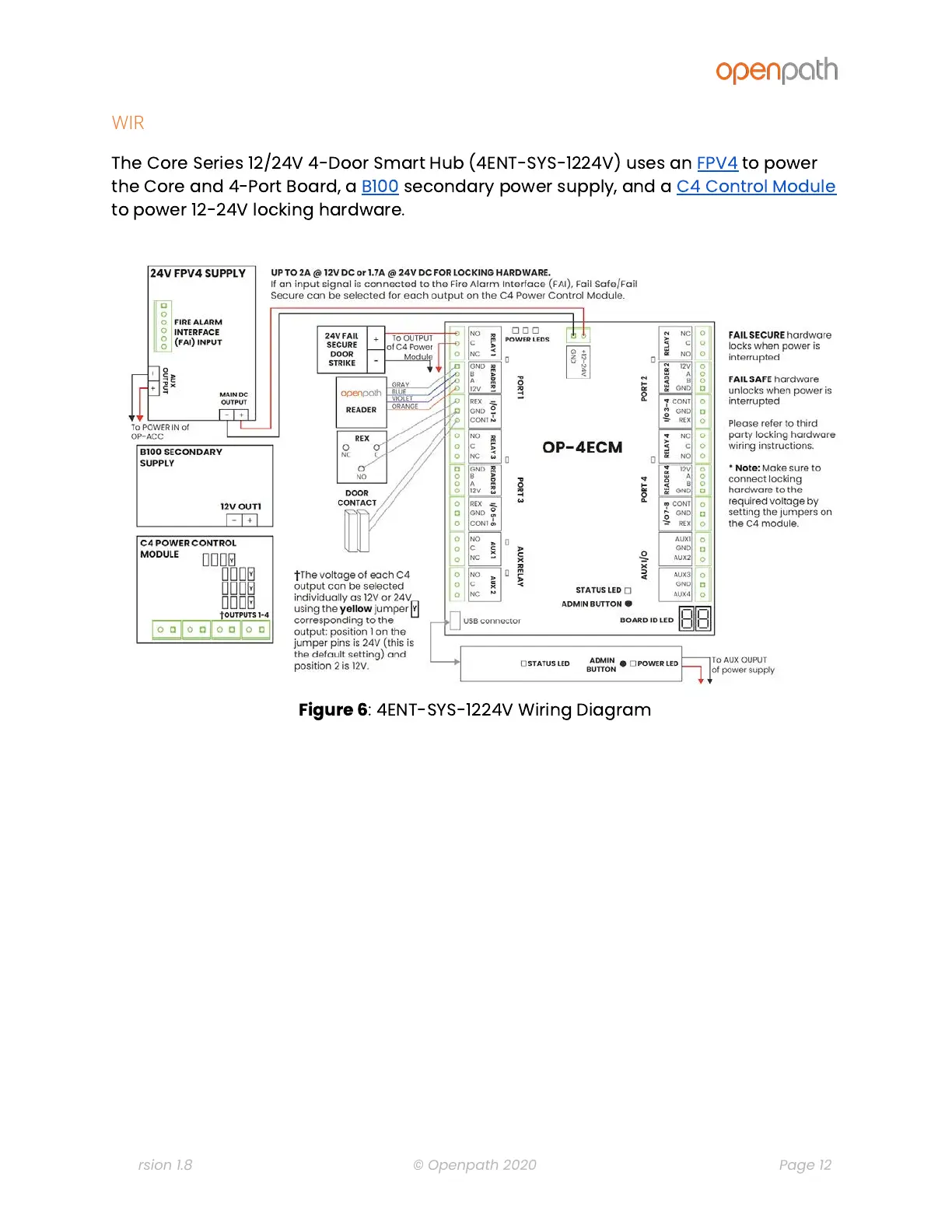

Figure 6 : 4ENT-SYS-1224V Wiring Diagram  

