WIRING WITH THE 12/24V POWER SUPPLY 
The 12/24V Smart Hub ACU (OP-4ESH-24V) uses an FPV4 to power 24V locking 
hardware, a B100 secondary power supply to power the ACU Board, and a C4 Control 
Module to power 12V locking hardware. 


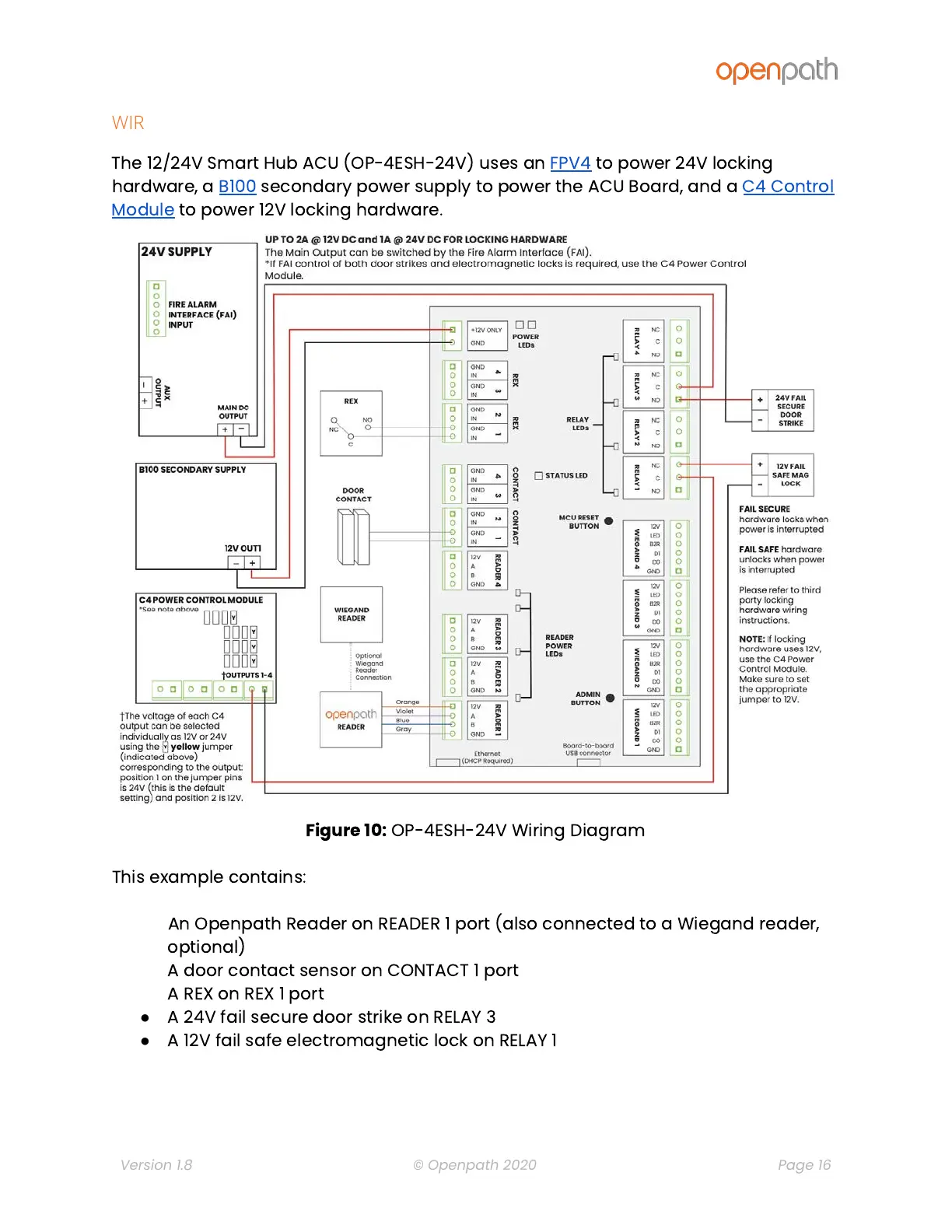

Figure 10 : OP-4ESH-24V Wiring Diagram 

This example contains: 

● An Openpath Reader on READER 1 port (also connected to a Wiegand reader, 
optional) 
● A door contact sensor on CONTACT 1 port 
● A REX on REX 1 port 
● A 24V fail secure door strike on RELAY 3 
● A 12V fail safe electromagnetic lock on RELAY 1 


