All of this is configured as one Entry in the Openpath Control Center. We recommend 
matching port numbers (READER 1 with CONTACT 1, for example). When setting up 
Sites in the Control Center using Quick Start, Entries will default to matching READER 1 
with CONTACT 1, RELAY 1, and so on. For more complex Entry setups, you ’ ll need to 
manually add Controls to the Entry. For the example above, you ’ d need to add an 
additional Entry/Exit Hardware Control to the Entry. For more information, refer to the 
Openpath User Guide . 
WIRING THE REX WITH THE DOOR STRIKE 
Except where required by fire or safety codes, for convenience you can wire the REX 
in parallel with the Door Strike on the same Relay output. You can wire additional 
REXs to the REX inputs on the ACU, as shown in figure 10 . 



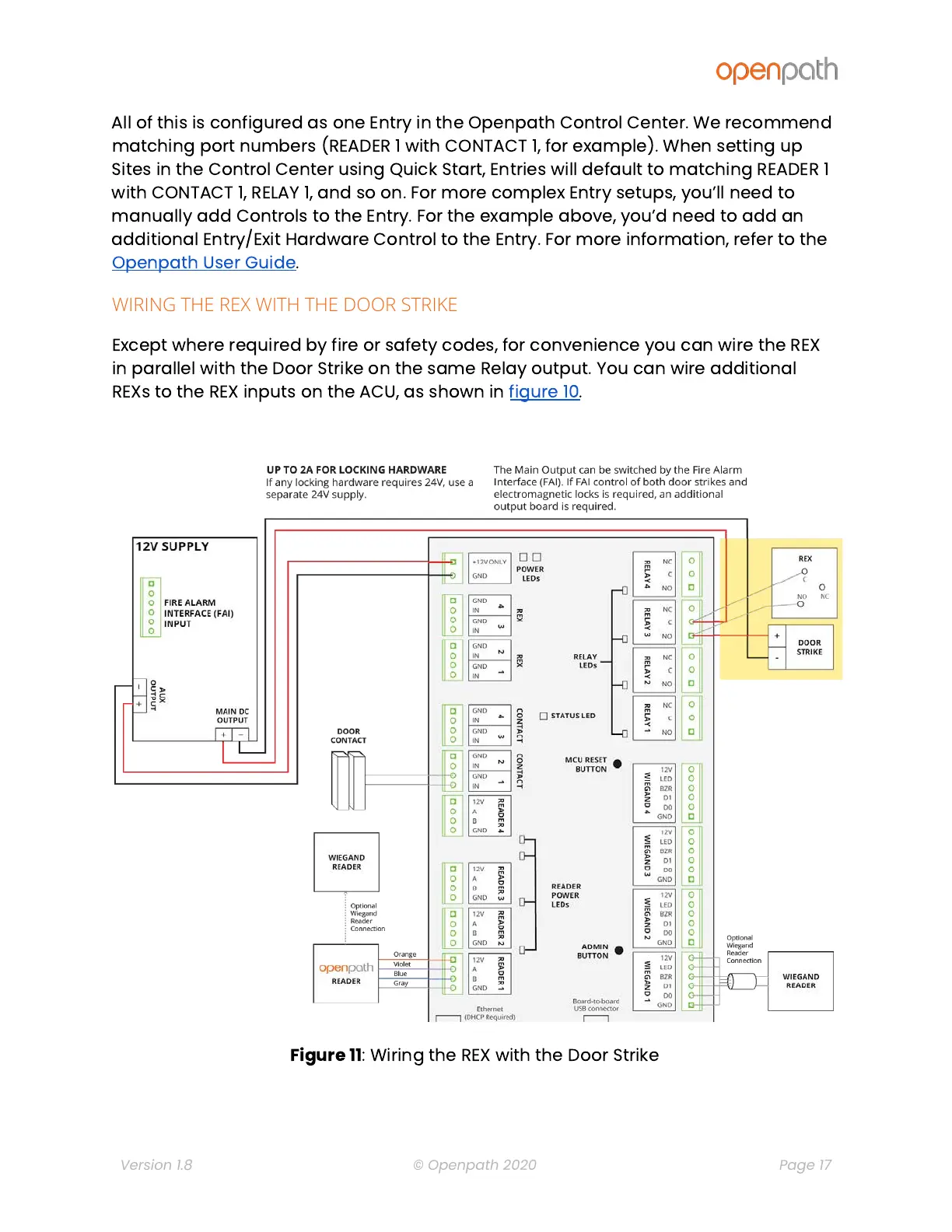

Figure 11 : Wiring the REX with the Door Strike 

