INSTALLING CONTROLLER BOARD WITH 12V LOCKING HARDWARE 

If

you

purchased

the

Controller

Board

separately

and

are

using

12V

locking

hardware,



we

recommend

using

the

FPV4-E1

power

supply/enclosure.





1. Follow

all

LifeSafety

Power

instructions

for

installing

the

power

supply

in

the



enclosure



2. Mount

the

Controller

Board

using

the

provided

back

plate



3. Connect

the

power

supply

to

the

Controller

Board



IMPORTANT:

Verify

that

the

jumper

on

the

FPV4

is

set

to

12V



4. Mount

the

enclosure

according

to

mounting

instructions

above







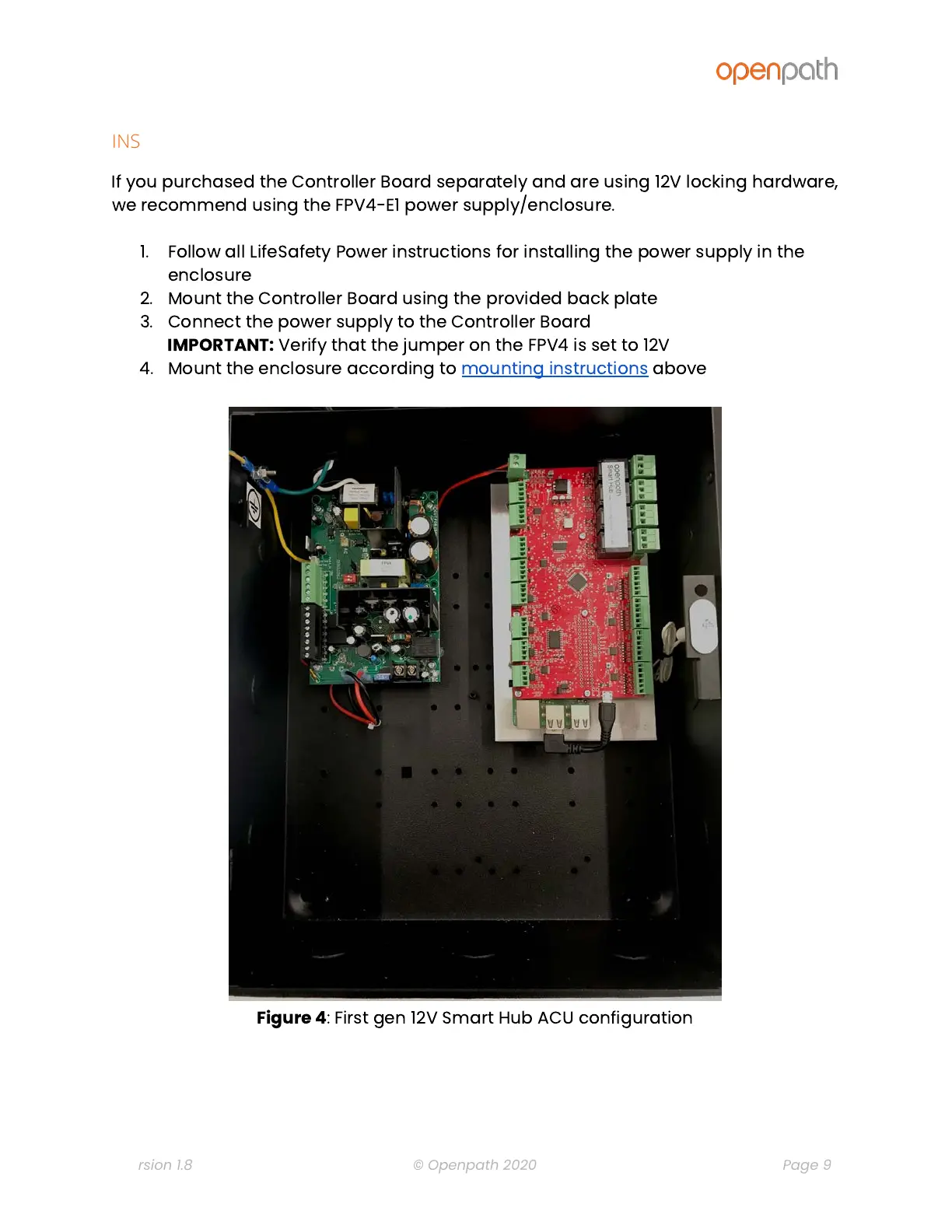

Figure

4

:

First

gen

12V

Smart

Hub

ACU

configuration







Version 1.8 

© Openpath 2020 

Page 9 


