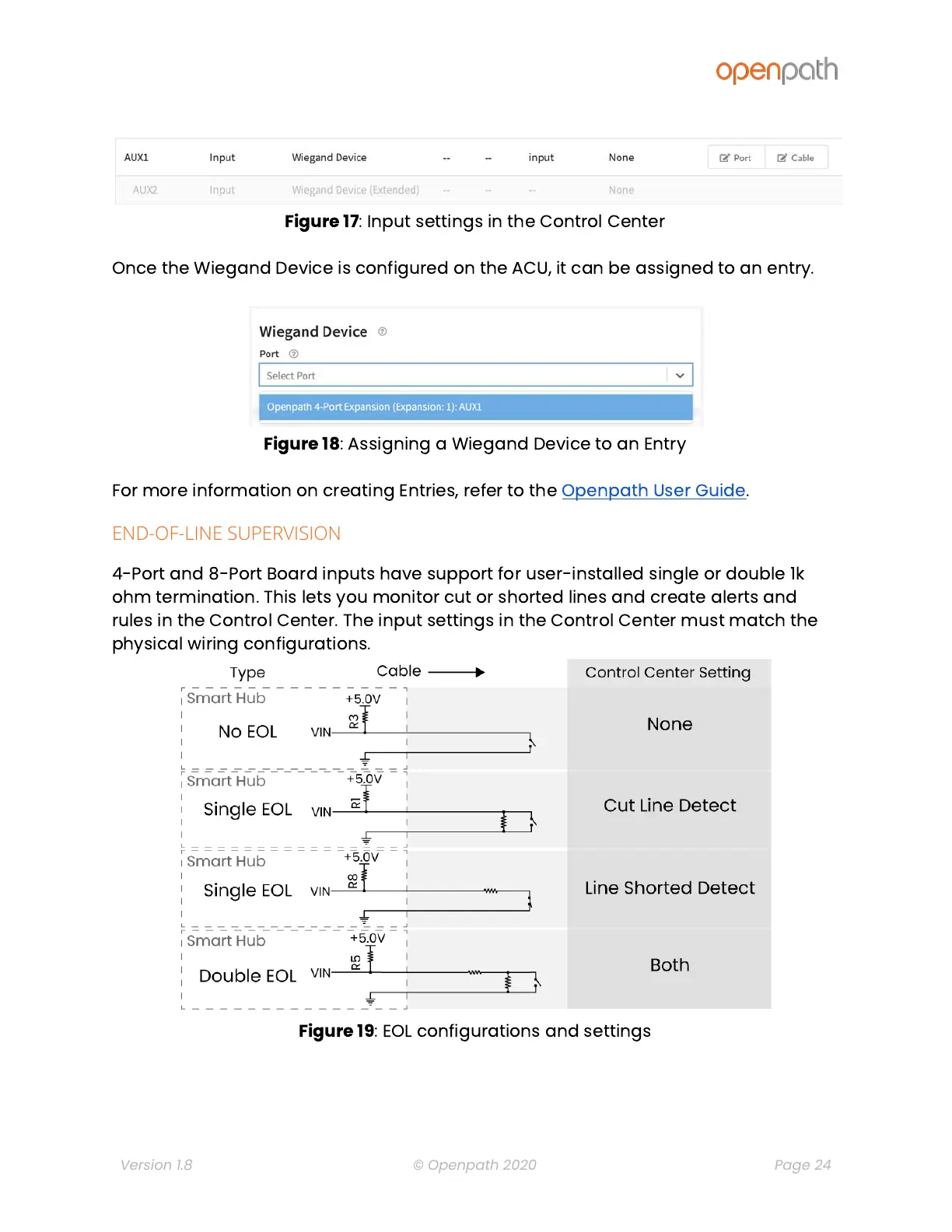

Figure
17
:
Input
settings
in
the
Control
Center
Once
the
Wiegand
Device
is
configured
on
the
ACU,
it
can
be
assigned
to
an
entry.
Figure
18
:
Assigning
a
Wiegand
Device
to
an
Entry
For
more
information
on
creating
Entries,
refer
to
the
Openpath
User
Guide
.
END-OF-LINE SUPERVISION
4-Port
and
8-Port
Board
inputs
have
support
for
user-installed
single
or
double
1k
ohm
termination.
This
lets
you
monitor
cut
or
shorted
lines
and
create
alerts
and
rules
in
the
Control
Center.
The
input
settings
in
the
Control
Center
must
match
the
physical
wiring
configurations.
Figure
19
:
EOL
configurations
and
settings
Version 1.8
© Openpath 2020
Page 24
