To
configure
EOL
in
the
Control
Center:
1. Go
to
control.openpath.com
and
log
in
2. Go
to
Hardware
>
ACU
Management,
then
click
on
the
ACU
to
edit
it
3. Click
on
the
Ports
tab
4. Click
Cable
next
to
the
port
with
EOL
configured
5. Select
the
appropriate
End
of
Line
Supervision
setting
from
the
dropdown,
then
click
Save
Troubleshooting
ACU
LEDS
READER
LEDS
LEGACY
WIRING
RESETTING
THE
ACU
PROVISIONING
THE
ACU
ACU
LEDS

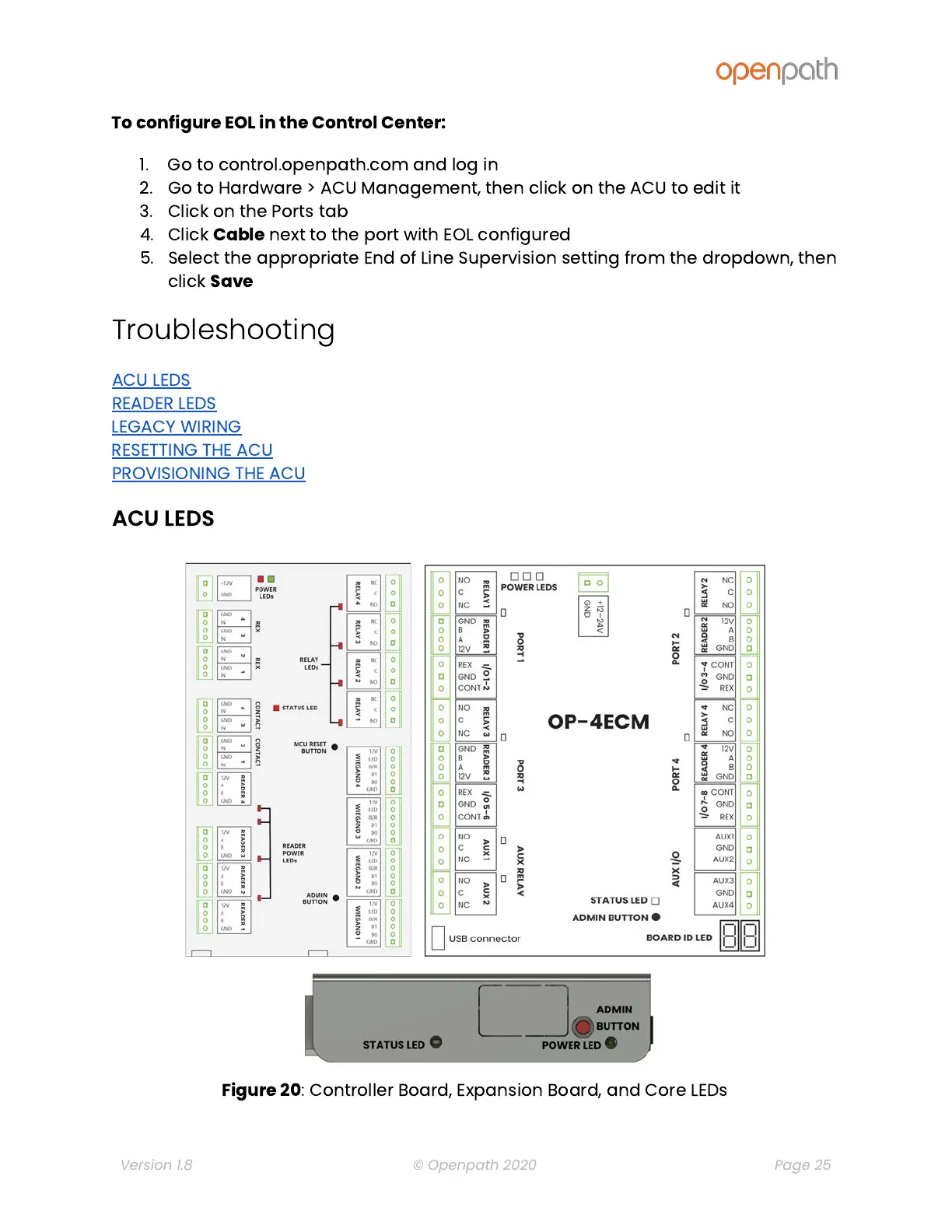

Figure
20
:
Controller
Board,
Expansion
Board,
and
Core
LEDs
