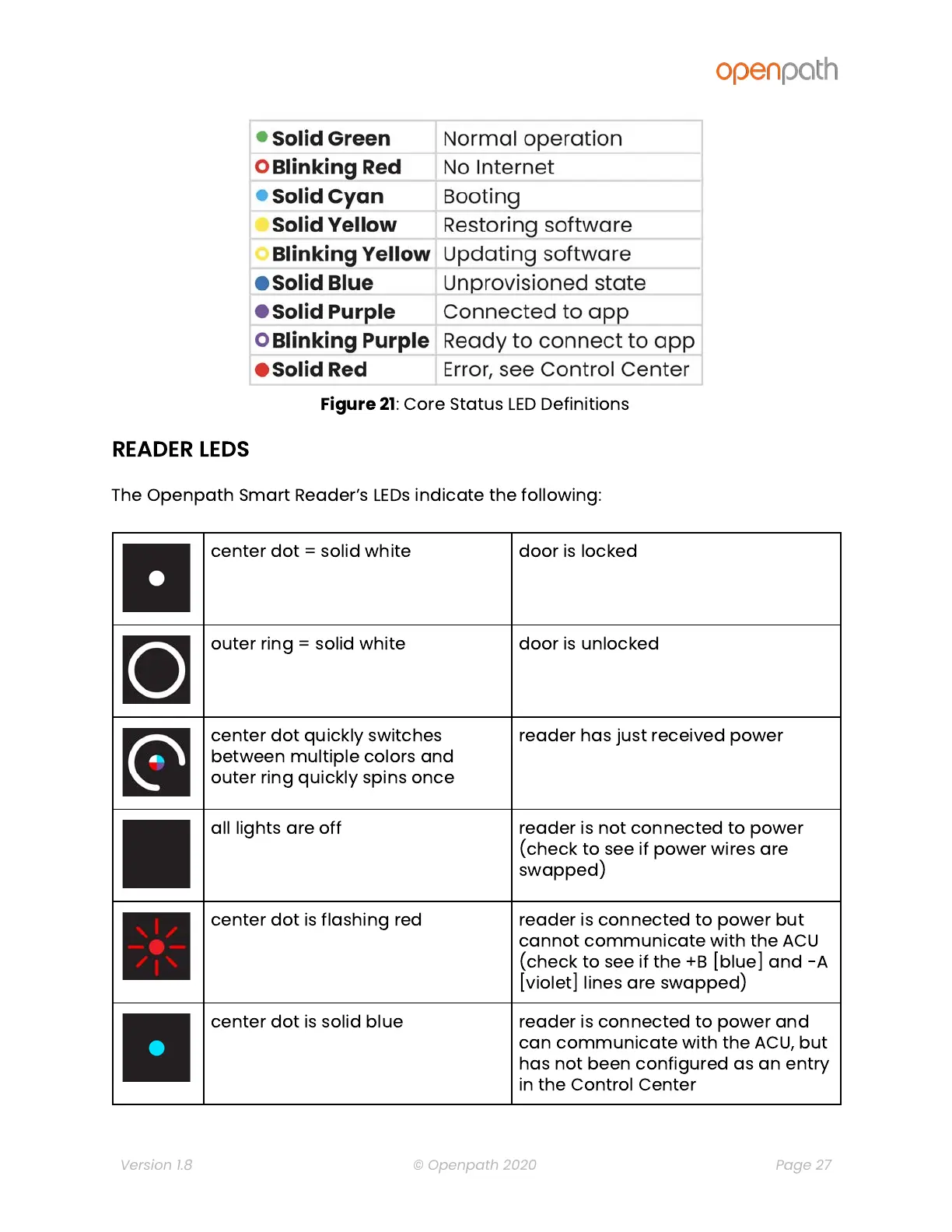

Figure 21 : Core Status LED Definitions 
READER LEDS 
The Openpath Smart Reader ’ s LEDs indicate the following: 


center dot = solid white 
door is locked 

outer ring = solid white 
door is unlocked 

center dot quickly switches 
between multiple colors and 
outer ring quickly spins once 
reader has just received power 

all lights are off 
reader is not connected to power 
(check to see if power wires are 
swapped) 

center dot is flashing red 
reader is connected to power but 
cannot communicate with the ACU 
(check to see if the +B [blue] and -A 
[violet] lines are swapped) 

center dot is solid blue 
reader is connected to power and 
can communicate with the ACU, but 
has not been configured as an entry 
in the Control Center 

