ELEVATOR
BUTTON
WIRING
Interrupt
one
of
the
signal
wires
from
each
button
and
run
through
the
C
and
NC
contacts
for
the
corresponding
relay
on
the
16
I/O
Elevator
Board.
GENERAL
PURPOSE
INPUTS
The
general
purpose
inputs
respond
to
voltages
between
3V
and
24V.
The
inputs
will
not
respond
directly
to
a
switch
or
relay
connection
to
ground.
To
use
these
inputs
with
a
switch
or
relay,
connect
one
side
of
the
switch
to
the
input
and
the
other
side
of
the
switch
to
a
supply
voltage
between
3V
and
24V.
If
desired,
you
can
add
a
1k
ohm
resistor
in
series
with
the
switch.

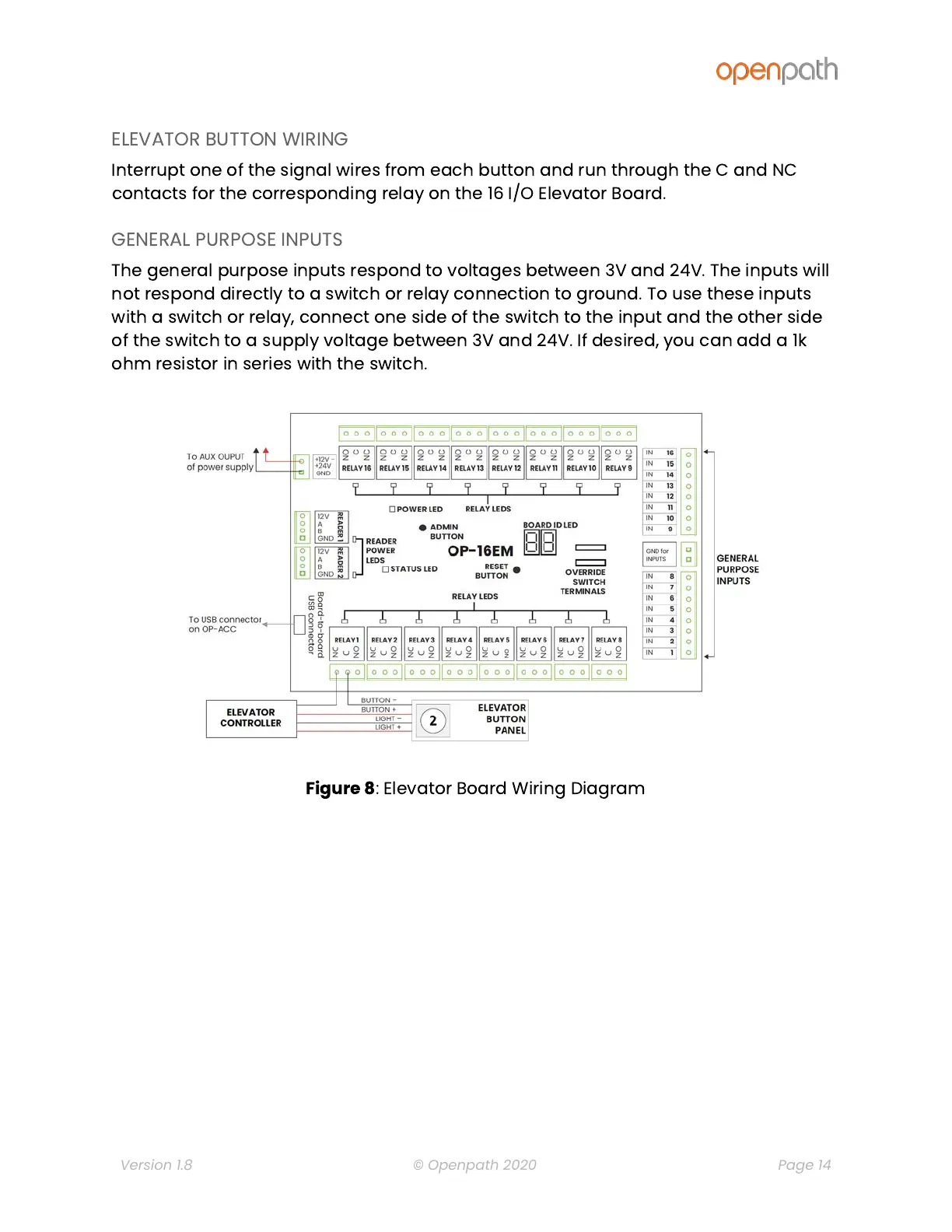

Figure
8
:
Elevator
Board
Wiring
Diagram
