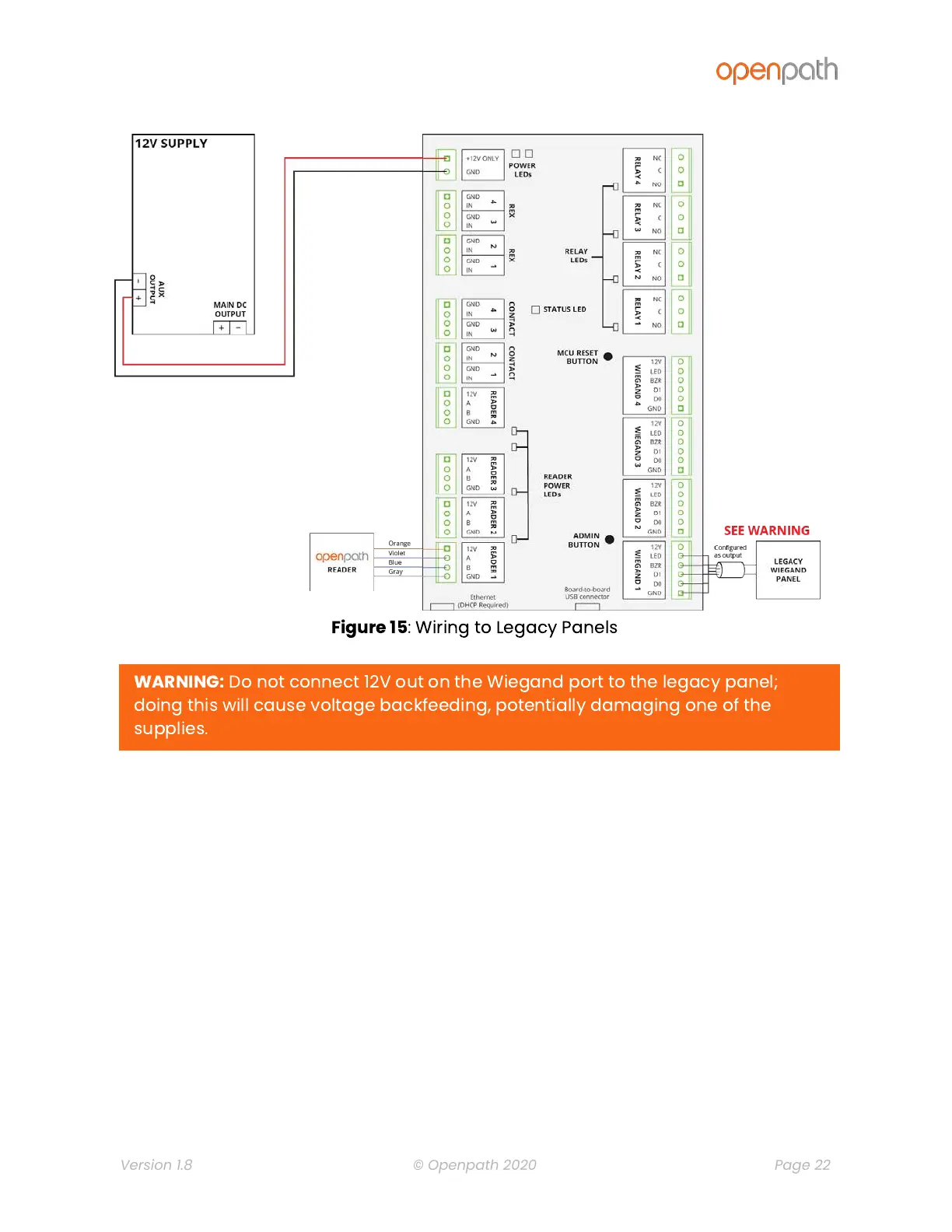

Figure
15
:
Wiring
to
Legacy
Panels
WARNING:
Do
not
connect
12V
out
on
the
Wiegand
port
to
the
legacy
panel;
doing
this
will
cause
voltage
backfeeding,
potentially
damaging
one
of
the
supplies.
