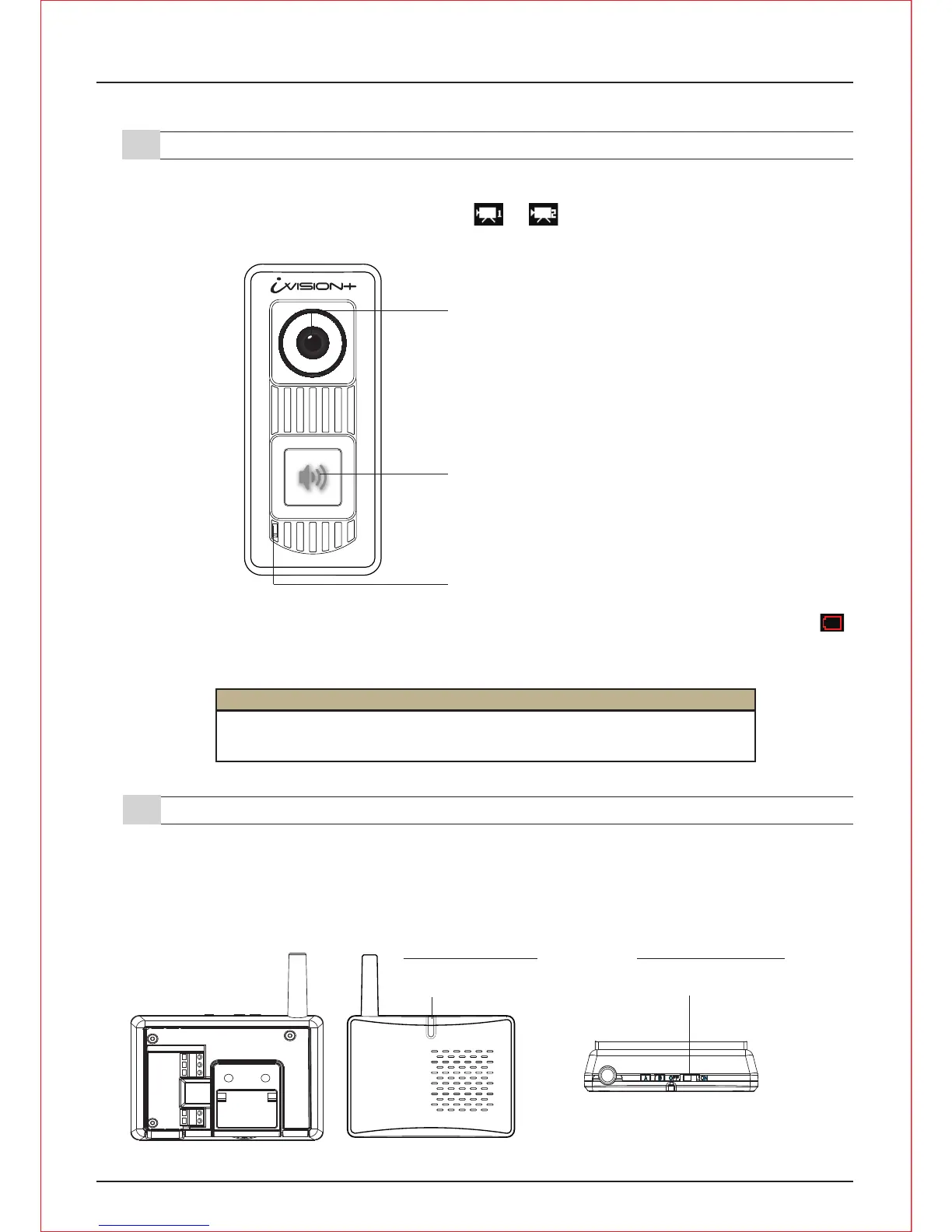

2-2. Door Camera Unit (IVP-DU)
2-3. Gateway Chime Unit (IVP-GU)
Camera Module with IR LEDs
Auto Day and Night(IR) Vision enables
color images in daytime and
black & white images when dark.
MICROPHONE
PUSH button
The button glows with fluorescence
after dark. If the unit powered by an external power,
the button stays illuminated.
The Door Camera Unit is a device that makes a call to the Handheld Monitor Units (IVP-HU) when
the push button is pressed by a visitor. Each iVISION+ system can carry up to 2 units of
Door Camera Units and each is identified by or on Handheld Monitor Units.
Please replace the batteries when Handheld Monitor Units show a low battery status indicator
on upper middle of the screen. The sign indicates that Door Camera Unit has low power supply
from current 3 AA batteries.
The Gateway Chime Unit is an extra chime and an open relay output device for the iVISION+.
IVP-GU is required when expanding the iVISION+ system with another third party equipment
such as a door lock and a garage door activator. IVP-GU also receives a signal from
OPTEX Wireless2000 TD-20U and bridges the signal to iVISION+ system.
Sound ON/OFF Switch
This switch is for turning
ON/OFF a speaker module.
Do not mix an old and a new battery in this unit. Do not use Lithium batteries.
Leakage or explosion can occur and may lead to severe damage and injuries.
Caution
The Gateway Chime Unit always remain
ON while power is being supplied.
GREEN: Sensor Alert Disabled
RED: Sensor Alert Enabled
Status Indicator LED
