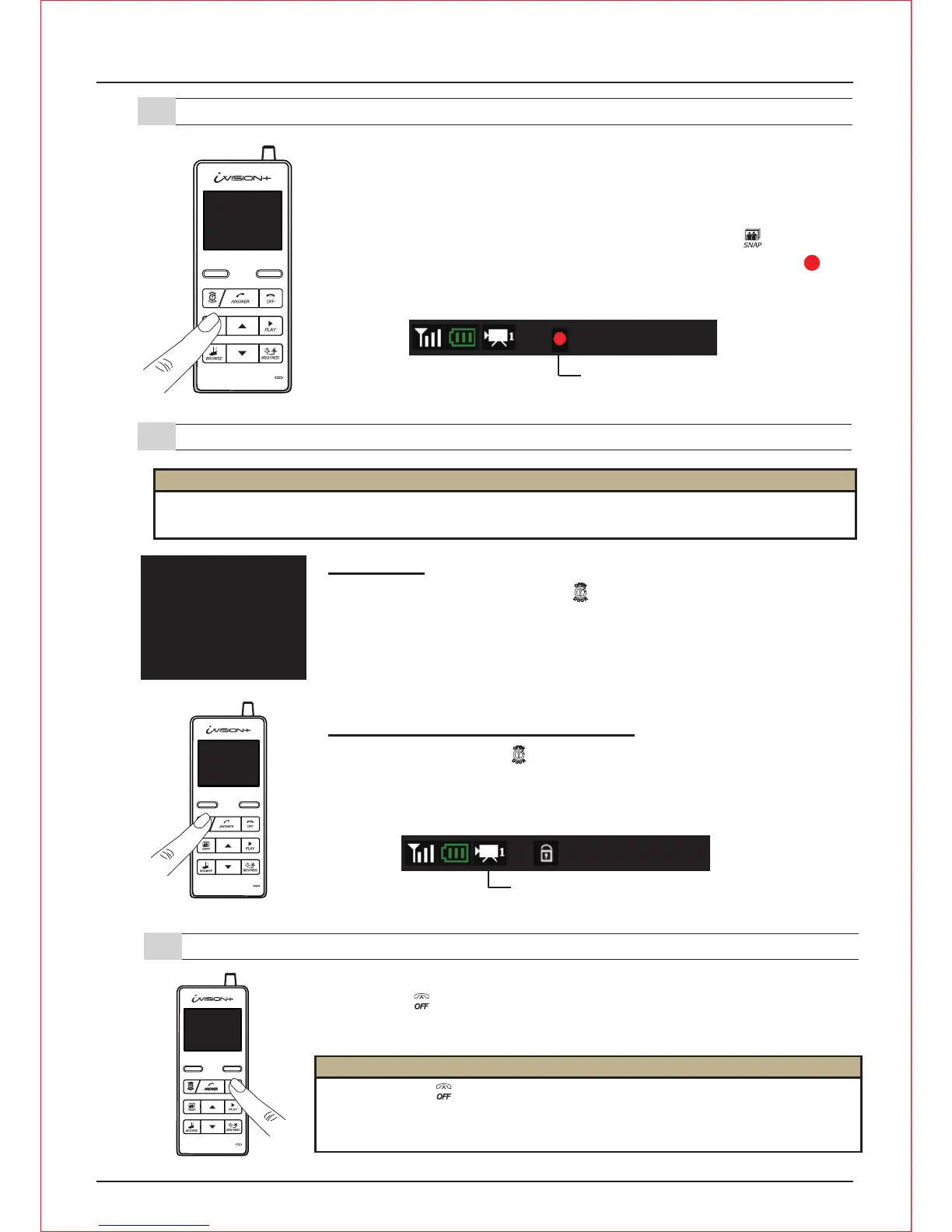

4-2. Using SNAP function to capture an image

4-4. Ending ANSWER / BROWSING MODE (Returning to IDLE MODE)

Press OFF button to terminate ANSWER or BROWSING MODE

and return to IDLE MODE.

4-3. Operating OPEN DOOR function

the Handheld Monitor Unit can capture an image from a Door

Camera Unit and stores up to 500 images in an internal memory.

20XX/XX/XX 11:59AM

During ANSWER or BROWSING MODE, press SNAP to record

a still image from the Door Camera Unit. An REC Indicator in red

will appear on the top of the screen for 1 second.

REC Indicator

OPEN DOOR function is only available if iVISION+ system is expanded with

a Gateway Chime Unit(IVP-GU) and properly connected to a third party equipment.

OPEN DOOR

DOOR1 DOOR2

Pressing OPEN DOOR button will bring an OPEN DOOR menu

on the screen. Select DOOR1 or DOOR2 to activate a designated

output relay on IVP-GU. Two short beeps will confirm the

signal transmission. Return to IDLE MODE by pressing OFF.

IDLE MODE

During ANSWER/BROWSING MODE

Pressing OPEN DOOR button while answering a call or

browsing directly activates the IVP-GU output relay designated

to a Door Camera Unit. This is indicated on the top of the screen.

20XX/XX/XX 11:59AM

ANSWER/BROWSING MODE

Indicator for a Door Camera Unit in operation

Pressing OFF button for more than 3 seconds will turn off the

power of the Handheld Monitor Unit. When the power is turned

off the unit will not respond to a call from a Door Camera Unit.

CAUTION
