Optex VX-402 - Settings and Adjustments; Detection Length Adjustment

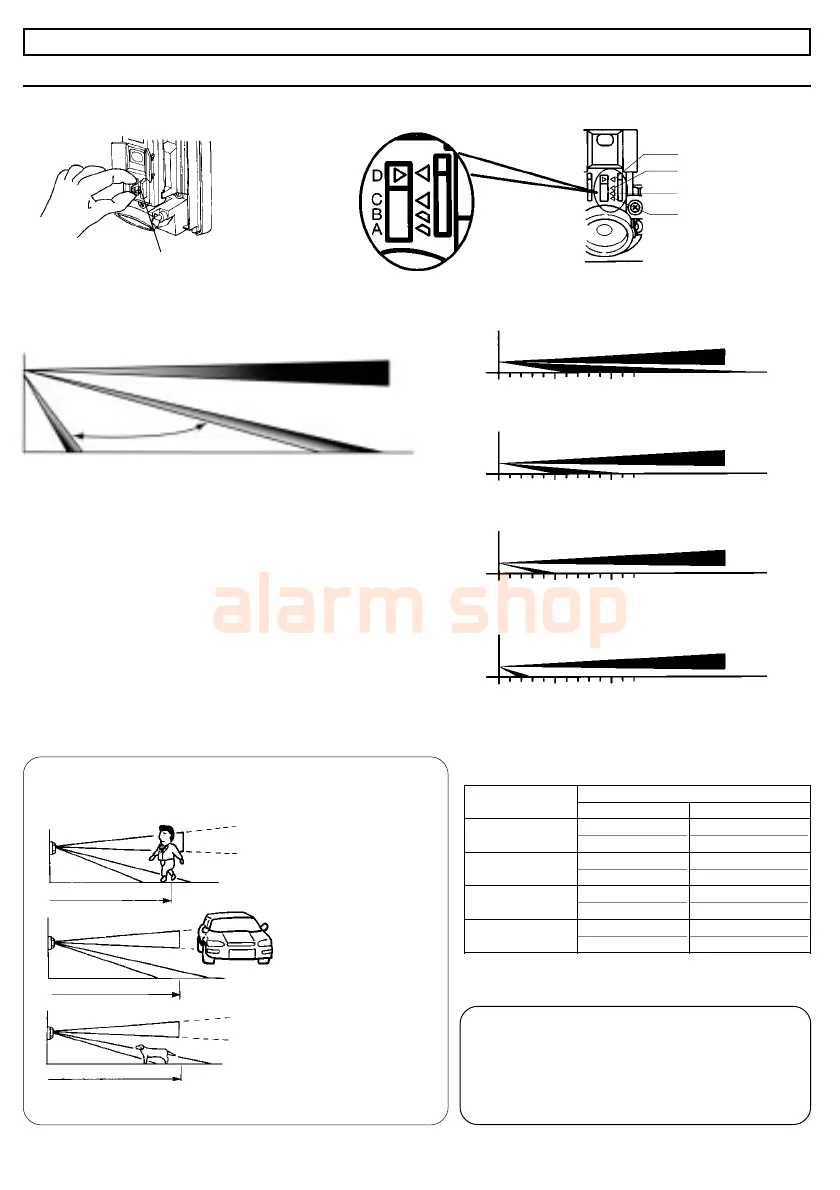

6-1.Detection Length Adjustment
Length of Lower Detecion Area decides
detection length
The upper detection area stays parallel to the
ground at all time. The lower detection area
moves as shown above depending on the switch
position. So, length of the detection is limited by
the length of lower detection area, since both
upper & lower detection area have to be blocked
at the same time to activate the sensor.
6.SETTING & ADJUSTMENTS
Press and slide the Detection Length Adjustment Switch to the desired position.
Detection Length
Adjustment Switch
D
C
B
A
Detection Length setting chart
Instration Height=1m(3.3ft)
*The maximum detection length may vary as
above due to environmental thermal conditions.
IMPORTANT
If there is a traffic near the dettection area, please
adjust detectiion 1.5m to 2.0m(5ft to 7ft) away from
movements.
(See section 8 OPERATION TEST on page 13
for the details.)
Side view of detection pattern
D
A
Adjustable zone.
POSITION B
0 5 10 12 m
0 10 20 30 40 (ft)
POSITION C
POSITION D
POSITION A
0 5 10 12 m
0 5 10 12 m
0 10 20 30 40 (ft)
0 10 20 30 40 (ft)
0 5 10 12 m
0 10 20 30 40 (ft)
Only lower
detection area
is blocked
NO
Detection
NO
Detection
Both upper and
lower detection
area are blocked!
Detection!
Detection Length
Detection Length
Only upper
detection area
is blocked
Detection Length
IMPORTANT
BOTH DETECTION AREA MUST BE BLOCKED FOR DETECTON
-7-
1m
(3.3ft)
1m
(3.3ft)
1m
(3.3ft)
1m
(3.3ft)
Standard
12.0 10.0 - 15.0
(40.0) (33.3 - 50.0)
8.0 6.0 - 10.0
(26.7) (20.0 - 33.3)
5.0 4.0 - 5.5
(16.7) (13.3 - 18.3)
2.0 1.5 - 2.5
(6.7) (5.0 - 8.3)
m (ft)
C
D
*
MAX DETECTION LENGTH
A
B
POSITION
