Installation

DSR-SERIES has install Wizard system which allows users

to set up the DSR-SERIES setting only minimum

configuration for viewing channels.

This “installation” is for the advanced user or installer to set

up in detail or Up-grade the DSR-SERIES as their favorite

way for advanced function.

This menu contains of 5 major sub-menus as below

(Figure3);

• Antenna Setting

• Manual Search

• Satellite Search

• Blind Scan

• Reset Default

During the installation the OK button always confirms a selection within these menus. Use the

CH▲▼ buttons to move upwards and downwards from one line to another line. You can

always go back to the previous menu by selecting EXIT.

Antenna Setting

Press MENU button, use the CH▲▼ to select “Installation” and press OK button, use the

CH▲▼ to select “Antenna Setting”. Press OK button then Sub-menu box will be appeared

(Figure 4).

In this menu ,you can select the satellite and LNB

settings by using ◄ ► buttons

And use the ▲▼ buttons to select the item. Press

the OK buttons to confirm and EXIT buttons to exit.

• SAT: Press the ◄ ► buttons to select the

Satellite Name.

• LNB1: Select the LNB low local frequency.

• LNB2: Select the LNB high local

frequency.

• 22kHz: When you use a Dual LNB or two

antennas connected to a 22KHz switch

box, make 22KHz switch ON or OFF to

select LNB or antenna.

• DiSEqC Mode: Press the ◄ ► buttons to select the DiSEqC Type DiSEqc1.0,

DiSEqc1.2.

• Manual Search: Press OK key searches channels from a specific transponder.

• Sat Search: Press OK key searches channels from a satellite.

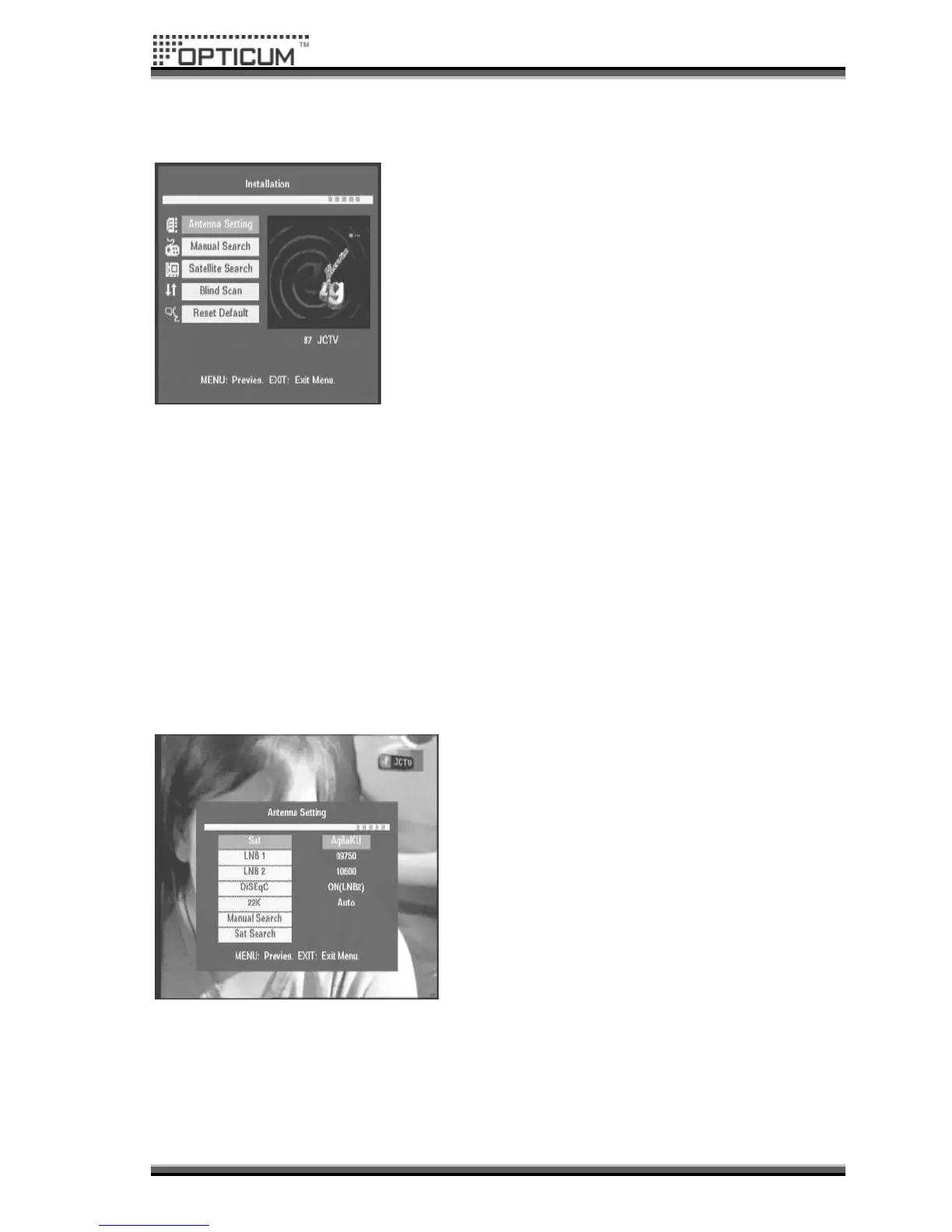

Figure 1

Figure 3
