Version 3.1.8 dated 2015-1-27Page 12 Original operating instructions
BF20VUS
WARNING!
The separating protective equipment which is made available and delivered together
with the machine is designed to reduce the risk of workpieces or fractions of them which
being expelled, but not to remove them completely. Always work carefully and observe
the limit values of your chipping process.

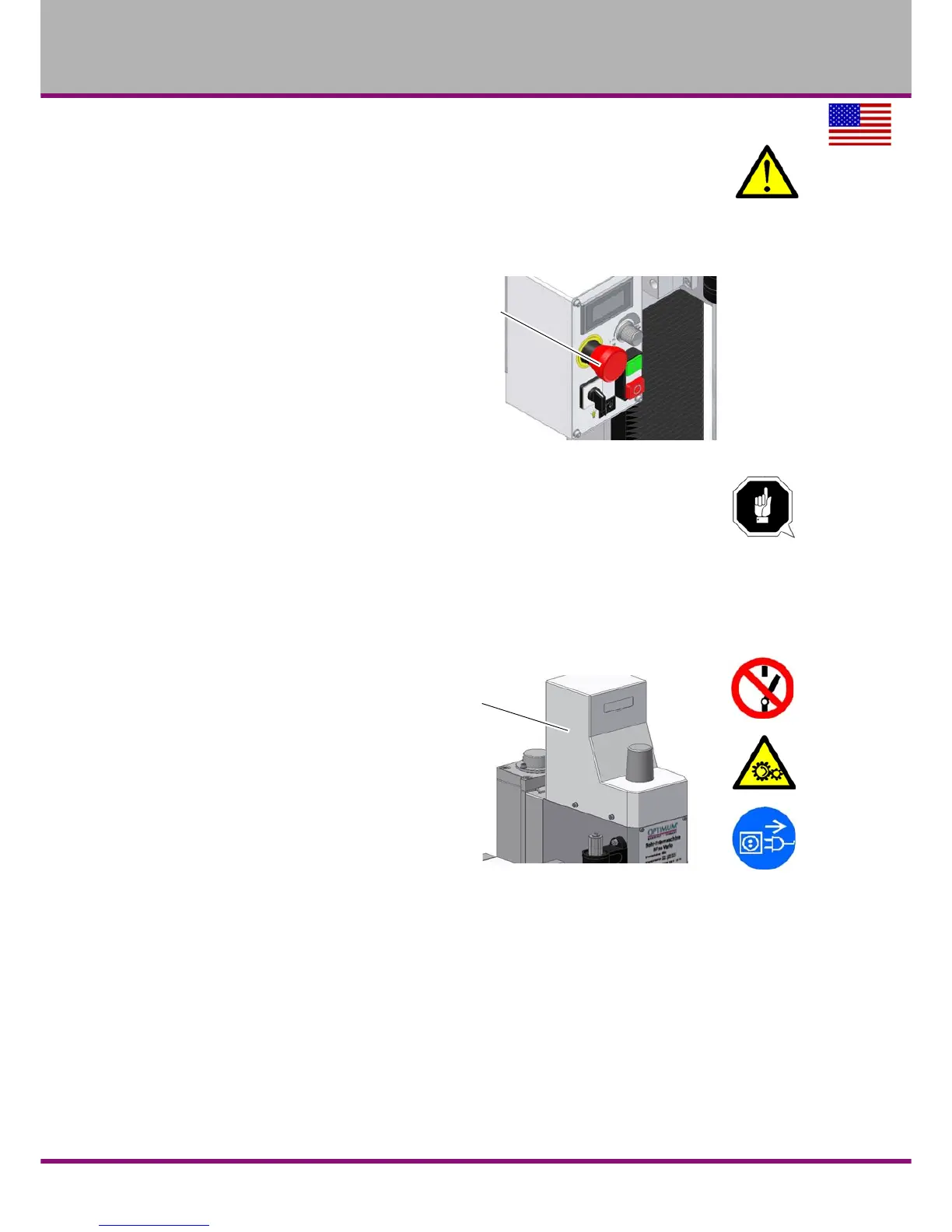

1.9.1 EMERGENCY-STOP push button
The EMERGENCY STOP push button
switches off the mill drill.
"Switching on the mill drill“ on page
25
Fig.1-1: EMERGENCY-STOP push button
ATTENTION!
The emergency stop push button stops the mill drill the moment it is activated.
Press the EMERGENCY STOP push button only if there is a risk! If this push button is
actuated in order to switch off the mill drill in the standard operation the tool or
workpiece might get damaged.
After having actuated the EMERGENCY STOP, turn the knob of the particular push button to
the right in order to restart the machine.
1.9.2 Protective cover
The drilling / milling head is equipped
with a protective cover.
WARNING!
Only remove the protective cover
when the mains plug of the mill drill
is disconnected.
Fig.1-2: Protective cover
