OPTIMUM
MASCHINEN - GERMANY
Version 3.1.8 dated 2015-1-27 Page 13Original operating instructions
BF20V US
1.9.3 Separating protective equipment
Adjust the protective equipment to the
correct height before you start working.
To do so, detach the clamping screw,
adjust the required height and re-tighten
the clamping screw.
A switch is integrated in the fixture of the
spindle protection which monitors that
the cover is closed.
INFORMATION
You cannot start the machine if the pro-
tective guard is not closed.

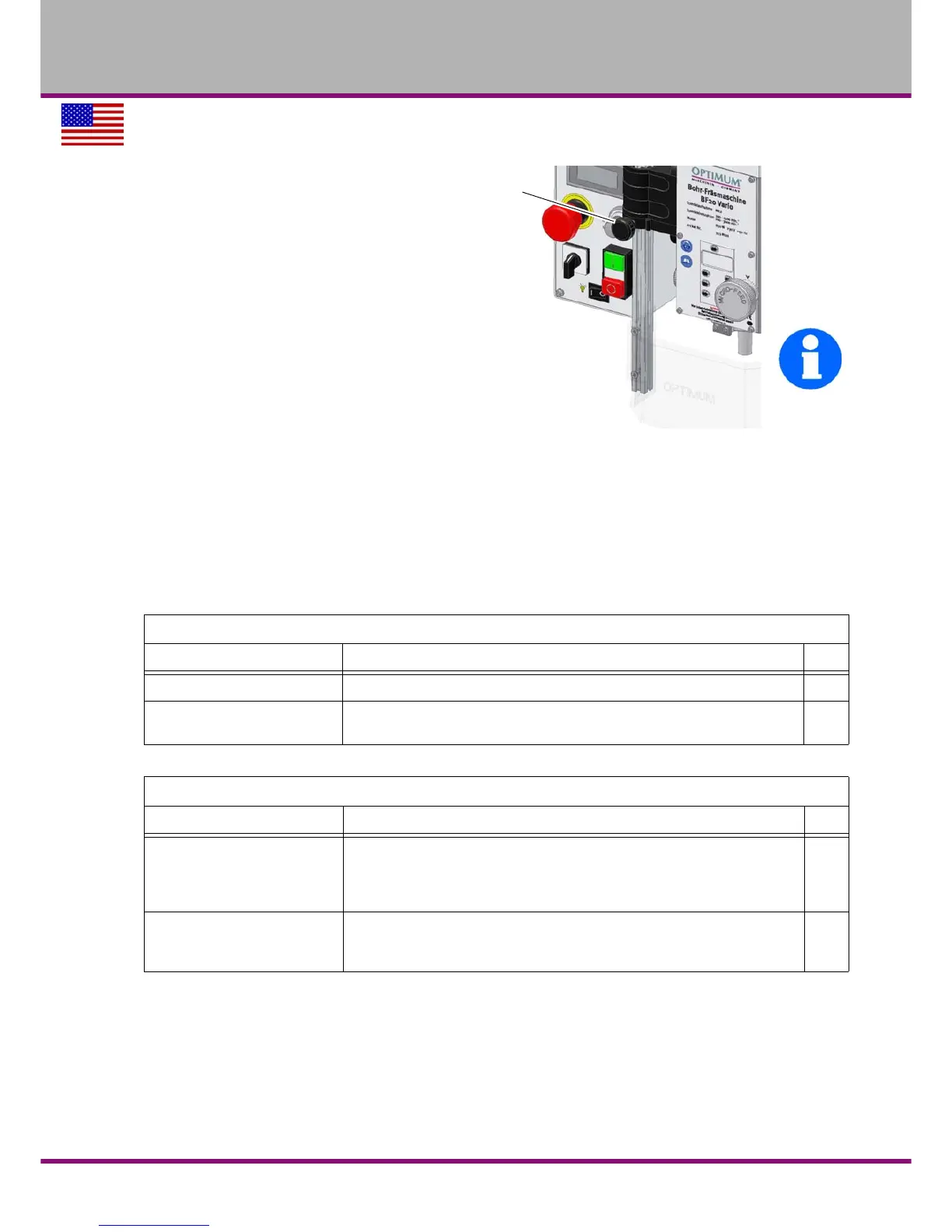

Fig.1-3: Protective guard
1.10 Safety check
Check the mill drill in regular intervals.
Check all safety devices
before each operation,
once a week (with the machine in operation),
after every maintenance and repair work.
General check
Equipment Check OK
Protective covers Mounted, firmly bolted and not damaged
Signs,
Markings
Installed and legible
Functional check
Equipment Check OK
EMERGENCY-STOP push but-
ton
When the EMERGENCY-STOP button is activated, the mill drill should
switch off. Make sure that it is only possible to restart the machine if the
EMERGENCY STOP push button is unlocked and the ON switch was acti-
vated.
Separating protective equip-
ment around the drilling milling
spindle
The mill drill may switch on only when the safety device is closed.
