The spindle bearing is lifetime-lubricated. It is not necessary to lubricate it again.
5.3 Repair
Repairs must be carried out only by qualified technical staff; and must follow the instructions
and guidelines given in this manual. Should technical assistance be required, contact LDS
Industries at (630) 785-6437.
Optimum Maschinen - Germany and LDS Industries are not liable for, nor do they guarantee
against, damage or operating malfunctions resulting from alteration, abuse, lack of main-
tenance or this product’s use for other than its intended purpose. Failure to read and follow this
operating manual is not covered.
For repairs only use
Proper and suitable tools,
Parts purchased from Optimum, or its authorized agent.
every six
months
Gear drill-mill head
Lubricating
Turn the drill-mill head as described under "Swivel-
ling the mill drill head“ on page 32 completely by 90° to
the right.
Check if the clamping screws are firmly tightened as
described under
"Swivelling the mill drill head“ on
page 32 and that the drill-mill head can not independently
tilt.
Disassemble the cover plate at the rear.
Lubricate the gearwheels. "Service material“ on page
16

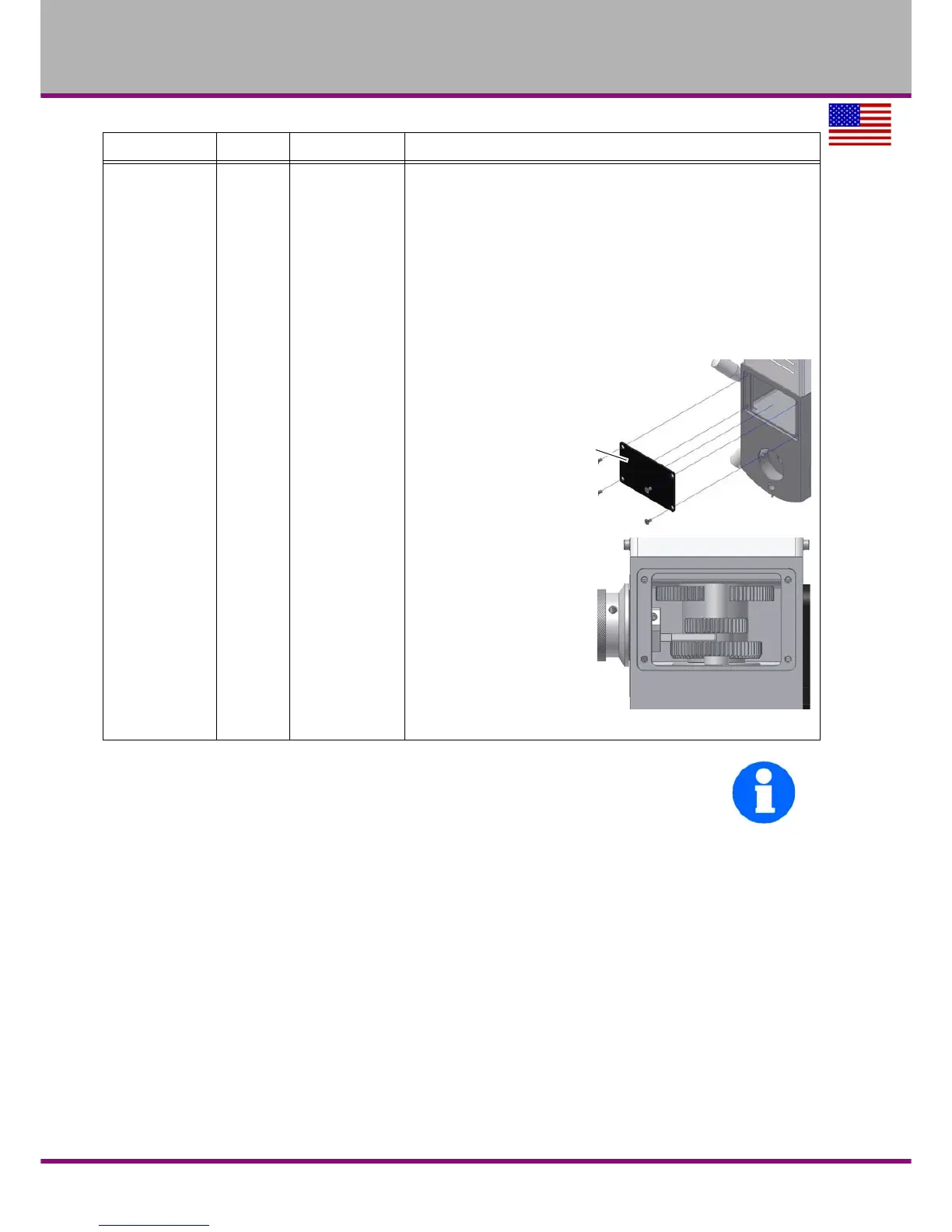

Fig.5-5: Rear
