Version 3.1.8 dated 2015-1-27 Page 35Original operating instructions
BF20V US
As required
Machine illumination
Replacing the
halogen lamp

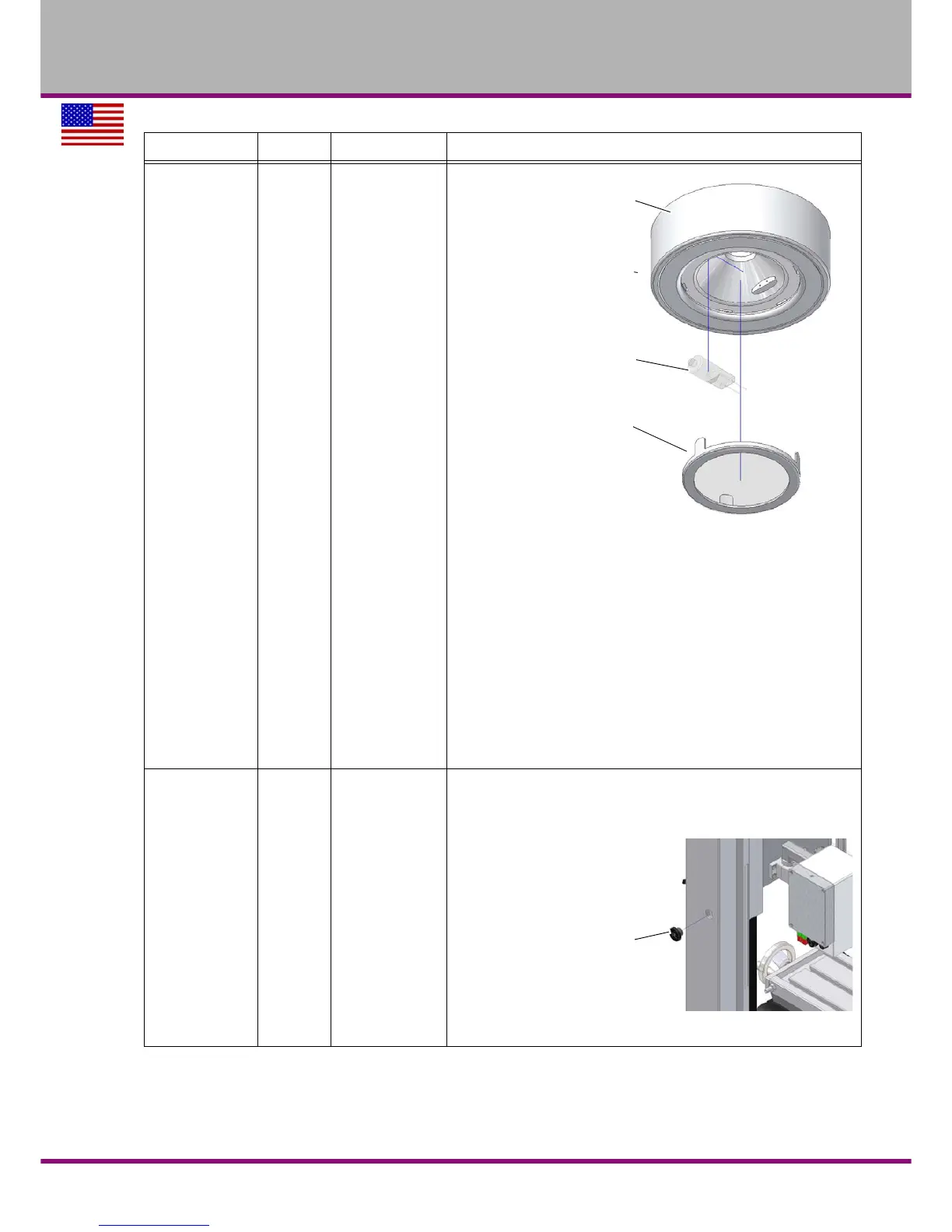

Fig.5-3: Replacing the halogen lamp
 Tilt the mill head a little to the right. This way you can
easily remove the lamp cover in order to allow replacing
of the halogen lamp.
 Plug a small screw driver into the recess between the
lamp holder and the lamp cover.
 By slightly turning the screw driver you can remove the
lamp cover.
 Pull the halogen pin base lamp with a cloth and replace
the halogen lamp.
Type:
Halogen pin base lamp, Osram 12V - 10W, base G4
every six
months
Spindle and spindle nut Z axis
Lubricating
 Open the plug.
 Crank the milling head into the suitable height.
 Oil or grease the spindle nut and spindle.
Fig.5-4: Column
Interval Where? What? How?
Lamp holder
Halogen pin base lamp
Lamp cover
Plug
