Assembly
OPTIMUM
MASCHINEN - GERMANY
30 / 11 / 2007Page 12 Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB

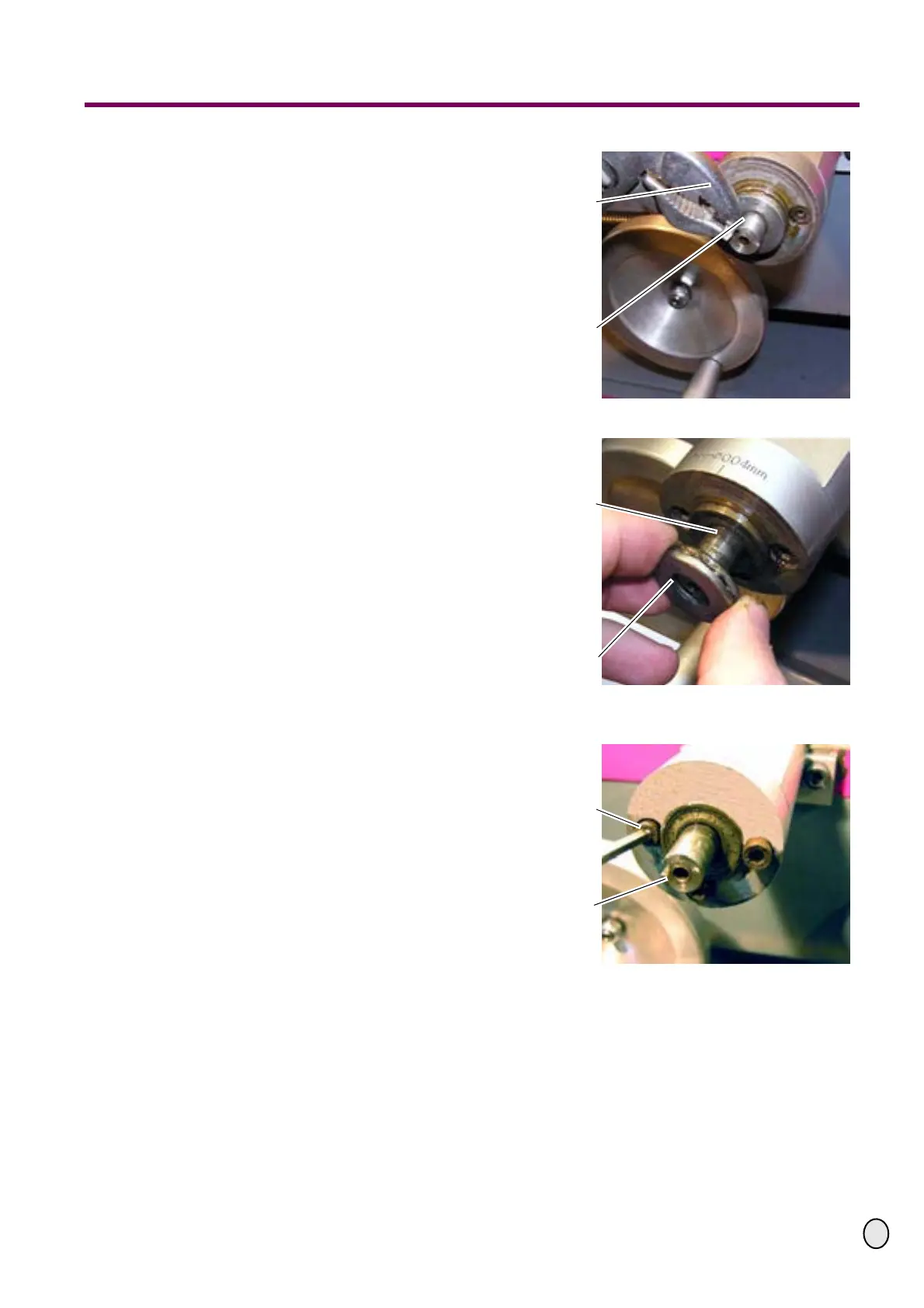

£ Pull off the feather key from the
spindle with tongs.
Illustr.: 4-10: Remove the feather key
£ Pull off the first bearing of the spin-
dle completely.
Illustr.: 4-11: 1st bearing of the spindle
£ Unscrew the 3 fastening screws of
the graduated collar.
£ Pull off the graduated collar from the
spindle.
Illustr.: 4-12: Pillow block X axis
Tongs
Feather keys
Spindle compound
slide
1st bearing
Fastening screw
Graduated collar of
the X axis
