Assembly
30 / 11 / 2007 Page 13Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB

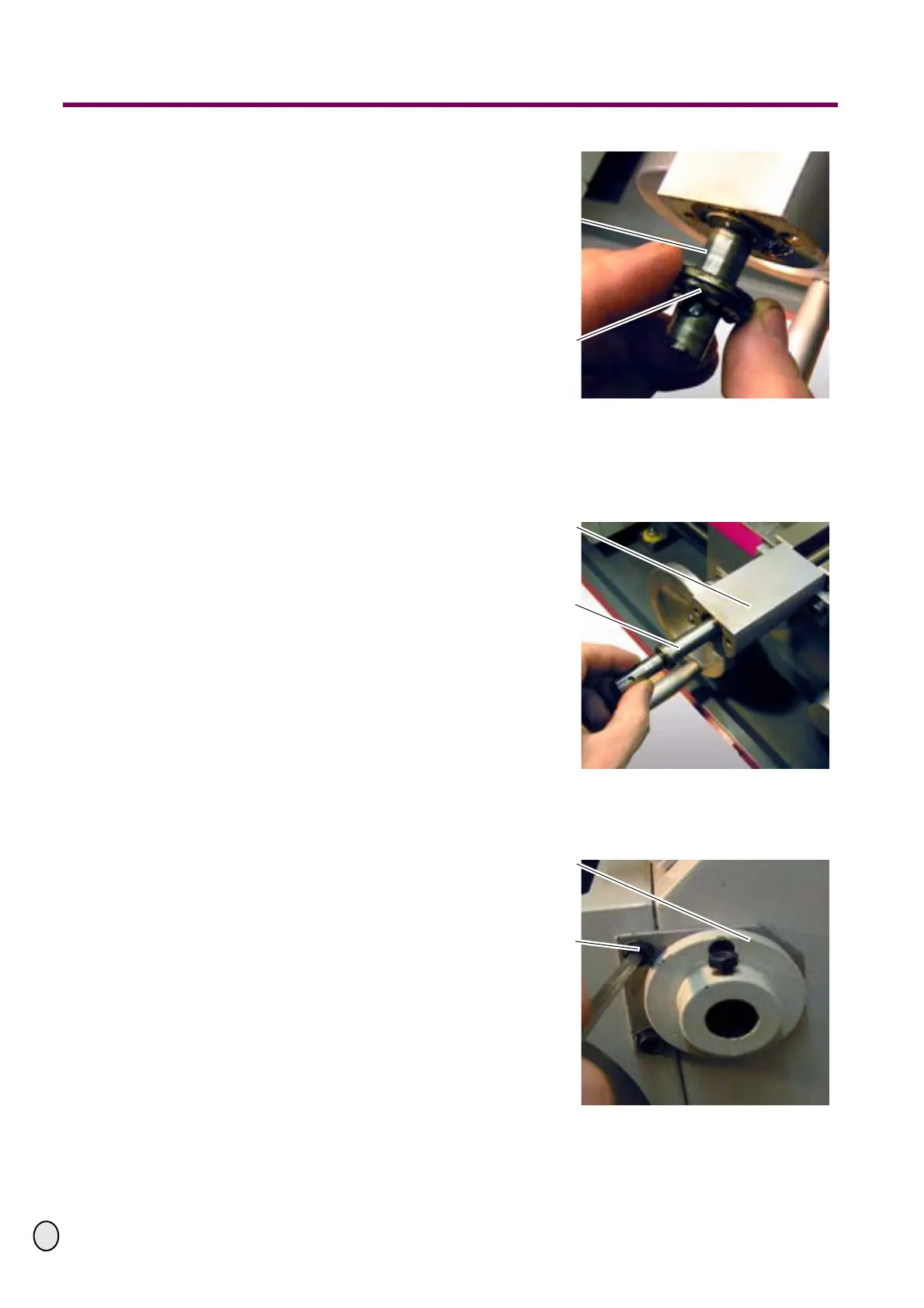

£ Pull off the 2nd bearing of the spin-
dle to the back.
Illustr.: 4-13: 2nd bearing of the spindle
£ Remove the spindle of the X axis
(compound slide) from the pillow
block.
£ If the spindle clamps, just turn it a lit-
tle when pulling it off.
Illustr.: 4-14: Spindle X axis
£ Remount the fixture of the lathe
chuck protection on the machine.
Illustr.: 4-15: Fixture lathe chuck protection
Spindle X axis
Bearing of the spindle
Pillow block
Spindle X axis
Fixture of lathe chuck
protection
Fastening screws
