Assembly
OPTIMUM
MASCHINEN - GERMANY
30 / 11 / 2007Page 14 Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB
£ Assemble the lathe chuck protec-
tion.

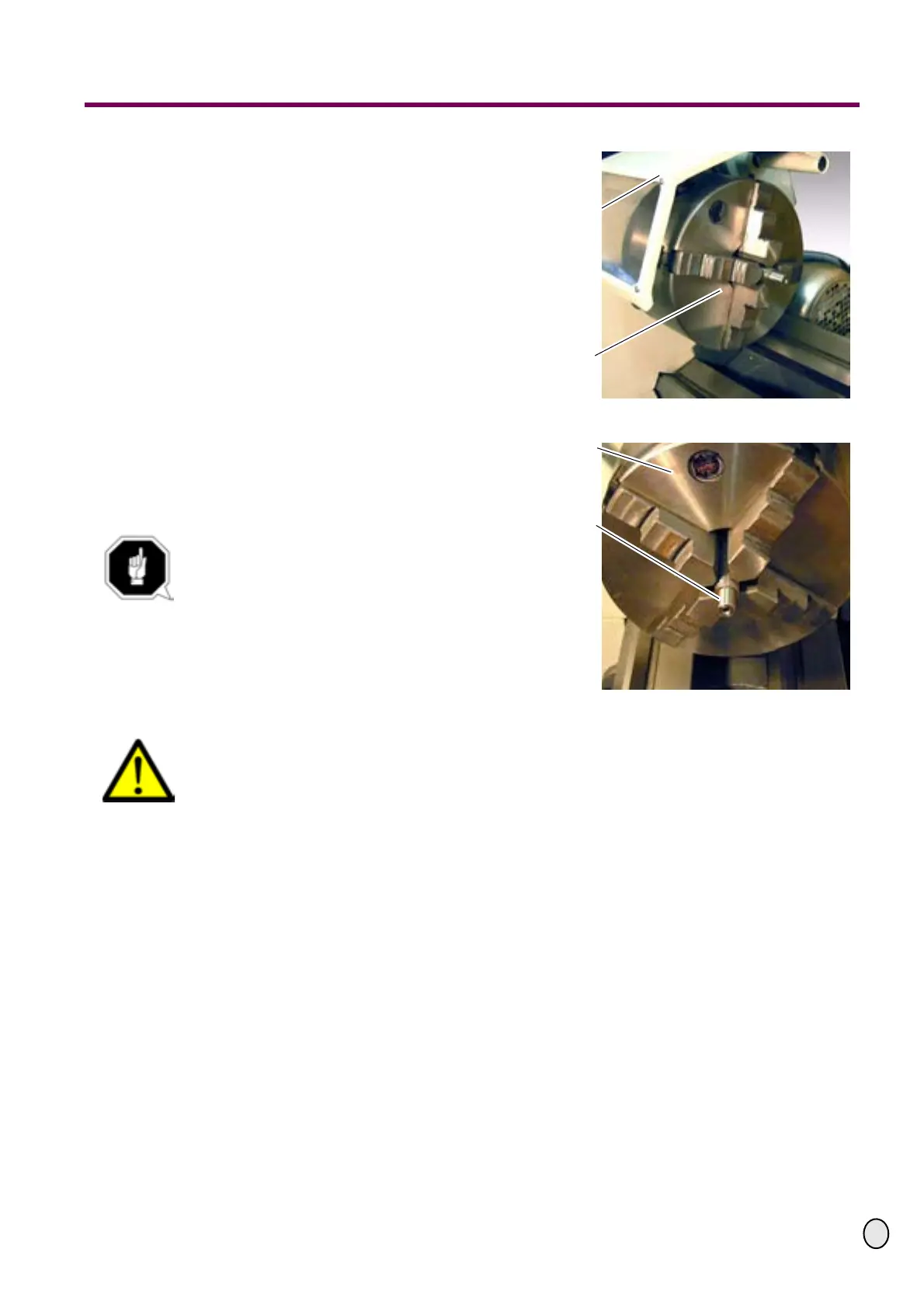

Illustr.: 4-16: Lathe chuck protection
£ Tense the spindle of the X-axis with
the thread onto the lathe chuck. Do
not tense it too firm as otherwise the
thread might be damaged.
CAUTION!
Make sure that the shaft is running
true, as otherwise the shaft exten-
sion might be out of true which
might cause malfunctions.
Illustr.: 4-17: Spindle in lathe chuck
CAUTION!
For the following works the machine may be connected to the power supply.
Lathe chuck protec-
tion
Lathe chuck
Lathe chuck
Spindle X-axis
