Assembly
30 / 11 / 2007 Page 23Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB

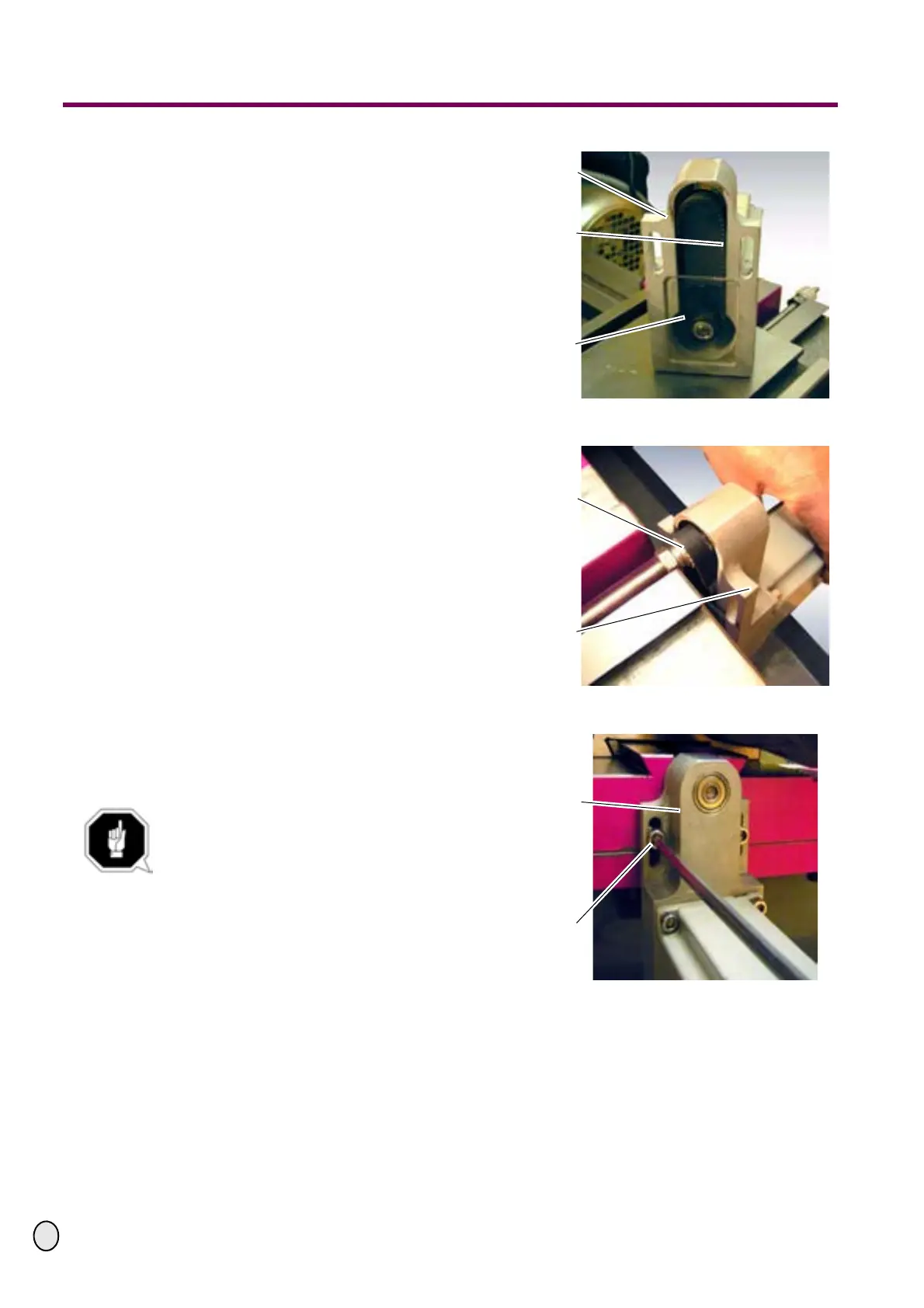

£ Insert the toothed belt (part 14) into
the housing.
£ Insert the cover plate (part 10) in the
housing.
Illustr.: 4-42: Insert parts in the housing
£ Mount the housing with the toothed
belts as illustrated.
Illustr.: 4-43: Add the housing
£ Tighten the housing (part 10) with
hexagon socket screws (part 21)
(M6x15).
CAUTION!
When fastening slightly turn the
handwheel of the compound slide.
The turning guarantees that the
housing will be fastened without off-
setting the pinion.
Illustr.: 4-44: Tighten housing
Housing for X axis
Toothed belt
Cover plate
Pulley spindle elon-
gation
Housing for X axis
Housing X axis
Fastening screw
